SERVICE ADJUSTMENTS (Continued)
PROGRAM CODES
The microprossesor used in this model is a multi-purpose
type and is used in several different models. To ensure
proper operation and the correct features for your particu-
lar model, the Program Codes must be correct.
Note 1. Option Data 1 (NO. 57 OPT) should be decimal 16
(00010000 binary). See page 3 INITIAL DATA SETUP, step
19, for set up procedure. If this program code is wrong the
TV will not operate properly.
Note 2. Option Data 2 (NO. 58 OP2) should be decimal 66
(01000010 binary). See page 3 INITIAL DATA SETUP, step
20, for set up procedure. If this program code is wrong the
TV will not operate properly.
DRIVE / BIAS ADJUSTMENTS
Note 3. Red/Blue Drive Adjustments in Service Menu NO.
72 DRV: Adjust Red and Blue Drive Levels alternately with
1, 3, 7, and 9 keys on the remote control. (See Figure 2.) The
Drive Level adjustment data will be written in the Service
Menu No. 18 and 20 automatically.
1
2
3
4 5 6
7 98
RB(–)
RB(+)
BB(–)
BB(+)
(N/A)
GB(–)
(N/A)
GB(+)
(N/A)
FOR RED BIAS ADJUSTMENT
FOR BLUE BIAS ADJUSTMENT
FOR GREEN BIAS ADJUSTMENT

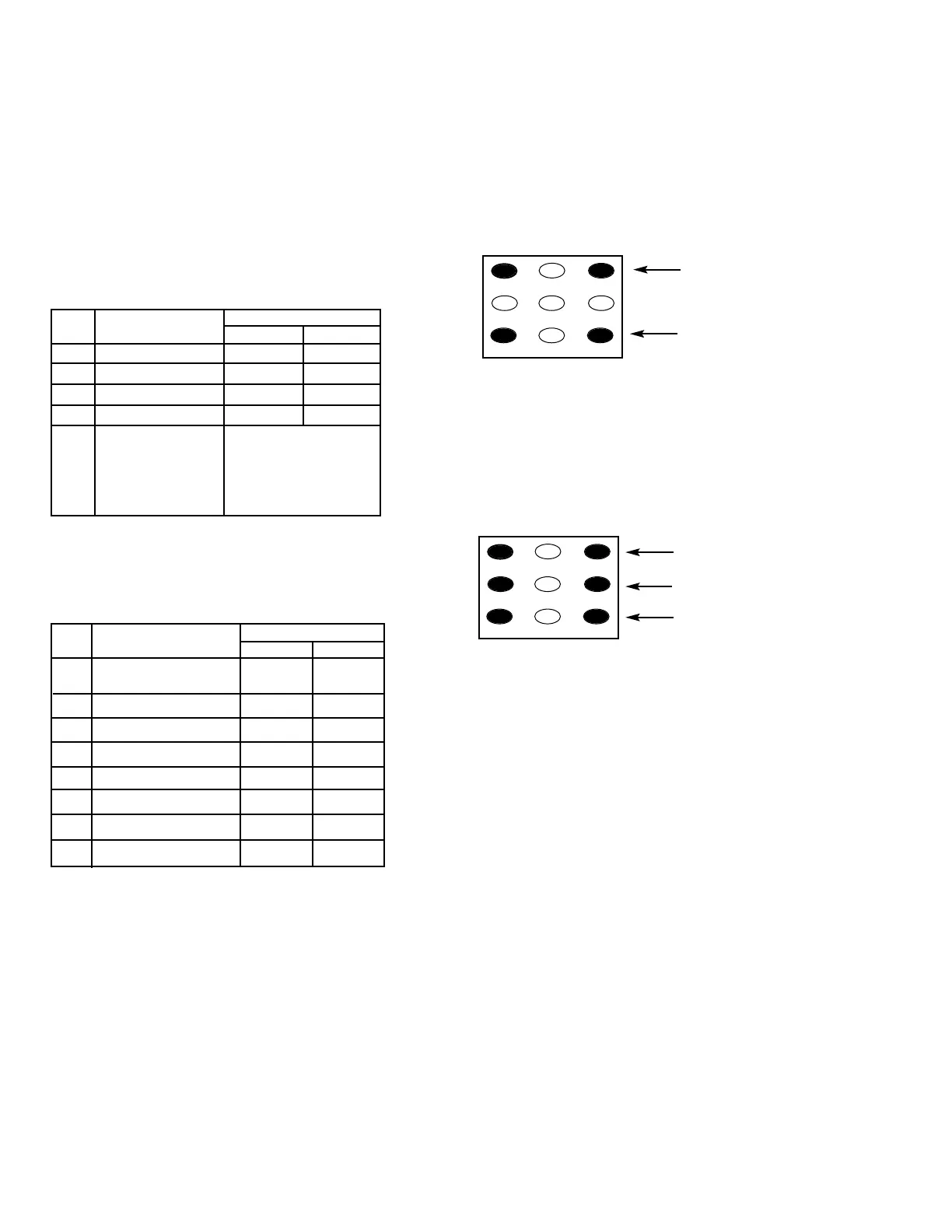

Figure 2.
Figure 3.
1
2
3
4 5 6
7 98
RD(–)
RD(+)
BD(–)
BD(+)
(N/A)
(N/A)
(N/A)
(N/A)
(N/A)
FOR RED DRIVE ADJUSTMENT
FOR BLUE DRIVE ADJUSTMENT
BIT FUNCTION
DATA
01
0 ~ 2 NOT USED — —
3 CLOCK NONE YES
4 COMB FILTER NONE YES
5 NOT USED — —
00: NONE
6, 7 SURROUND
01: YES
10: —
11: —
Note 4. Red/Green/Blue Bias Adjustments in Service Menu
NO. 73: Adjust each Bias Level with 1, 3, 4, 6, 7, or 9 key on
the remote control. (See Figure 3.) The Bias Level adjust-
ment data will be written in the Service Menu No. 15 ~ 17
automatically.
BIT FUNCTION
DATA
01
0
SHIPPING CONDITION
NORMAL COOL
OF COLOR ENHANCER
1 COLOR ENHANCER NONE YES
2 INITIAL CH & XDS NONE YES
3 AUDIO OUT & SP MENU NONE YES
4 PIP NONE YES
5 AV INPUTS 1 SET 2 SETS
6 BASS & TREBLE / TONE BASS & TR TONE
7 NOT USED
——
To Next Page
