POSITIONING THE TV
Do not position the TV in a confined
area. Allow space for normal air
circulation around electronic parts.
Audio/Video In Jacks (AV1 / AV2)
Connect video equipment here (see
pages 6 ~ 7).
Notes: S-Video connection will override
an AV1 video connection.
Audio/Video Input (AV2) and
Component inputs share the
same audio (R/L) input jacks.
S-Video In Terminal
To enhance video detail use the AV1
S-Video jack instead of the AV1 Video jack,
if available on your external equipment. (An
S-Video connection will override connection
to the AV1 video input jack. See page 6.)
Audio Out Jacks
(Fixed / Variable)
Connect external audio equipment
here (see page 8).
Component Video In Jacks
(Component 2, Y, Pb, Pr)
Connect video equipment here (see
page 7).
Note: Audio/Video Input (AV2)
and Component inputs
share the same audio
(R/L) input jacks.

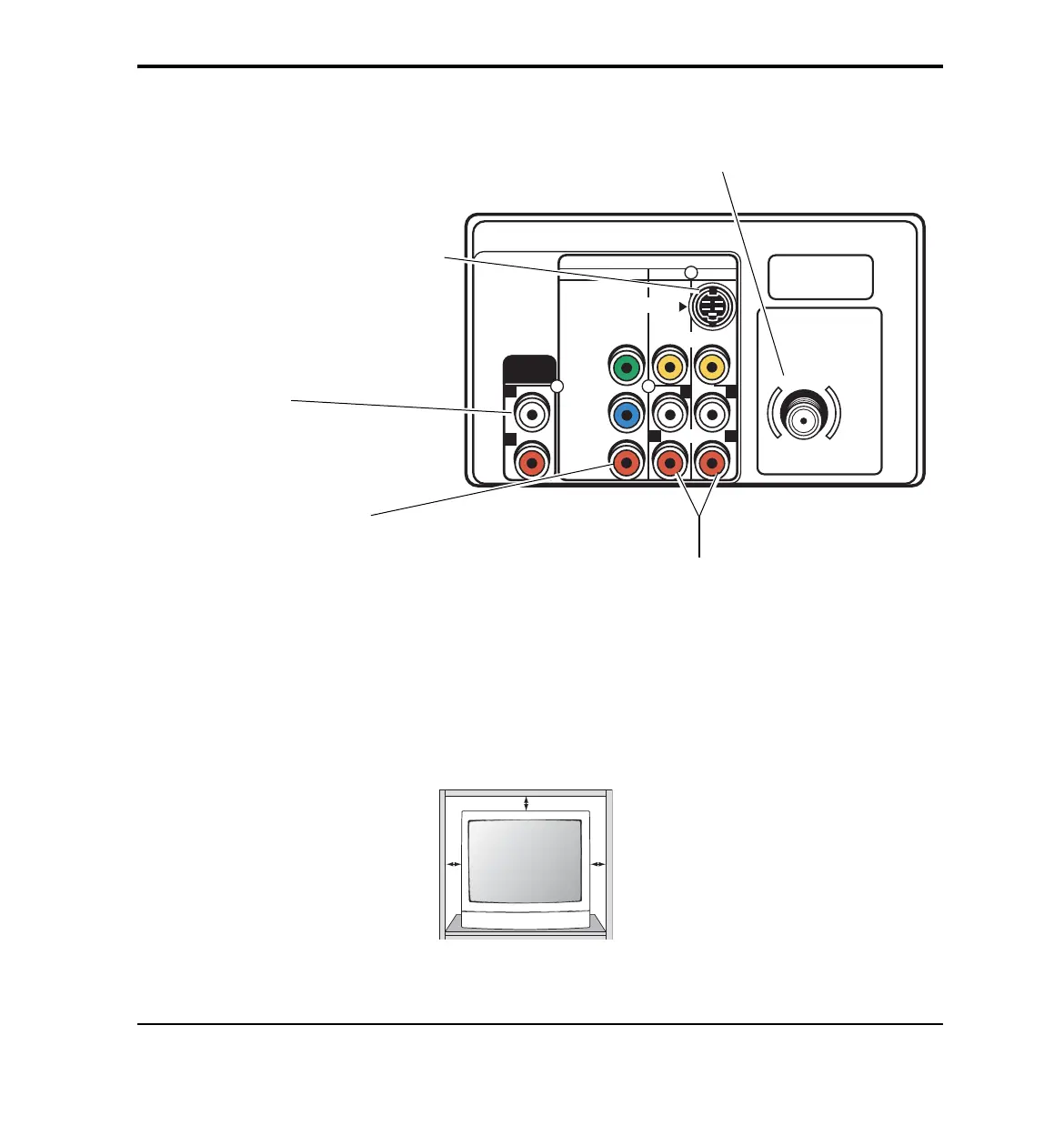

Rear Panel
Rear Panel 5
Cable / Antenna (VHF/UHF)
Terminal (75 ohms input)
