− 6 −
VD-1 PWB
PC-1 PWB
OP-1 PWB
OP-2 PWB
TB-2 PWB
TB-1 PWB
PW-1 PWB
HDD Unit
Stamp 4
Stamp 4
Stamp 1
Stamp 1
Stamp 2
Stamp 2
Stamp 3
Stamp 3
CP-1 PWB
CN409
CN251
2. DISASSEMBLY

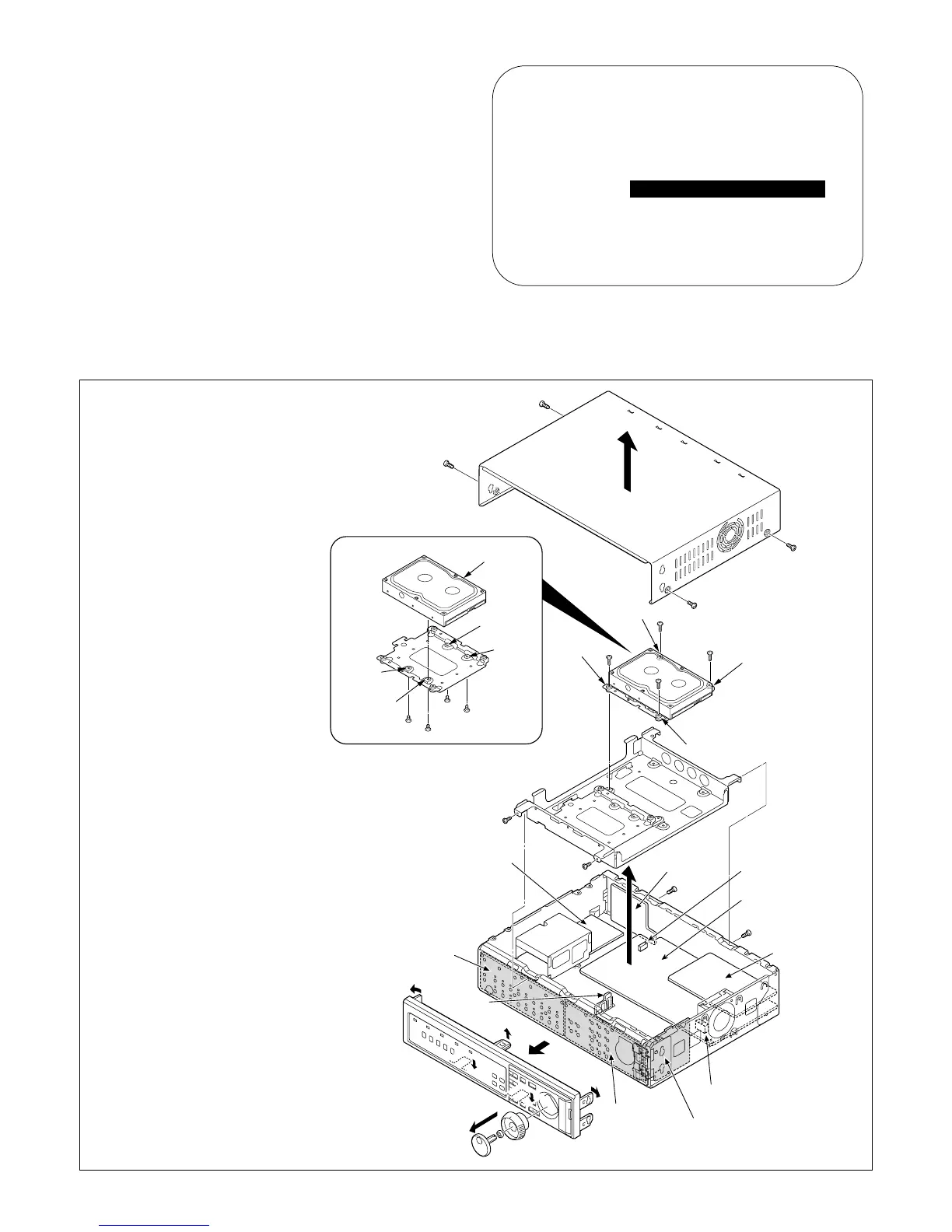

2-1. REMOVAL OF CABINET AND CIRCUIT BOARD LOCATIONS
1. RESETTING THE USE TIME
1.Press the SHUTTLE HOLD button for more than 3 seconds.
DISK1 USE time display reverses.
2.USED TIME display to reset with the JOG dial is chosen.
3.Press the MENU RESET button. Time display resets it.
4.When it is finished, the EXIT/OSD button is pressed.
NOTE:
1. Please carry out the screw stop
of the attachment to HDD in the
order of the number stamped
on the HDD holder.
2. Please attach the 1st set of an
HDD unit in the backside of a
product.
3. Harness should use the socket
of an end.
< POWER FAILURE/USED TIME >
# 010 01-03 03:42 01-03 17:59
POWER FAILURE FA I LURE RECOVER
USED TIME DISK1 USE : 00000H
DISK2 USE : - - - - -H
FIRMWARE : MAIN 1.00-99 / SUB 0.51-02
POWER : 00000H
01-03 03:33 01-03 03:34
01-02 05:43 01-03 03:32
01-01 16:06 01-01 20:59
To Next Page
