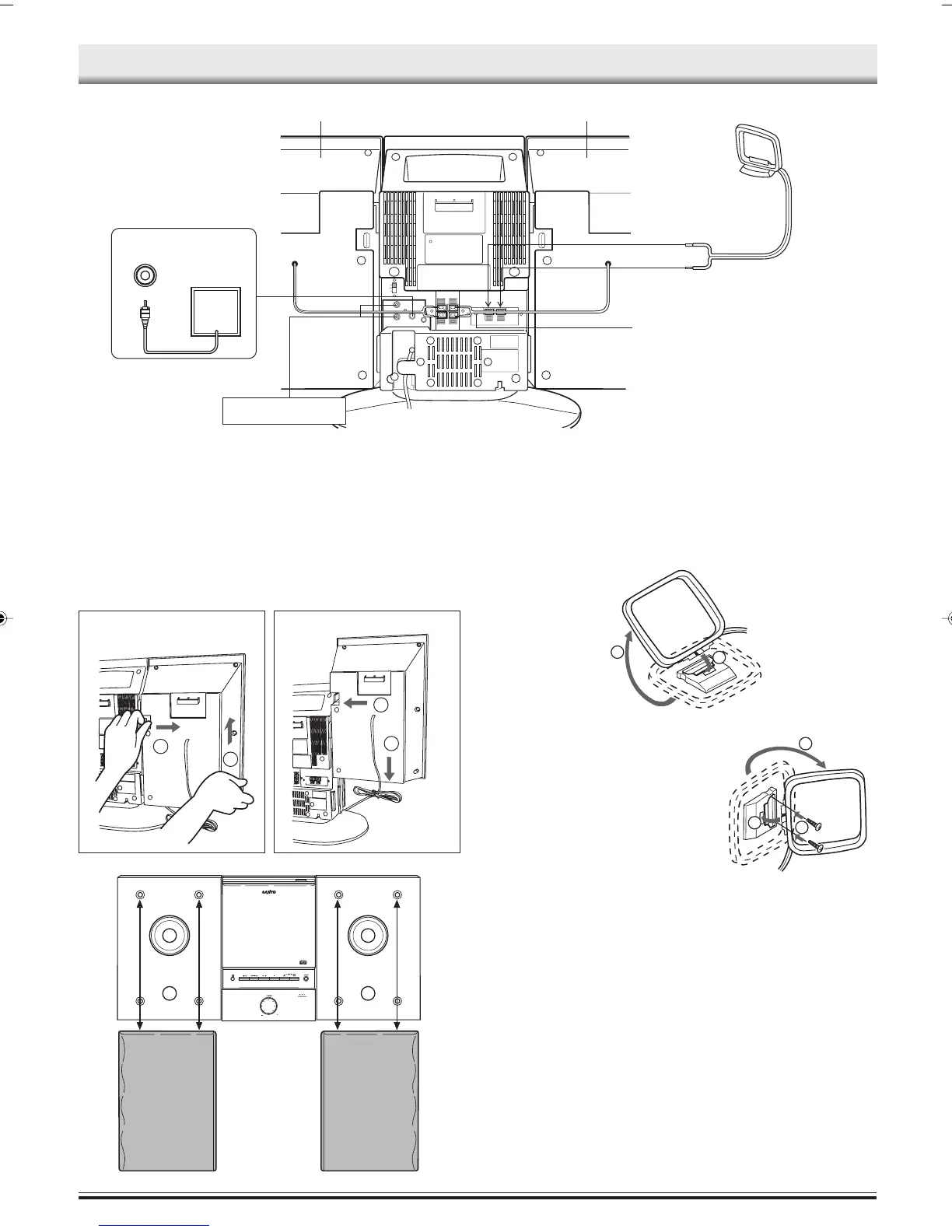

CONNECTIONS
-2-
Note:
- Do not connect the mains lead to an AC outlet until all connections
have been made.
- The system is not completely disconnected from the mains when
the z/ON button is set to the z position.
Speakers
To achieve proper stereo reproduction, identical connections must be
made at the speakers and this unit.
Connect the speaker wire with the stripe to the red SPEAKERS
terminal (+) and the other wire to the black terminal (–).
Note: You can attach and detach the speakers easily as follow:
To detach the speaker enclo-
sures
To attach the speaker enclo-
sures
If desired, the speaker grills can be removed as shown.
Aerials
In areas close to a transmitter the simple indoor aerial is sufficient to
receive broadcasts. Extend the aerial wire as straight as possible and,
while listening to the sound from the system, secure it in a position
which yields minimal distortion and noise.
AM loop aerial
Assemble the loop aerial as shown in figure.
Unwind the aerial wires, then connect
them to the AM LOOP terminals. Place
the loop aerial in a position which yields
the best AM reception, or attach it to a
wall or other surface as shown in figure.
Note:
To minimize noise, the speaker, mains
and any other leads should not come
close to the FM indoor or outdoor aerial
lead and AM loop aerial. Do not place
the aerial leads close to the system.
Subwoofer output socket (SUB WOOFER OUT)
Connect the amplified subwoofer (not supplied) to the SUB WOOFER
OUT socket.
Auxiliary equipment input/output socket (AUX)
Connect an audio cable (not supplied) from the audio output or input
socket of the Auxiliary equipment to the AUX socket.
Headphones
Connect a pair of stereo headphones with miniplug (not supplied) to
the PHONES socket for monitoring or for private listening. The speak-
ers are automatically disconnected when headphones are connected.
1
2
1
2
3
Screws (not supplied)
AM loop aerial
AUX
IN
OUT
L
R
AUX
SUBWOOFER
OUT
PHONES
SPEAKERS
3Ω MIN
R L
AM LOOP
R ch speaker L ch speaker
Auxillary equipment
To an AC outlet
Amplified Subwoofer
(not supplied)
SUB WOOFER
OUT
FM aerial
DTA-200/UK 5/25/04, 9:36 PM3
