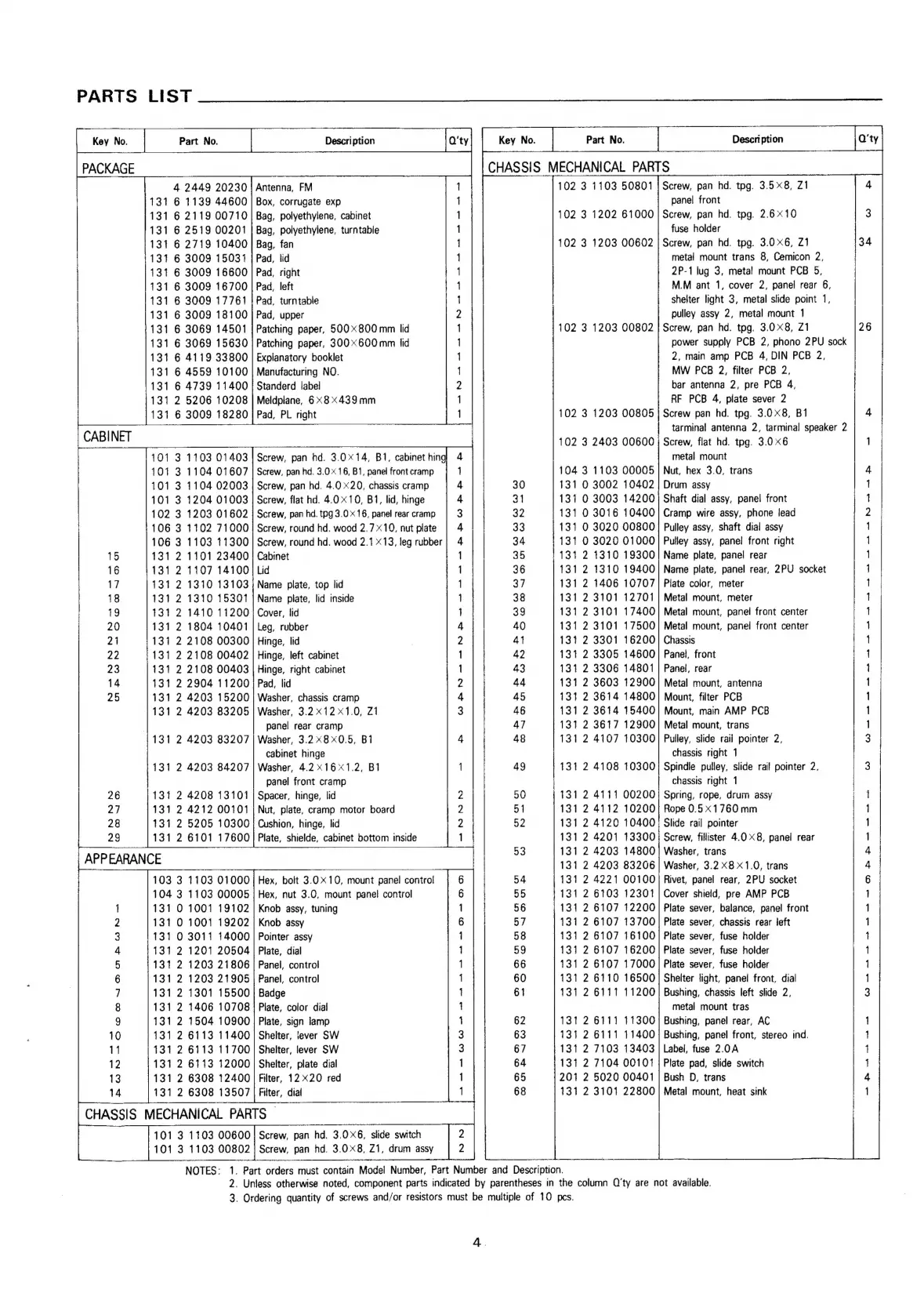

PARTS LIST
PACKAGE
4 2449 20230
Description
Antenna, FM
Cerne [rei
CHASSIS MECHANICAL PARTS
102 3 1103 50801
Screw, pan hd. tpg. 3.58, Z1 4
1
131 6 1139 44600 | Box, corrugate exp 1 panel front
131 6 2119 00710 | Bag, polyethylene, cabinet 1 102 3 1202 61000 | Screw, pan hd. tpg. 2.610
131 6 2519 00201 | Bag, polyethylene, turntable 1 fuse holder
131 6 2719 10400 | Bag, fan 1 102 3 1203 00602 | Screw, pan hd. tpg. 3.06, 21
131 6 3009 15031 | Pad, lid 1 metal mount trans 8, Cemicon 2,
131 6 3009 16600 | Pad, right 1 2P-1 lug 3, metal mount PCB 5,
131 6 3009 16700 | Pad, left { M.M ant 1, cover 2, panel rear 6,
1131 6 3009 17761 Pad, turntable 1 shelter light 3, metal slide point 1,
131 6 3009 18100 | Pad, upper 2 pulley assy 2, metal mount 1
131 6 3069 14501 | Patching paper, 500800 mm lid 1 102 3 1203 00802 | Screw, pan hd. tpg. 3.08, 21 26
131 6 3069 15630 | Patching paper, 300x600 mm lid 1 power supply PCB 2, phono 2PU sock
131 6 4119 33800 | Explanatory booklet 1 2, main amp PCB 4, DIN PCB 2,
131 6 4559 10100 | Manufacturing NO. { MW PCB 2, filter PCB 2,
131 6 4739 11400 | Standerd label 2 bar antenna 2, pre PCB 4,
131 2 5206 10208 | Meldplane, 6x8 x439mm 1 RF PCB 4, plate sever 2
131 6 3009 18280 | Pad, PL right 1 102 3 1203 00805 |; Screw pan hd. tpg. 3.0X8, B1 4
tarminal antenna 2, tarminal speaker 2
CABINET 102 3 2403 00600 ; Screw, flat hd. tpg. 3.0 x6 1
101 3 1103 01403 | Screw, pan hd. 3.014, B1, cabinet hing! 4 metal mount
101 3 1104 01607 | Screw, pan hd. 3.016, B1, panel front cramp 1 104 3 1103 00005 | Nut, hex 3.0, trans 4
101 3 1104 02003 | Screw, pan hd. 4.020, chassis cramp 4 30 131 0 3002 10402 | Drum assy 1
101 3 1204 01003 | Screw, flat hd. 4.010, B1, lid, hinge 4 31 131 0 3003 14200) Shaft dial assy, panel front 1
102 3 1203 01602 | Screw, pan hd. tpg 3.0 x16, panel rear cramp 3 32 131 0 3016 10400] Cramp wire assy, phone lead 2
106 3 1102 71000! Screw, round hd. wood 2.710, nut plate | 4 33 131 0 3020 00800 | Pulley assy, shaft dial assy 1
106 3 1103 11300 | Screw, round hd. wood 2.113, leg rubber} 4 34 131 0 3020 01000 | Pulley assy, panel front right 1
15 131 2 1101 23400 | Cabinet 1 35 131 2 1310 19300] Name plate, pane! rear |
16 131 2 1107 14100) Lid 1 36 131 2 1310 19400] Name plate, panel rear, 2PU socket 1
17 131 2 1310 13103} Name plate, top lid 1 37 131 2 1406 10707) Plate color, meter 1
18 131 2 1310 15301 | Name plate, lid inside 1 38 131 2 3101 12701] Metal mount, meter 1
19 131 2 1410 11200 | Cover, lid 1 39 131 2 3101 17400] Metal mount, panei front center 1
20 131 2 1804 10401 | Leg, rubber 4 40 131 2 3101 17500] Metal mount, panel front center 1
21 131 2 2108 00300 | Hinge, lid 2 41 131 2 3301 16200] Chassis j
22 131 2 2108 00402 | Hinge, left cabinet 1 42 131 2 3305 14600] Panel, front j
23 131 2 2108 00403 | Hinge, right cabinet 1 43 131 2 3306 14801 | Panel, rear i
14 131 2 2904 11200 | Pad, lid 2 44 131 2 3603 12900] Metal mount, antenna 1
25 131 2 4203 15200 | Washer, chassis cramp 4 45 131 2 3614 14800] Mount, filter PCB 1
131 2 4203 83205 | Washer, 3.2 x12 x1.0, Z1 3 46 131 2 3614 15400] Mount, main AMP PCB 1
panel rear cramp 47 131 2 3617 12900] Metal mount, trans 1
131 2 4203 83207 | Washer, 3.2 x8x0.5, B1 4 48 131 2 4107 10300] Pulley, slide raii pointer 2, |
cabinet hinge chassis right 1
131 2 4203 84207 | Washer, 4.2 161.2, B1 1 49 131 2 4108 10300) Spindle pulley, slide rail pointer 2, 3
panel front cramp chassis right 1
| 26 131 2 4208 13101 | Spacer, hinge, lid 2 50 131 2 4111 00200) Spring, rope, drum assy | |
27 131 2 4212 00101 | Nut, plate, cramp motor board 2 51 131 2 4112 10200! Rope 0.5x1760mm 1
28 131 2 5205 10300 | Cushion, hinge, lid Z 2 131 2 4120 10400! Slide rail pointer 1
29 131 2 6101 17600} Plate, shielde, cabinet bottom inside 1 131 2 4201 13300; Screw, fillister 4.08, panel rear 1
53 131 2 4203 14800] Washer, trans 4
APPEARANCE 131 2 4203 83206] Washer, 3.2 x8 x1.0, trans 4
103 3 1103 01000 Hex, bolt 3.010, mount panel control 6 54 131 2 4221 00100 Rivet, panel rear, 2PU socket 6
104 3 1103 00005 | Hex, nut 3.0, mount panel control 6 55 131 2 6103 12301 | Cover shield, pre AMP PCB 1
1 131 0 1001 19102 | Knob assy, tuning 1 56 131 2 6107 12200] Plate sever, balance, panel front 1
2 131 0 1001 19202 | Knob assy 6 57 131 2 6107 13700] Plate sever, chassis rear Jeft 1
3 131 0 3011 14000 | Pointer assy 1 58 131 2 6107 16100] Plate sever, fuse holder 1
4 131 2 1201 20504 | Plate, dial 1 59 131 2 6107 16200) Plate sever, fuse holder 1
5 131 2 1203 21806 | Panel, control 1 66 131 2 6107 17000) Plate sever, fuse holder 1
6 131 2 1203 21905 | Panel, control 1 60 131 2 6110 16500] Shelter light, panel front, dial |
7 131 2 1301 15500} Badge 1 61 131 2 6111 11200] Bushing, chassis left slide 2, 3
8 131 2 1406 10708 | Plate, color dial j metal mount tras
131 2 1504 10900 | Plate, sign lamp 1 62 131 2 6111 11300) Bushing, panel rear, AC 1
131 2 6113 11400 | Shelter, lever SW 3 63 131 2 6111 11400] Bushing, panel front, stereo ind. 1
6113 11700 | Shelter, lever SW 3 67 131 2 7103 13403 | Label, fuse 2.0A j
6113 12000 | Shelter, plate dial 1 64 131 2 7104 00101 | Plate pad, slide switch 1
131 2 6308 12400 | Filter, 1220 red 1 65 201 2 5020 00401 | Bush D, trans 4
2 6308 13507 | Filter, dial 1 68 131 2 3101 22800 | Metal mount, heat sink 1
CHASSIS MECHANICAL PARTS |
101 3 1103 00600} Screw, pan hd. 3.06, slide switch 2
101 3 1103 00802 | Screw, pan hd. 3.08, Z1, drum assy 2
NOTES: 1. Part orders must contain Model Number, Part Number and Description.
2. Unless otherwise noted, component parts indicated by parentheses in the column Q'ty are not available.
3. Ordering quantity of screws and/or resistors must be multiple of 10 pes.
