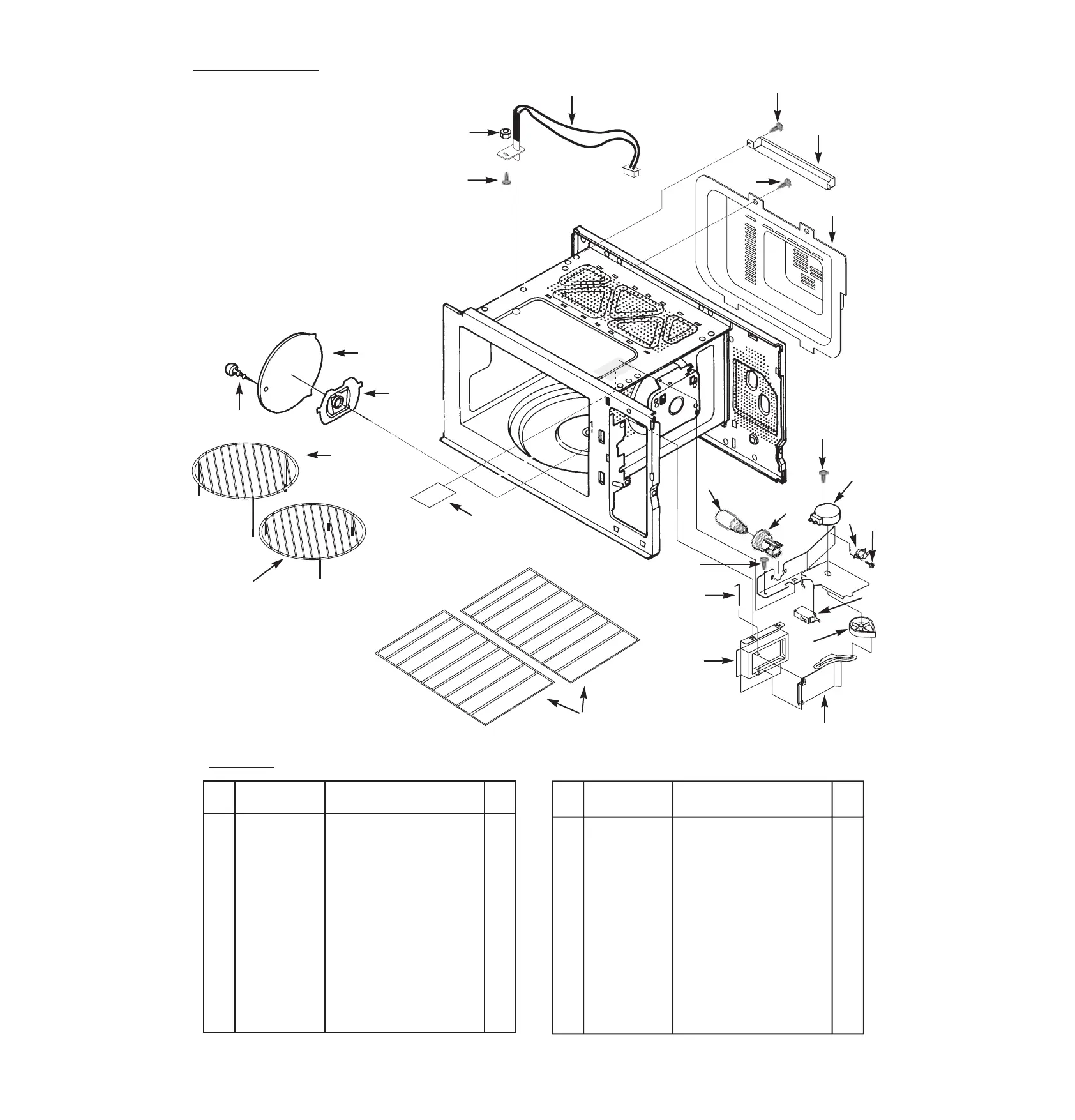

CAVITY PARTS-B
-21-
EM-D993
Key Part No. Description Q'ty
No.
14 617 179 0771 Damper Bct. 1
15 617 179 0757 Shaft 1
16 617 177 3149 Lamp Plate 1
17 617 193 8487 Cook Net 1
18 617 183 1375 Cook Net 1
19 617 186 6070 Cook Net 2
20 411 156 5601 SCR TPG PAN+F+S 4x10 3
21 411 156 5502 SCR S-TPG PAN+F+S 1
22 411 001 6005 SCR S-TPG PAN 4x8 2
23 412 048 6508 SCR TPG TRS 4x10 1
24 411 165 0406 SCR TPG TRS 4x10 SUS 1
25 411 053 9306 NUT HEX +LFLC W/SRT 4 1
26 411 010 5600 SCR EVR PAN 3x6 1
19
Key Part No. Description Q'ty
No.
1 617 186 6117 Antenna Complete 1
2 617 169 8930 Cavity Cover 1
3 617 128 9794 Thermistor Ass’y 1
4 617 177 3040 Duct 1
5 617 177 3033 Frame Rear Plate 1
6 617 123 9928 Gear Motor 1
7 617 153 3088 Thermal Limitor (v150°) 1
8 617 119 3480 Lamp Socket 1
9 617 149 3009 Lamp 1
10 617 160 5761 Response Switch 1
11 617 177 3408 Lamp BCT 1
12 617 177 3309 Cam 1
13 617 177 3293 Damper 1
To Next Page
