Key Part No. Description Q'ty
No.
1 617 197 8124 Control Plate 1
2 617 200 2811 Control Frame 1
3 617 200 2828 Switch Button 1
4 617 200 2835 Switch Button 1
5 617 197 8148 Control Plate 1
6 617 199 1369 Control Plate 1
7 617 197 8155 Switch Lever 1
8 617 196 5711 PCB Complete 1
9 617 196 5704 PCB Complete 1
10 617 197 8131 Control Plate 1
11 617 197 5475 Touch Keyboard 1
12 617 203 2580 Knob Body 1
-25-
* These items not illustrated

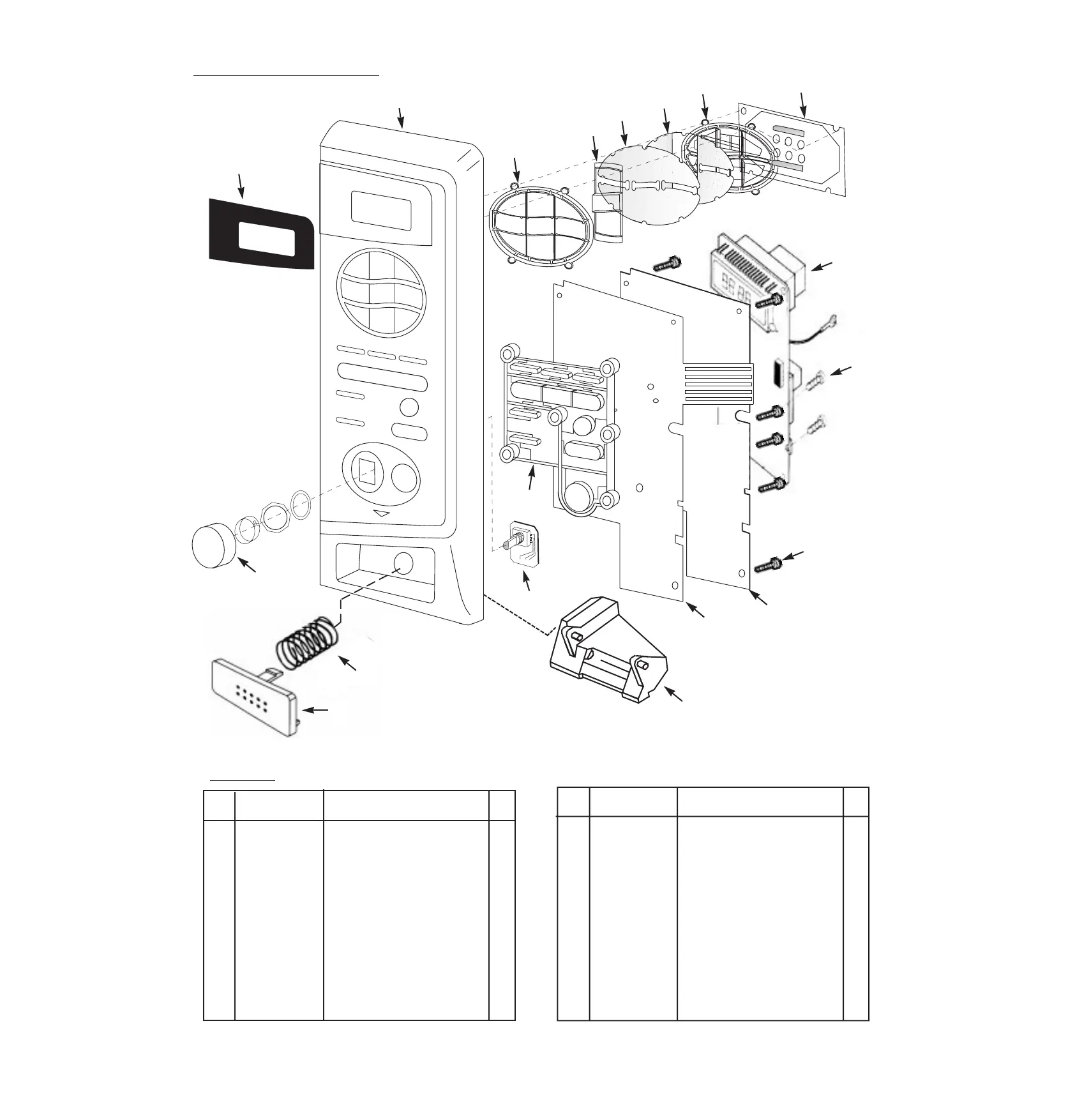

CONTROL PANEL PARTS
9
EM-D993
10
Key Part No. Description Q'ty
No.
13 617 197 4836 PCB Complete 1
14 617 135 8407 Latch Lever 1
15 617 177 1299 Handle Lever 1
16 617 198 5146 Knob Ass’y 1
17 617 080 9559 Spring 1
18 411 064 1306 SCR TPG BIN 3x10 11
19 411 064 2709 SCR TPG BIN 3x14 3
* 617 209 8579 Operating Instructions (UK) 1
* 617 209 8586 Operating Instr. (French) 1
* 617 209 8609 Operating Instr. (Dutch) 1
* 617 200 9940 Corrugate Box 1
1
2
3
4
5
6
8
11
12
13
14
15
17
16
19
18
7
To Next Page
