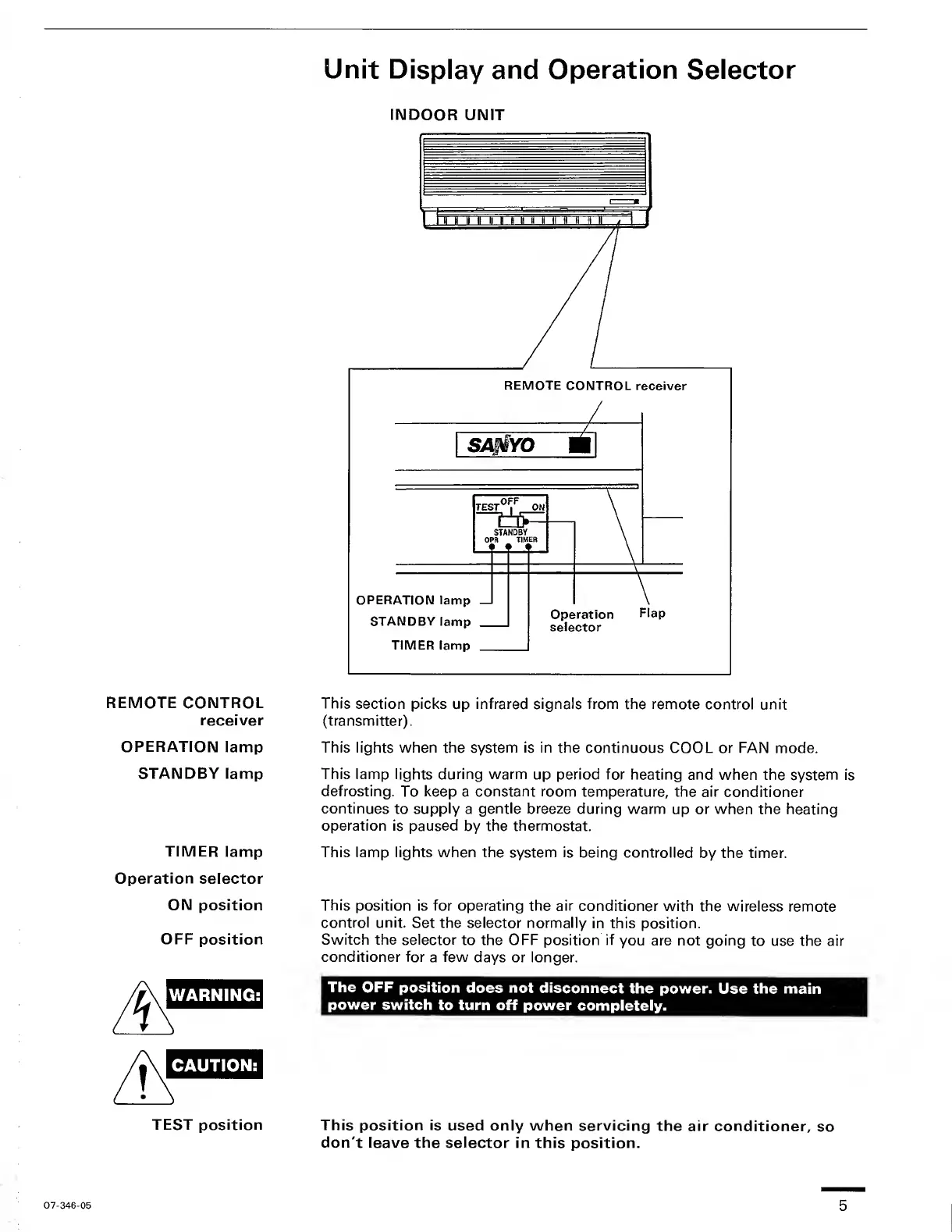

Unit Display and Operation Selector
REMOTE CONTROL
receiver
OPERATION lamp
STANDBY lamp
TIMER lamp
Operation selector
ON position
OFF position
TEST position
INDOOR UNIT
This section picks up infrared signals from the remote control unit
(transmitter).
This lights when the system is in the continuous COOL or FAN mode.
This lamp lights during warm up period for heating and when the system is
defrosting. To keep a constant room temperature, the air conditioner
continues to supply a gentle breeze during warm up or when the heating
operation is paused by the thermostat.
This lamp lights when the system is being controlled by the timer.
This position is for operating the air conditioner with the wireless remote
control unit. Set the selector normally in this position.
Switch the selector to the OFF position if you are not going to use the air
conditioner for a few days or longer.
The OFF position does not disconnect the power. Use the main
power switch to turn off power completely.
This position is used only when servicing the air conditioner, so
don't leave the selector in this position.
