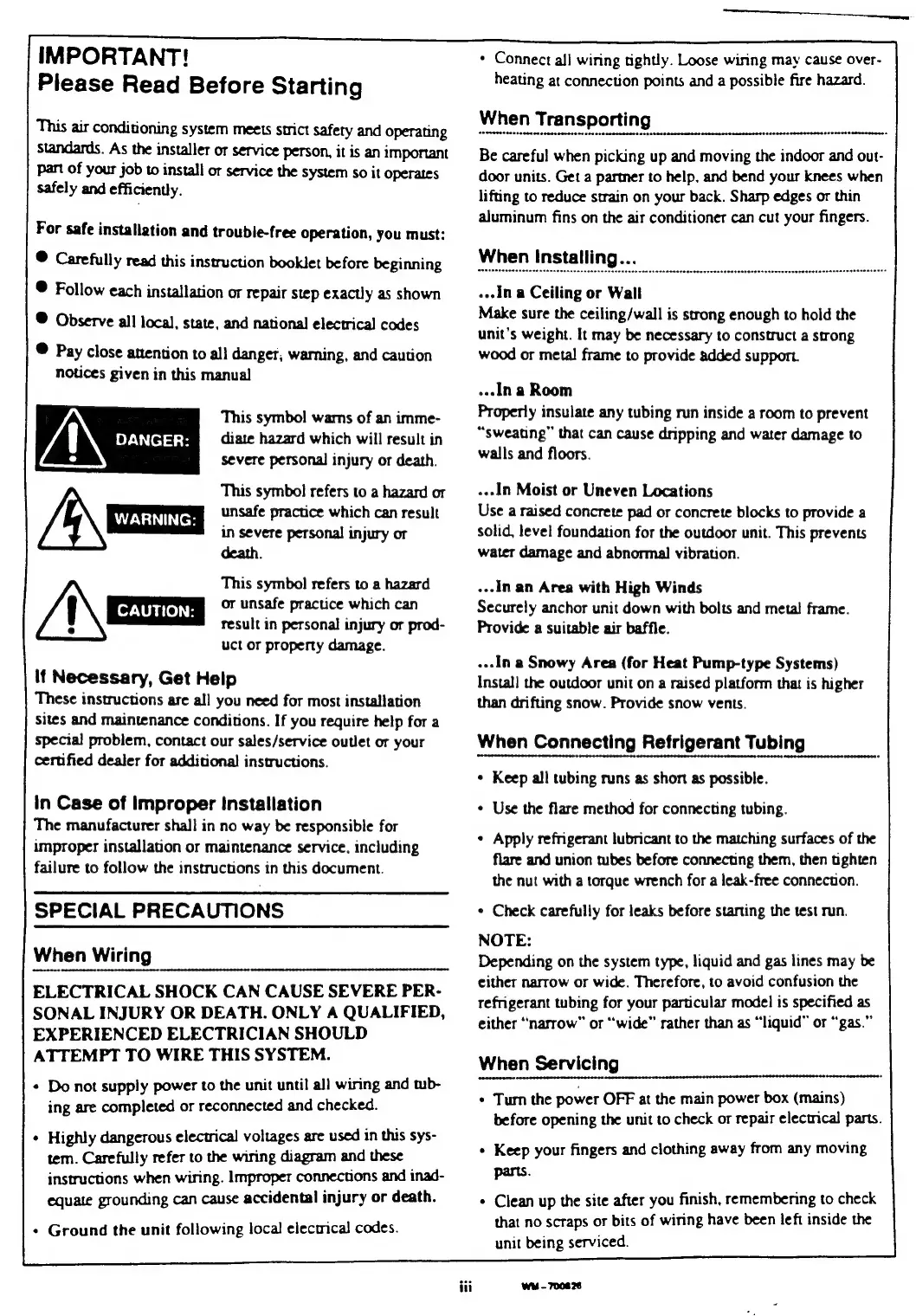

IMPORTANT!
Please
Read
Before
Starting
This
air
conditioning
system
meets
strict
safety
and
operating
standards.
As
the
installer
or
service
person,
it
is
an
important
part
of
your
job
to
install
or
service
the
system
so
it
operates
safely
and
efficiently.
For
safe
installation
and
trouble-free
operation,
you
must:
9
Carefully
read
this
instruction
booklet
before
beginning
9
Follow
each
installation
or
repair
step
exactly
as
shown
9
Observe
all
local,
state,
and
national
electrical
codes
9
Pay
close
attention
to
all
danger,
warning,
and
caution
notices
given
in
this
manual
DANGER:
ANS
If
Necessary,
Get
Help
These
instructions
are
all
you
need
for
most
installation
sites
and
maintenance
conditions.
If
you
require
help
for
a
special
problem,
contact
our
sales/service
outlet
or
your
certified
dealer
for
additional
instructions.
This
symbol
warns
of
an
imme-
diate
hazard
which
will
result
in
severe
personal
injury
or
death.
This
symbol
refers
to
a
hazard
or
unsafe
practice
which
can
result
in
severe
persona!
injury
or
death.
This
symbol
refers
to
a
hazard
or
unsafe
practice
which
can
result
in
personal
injury
or
prod-
uct
or
property
damage.
In
Case
of
Improper
Installation
The
manufacturer
shall
in
no
way
be
responsible
for
improper
installation
or
maintenance
service,
including
failure
to
follow
the
instructions
in
this
document.
SPECIAL
PRECAUTIONS
When
Wiring
_
ELECTRICAL
SHOCK
CAN
CAUSE
SEVERE
РЕК-
SONAL
INJURY
OR
DEATH.
ONLY
A
QUALIFIED,
EXPERIENCED
ELECTRICIAN
SHOULD
ATTEMPT
TO
WIRE
THIS
SYSTEM.
Do
not
supply
power
to
the
unit
until
all
wiring
and
tub-
ing
are
completed
or
reconnected
and
checked.
*
Highly
dangerous
electrical
voltages
are
used
in
this
sys-
tern.
Carefully
refer
to
the
wiring
diagram
and
these
instructions
when
wiring.
Improper
connections
and
inad-
equate
grounding
can
cause
accidental
injury
or
death.
*
Ground
the
unit
following
local
electrical
codes.
*
Connect
all
wiring
tightly.
Loose
wiring
may
cause
over-
heating
at
connection
points
and
a
possible
fire
hazard.
When
Transporting
——
————
ani:
———Á—
Be
careful
when
picking
up
and
moving
the
indoor
and
out-
door
units.
Get
a
partner
to
help.
and
bend
your
knees
when
lifting
to
reduce
strain
on
your
back.
Sharp
edges
or
thin
aluminum
fins
on
the
air
conditioner
can
cut
your
fingers.
When
Installing...
-..In
a
Ceiling
or
Wall
Make
sure
the
ceiling/wall
is
strong
enough
to
hold
the
unit's
weight.
It
rnay
be
necessary
to
construct
a
strong
wood
or
metal
frame
to
provide
added
support.
...In
a
Room
Properly
insulate
any
tubing
run
inside
a
room
to
prevent
"sweating"
that
can
cause
dripping
and
water
damage
to
walls
and
floors.
-..In
Moist
or
Uneven
Locations
Use
a
raised
concrete
pad
or
concrete
blocks
to
provide
a
solid,
level
foundation
for
the
outdoor
unit.
This
prevents
water
damage
and
abnormal
vibration.
-..In
an
Area
with
High
Winds
Securely
anchor
unit
down
with
bolts
and
meta!
frame.
Provide
a
suitable
air
baffle.
..
Іп
a
Snowy
Area
(for
Heat
Pump-type
Systems)
Install
the
outdoor
unit
on
a
raised
platform
that
is
higher
than
drifting
snow.
Provide
snow
vents.
*
Keep
all
tubing
runs
as
short
as
possible.
*
Use
the
flare
method
for
connecting
tubing.
*
Apply
refrigerant
lubricant
to
the
matching
surfaces
of
the
flare
and
union
tubes
before
connecting
them,
then
üghten
the
nut
with
a
torque
wrench
for
a
leak-free
connection.
*
Check
carefuliy
for
leaks
before
starting
the
test
run.
NOTE:
Depending
on
the
system
type,
liquid
and
gas
lines
may
be
either
narrow
or
wide.
Therefore,
to
avoid
confusion
the
refrigerant
tubing
for
your
particular
model
is
specified
as
either
"narrow"
or
"wide"
rather
than
as
"liquid"
or
“gas.”
When
Servicing
Turn
the
power
OFF
at
the
main
power
box
(mains)
before
opening
the
unit
to
check
or
repair
electrical
parts.
*
Keep
your
fingers
and
clothing
away
from
any
moving
parts.
*
Clean
up
the
site
after
you
finish,
remembering
to
check
that
no
scraps
or
bits
of
wiring
have
been
left
inside
the
unit
being
serviced.
WM
-
700826
