Identification of Controls

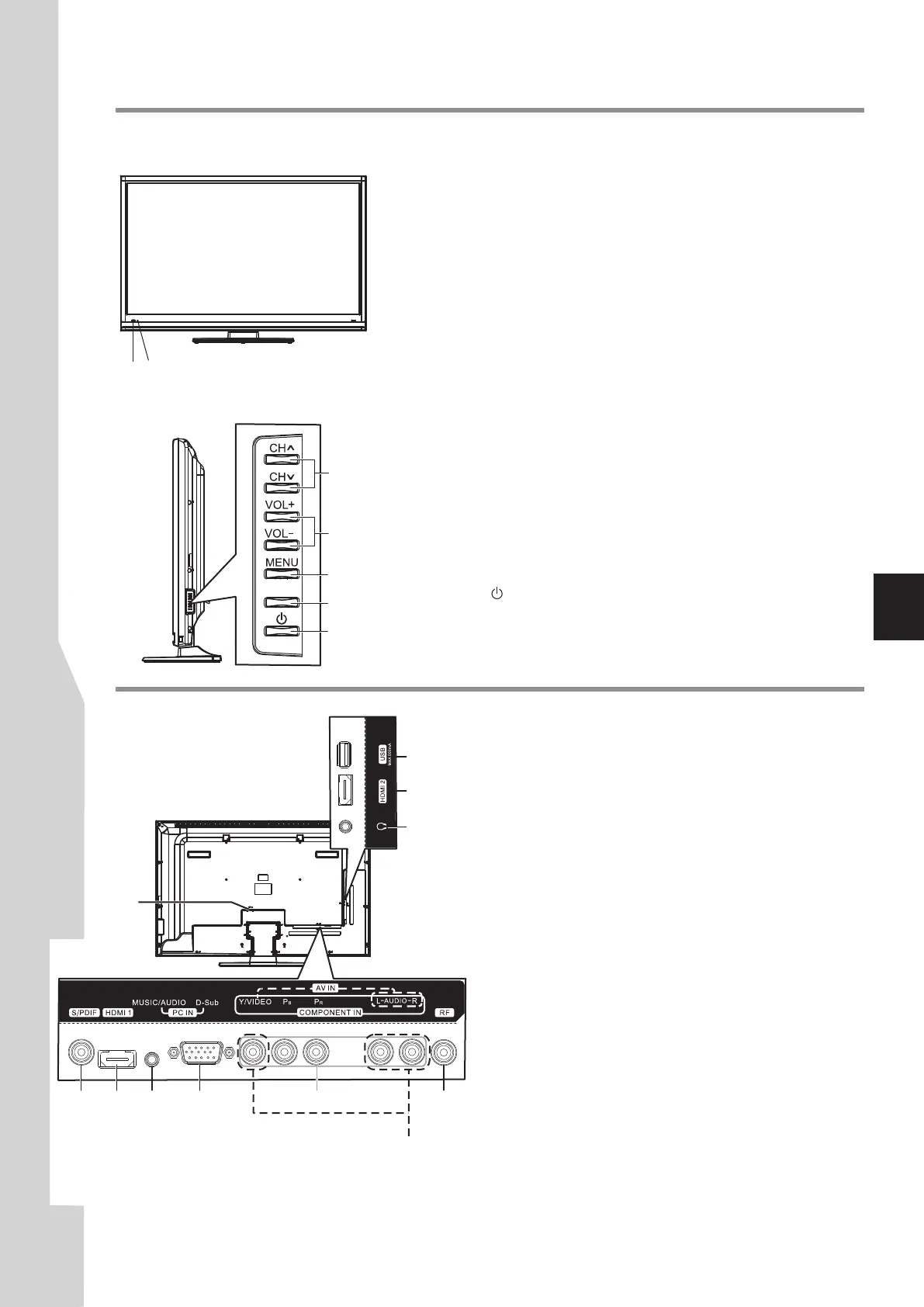

Main Unit (back view)
1. USB port: Connect a USB device to this port.
2. HDMI2: Connect an HDMI device to this jack.
3. Headphone: Connect headphones to this jack.
4. S/PDIF: Connect a digital sound system to this jack.
5. HDMI1 (with ARC): Connect an HDMI device to this
jack.
6. MUSIC/AUDIO: Connect a MP3 player to this jack.
Also served as PC IN audio input.
7. PC IN D-SUB: Connect a computer to this jack.
8. COMPONENT IN: Connect a component video
device to these jacks.
9. AV INPUT: Connect an AV device to these jacks.
10. RF: Connect an antenna or cable TV to this jack.
11. AC IN: Plug the AC cord into this jack and into a
power outlet.
7
Main Unit (front/side view)
1. Remote sensor
2. Power indicator
Lights red when in standby mode.
Flashes red during booting, then goes out when in normal working mode.
3. CH
Press these two buttons to directly change the TV channel;
In menu operations, these buttons serve as up/down buttons.
4. VOL+
Press the VOL+ or VOL– button to directly increase or decrease
the sound volume level;
In menu operations, these buttons serve as right/left buttons.
5. MENU
Press this button to access the main menu screen.
6. INPUT
To access Input Source menu
7. POWER
Receives signals from the remote control. Do not block.
^
/
^
/–
Press this button to turn the unit ON from STANDBY mode. Press
it again to turn the set back to STANDBY.
