Sanyo M-G12 Service Manual

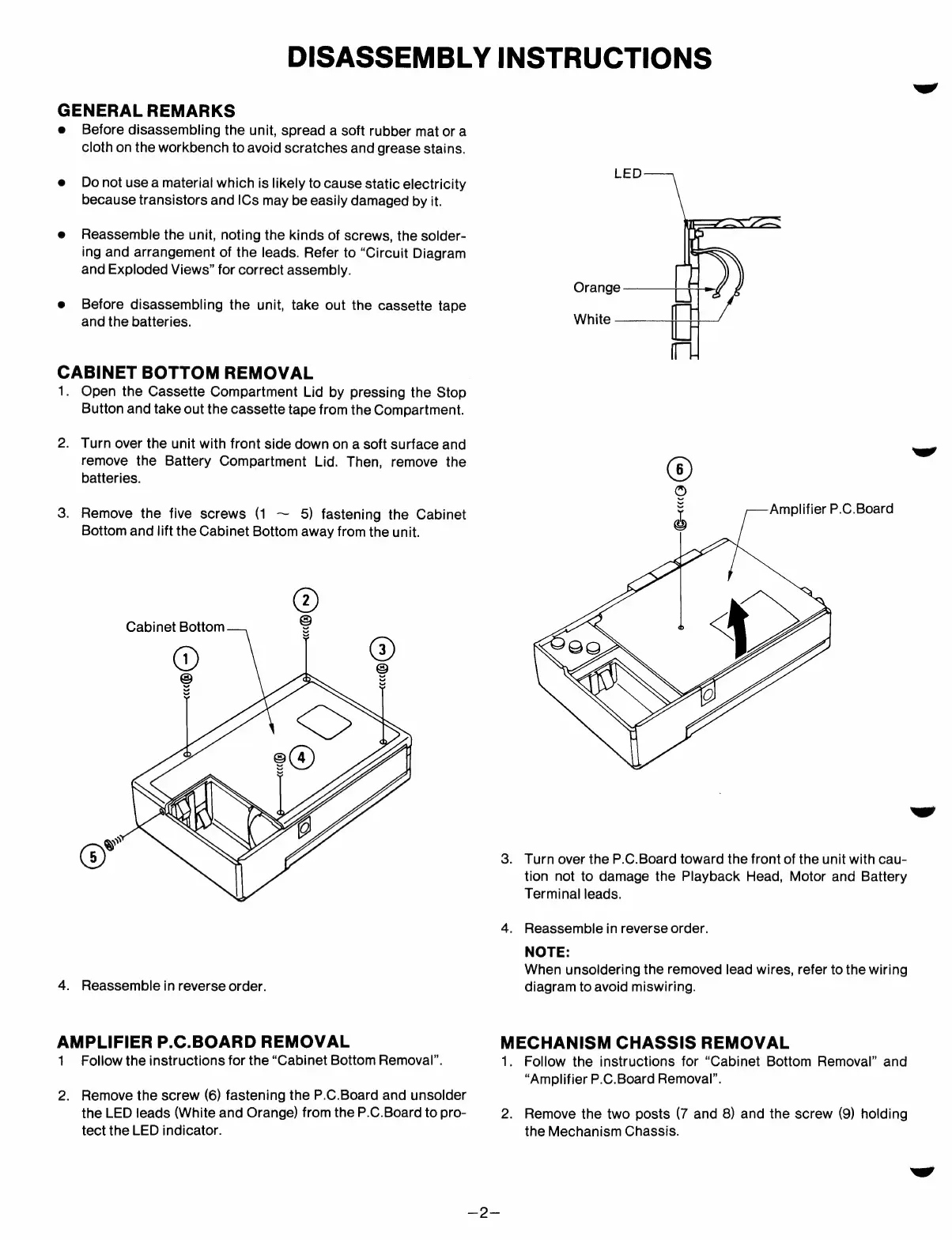

DISASSEMBLY INSTRUCTIONS
GENERAL REMARKS
e Before disassembling the unit, spread a soft rubber mat or a
cloth on the workbench to avoid scratches and grease stains.
LED
e Donotusea material which is likely to cause static electricity
because transistors and ICs may be easily damaged by it.
e Reassemble the unit, noting the kinds of screws, the solder-
ing and arrangement of the leads. Refer to “Circuit Diagram
and Exploded Views” for correct assembly.
Orange
e
Before
disassembling
the
unit,
take
out
the
cassette
tape
rH
and the batteries. White
CABINET BOTTOM REMOVAL
1. Open the Cassette Compartment Lid by pressing the Stop
Button and take out the cassette tape from the Compartment.
2. Turn over the unit with front side down on a soft surface and
remove the Battery Compartment Lid. Then, remove the (6)
batteries.
®
3. Remove the five screws (1 ~ 5) fastening the Cabinet b Amplifier P.C.Board
Bottom and lift the Cabinet Bottom away from the unit.
Cabinet Bottom 4
3. Turn over the P.C.Board toward the front of the unit with cau-
tion not to damage the Playback Head, Motor and Battery
Terminal leads.
4. Reassembie in reverse order.
NOTE:
When unsoldering the removed lead wires, refer to the wiring
4. Reassemble in reverse order. diagram to avoid miswiring.
AMPLIFIER P.C.BOARD REMOVAL MECHANISM CHASSIS REMOVAL
1 Follow the instructions for the “Cabinet Bottom Removal”. 1. Follow the instructions for “Cabinet Bottom Removal” and
“Amplifier P.C.Board Removal”.
2. Remove the screw (6) fastening the P.C.Board and unsolder
the LED leads (White and Orange) from the P.C.Board to pro- 2. Remove the two posts (7 and 8) and the screw (9) holding
tect the LED indicator. the Mechanism Chassis.
