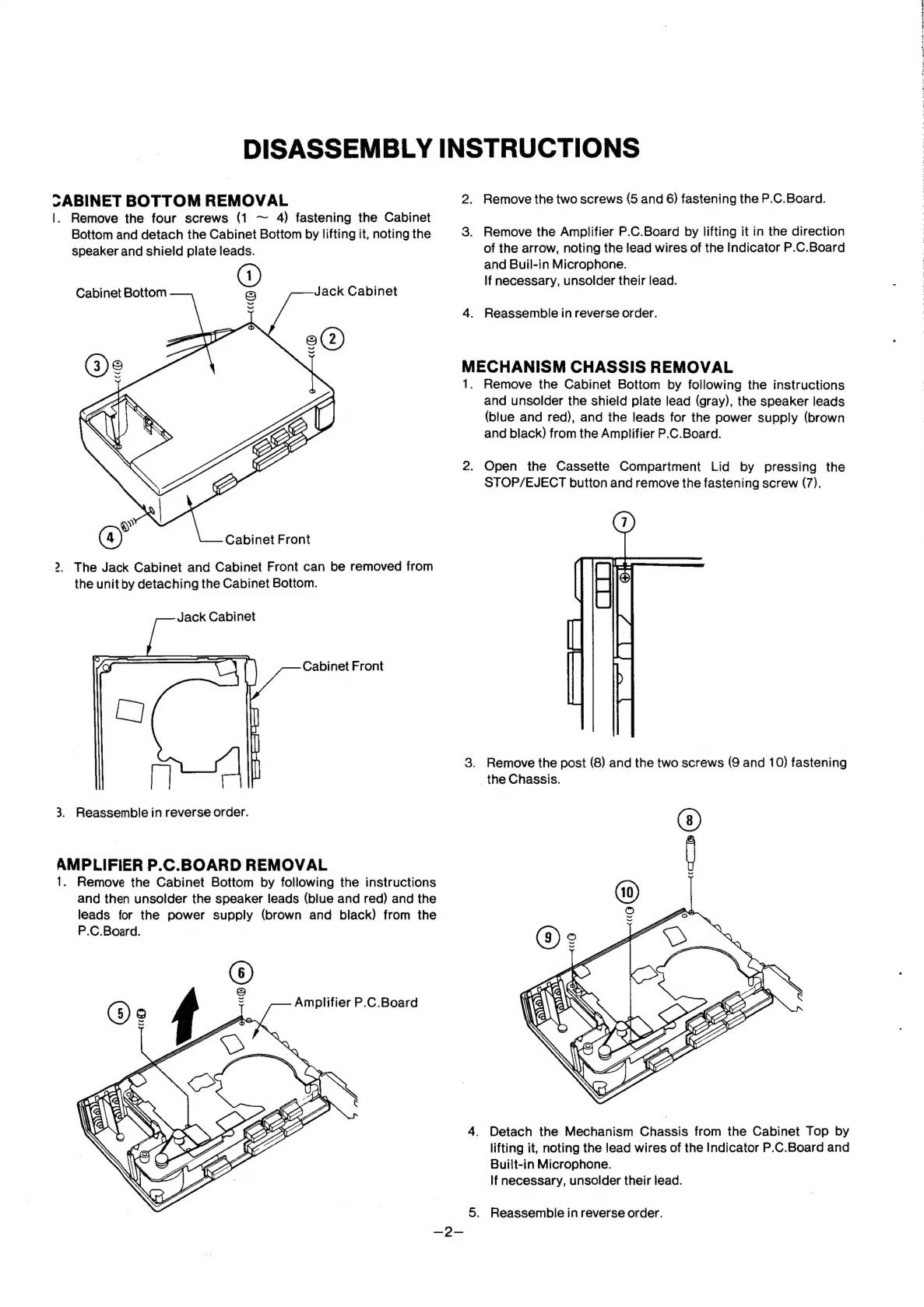

DISASSEMBLY INSTRUCTIONS
vABINET BOTTOM REMOVAL 2.
|. Remove the four screws (1 ~ 4) fastening the Cabinet
Bottom and detach the Cabinet Bottom by lifting it, noting the 3.
speaker and shield plate leads.
Jack Cabinet
(2)
Cabinet Bottom
Cabinet Front
2, The Jack Cabinet and Cabinet Front can be removed from
the unit by detaching the Cabinet Bottom.
Jack Cabinet
Cabinet Front
G on.
3. Reassemble in reverse order.
AMPLIFIER P.C.BOARD REMOVAL
1. Remove the Cabinet Bottom by following the instructions
and then unsolder the speaker leads (blue and red) and the
leads for the power supply (brown and black) from the
P.C.Board.
Remove the two screws (5 and 6) fastening the P.C.Board.
Remove the Amplifier P.C.Board by lifting it in the direction
of the arrow, noting the lead wires of the Indicator P.C.Board
and Buil-in Microphone.
If necessary, unsolder their lead.
Reassemble in reverse order.
MECHANISM CHASSIS REMOVAL
1.
Remove the Cabinet Bottom by following the instructions
and unsolder the shield plate lead (gray), the speaker leads
(blue and red), and the leads for the power supply (brown
and black) from the Amplifier P.C.Board.
2. Open the Cassette Compartment Lid by pressing the
STOP/EJECT button and remove the fastening screw (7).
3. Remove the post (8) and the two screws (9 and 10) fastening
the Chassis.
Detach the. Mechanism Chassis from the Cabinet Top by
lifting it, noting the lead wires of the Indicator P.C.Board and
Built-in Microphone.
If necessary, unsolder their lead.
Reassemble in reverse order.
