Note:
When using a two-speaker installation, the Green, Green/Black, Violet and Violet/Black
wires, which are used for the rear speaker connections, should be combined with the
front speaker connections as shown below and in the wiring diagram.
Left (+): White and Green
Left (–): White/Black and Green/Black
Right (+): Gray and Violet
Right (–): Gray/Black and Violet/Black

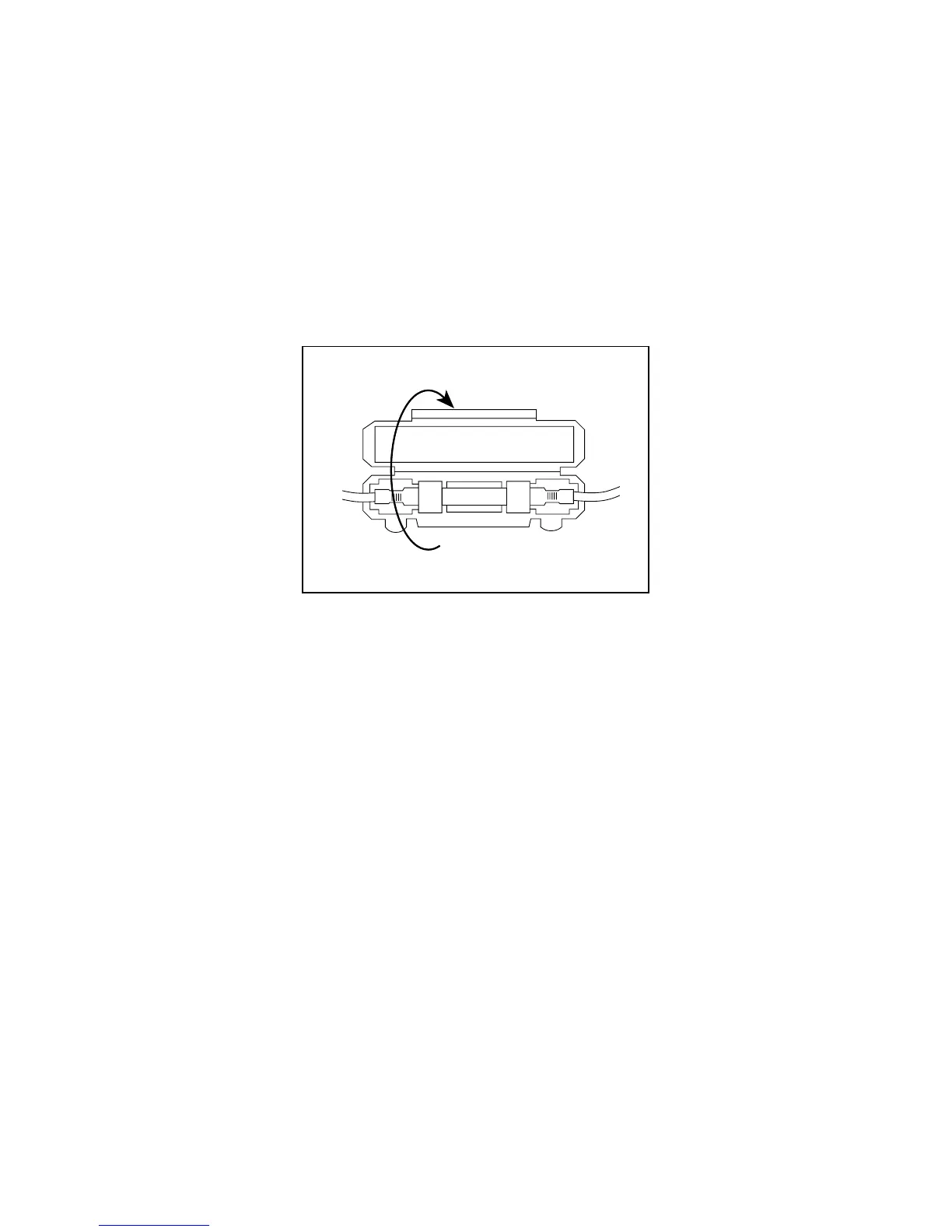

- When fuse replacement is necessary, remove the blown fuse by opening the fuse
holder, then install a new 5 amp fuse (switched power supply) or 0.5 amp fuse
(constant power supply).
- RCA Line Out Jacks
Connect a patch cable (not supplied) from the White and Red RCA line output jacks
to the line input terminals of an external amplifier.
