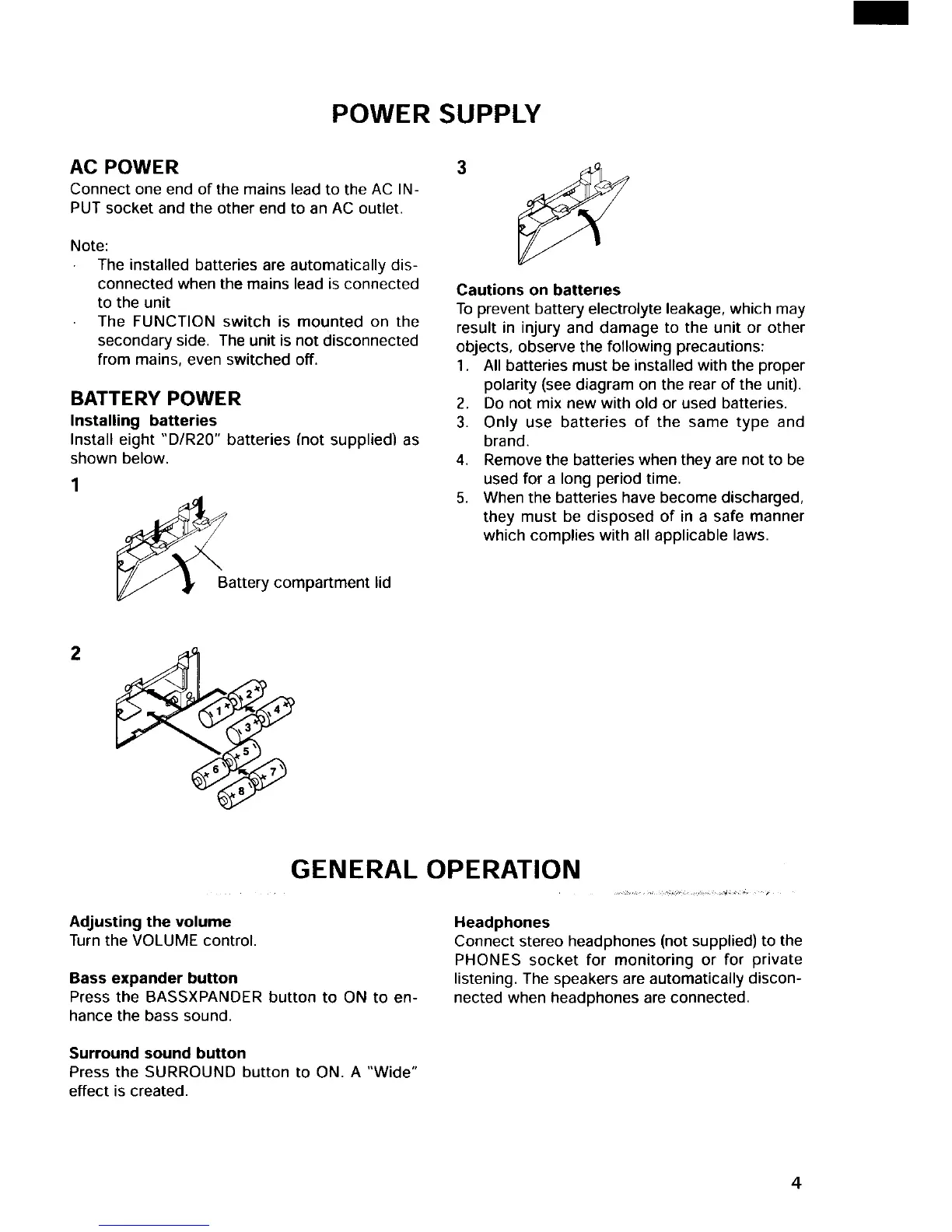

POWER SUPPLY
AC POWER
Connect one end of the mains lead to the AC lN -
PUT socket and the other end to an AC outlet,
Note:
The installed batteries are automatically dis-
connected when the mains lead is connected
to the unit
The FUNCTION switch is mounted on the
secondary side. The unit is not disconnected
from mains, even switched off.
BATTERY POWER
Installing batteries
Install eight “D/R20” batteries (not supplied) as
shown below.
1
attery compartment lid
3
Cautions on batteries
To prevent battery electrolyte leakage, which may
result in injury and damage to the unit or other
obiects, observe the followinq precautions:
l,-
2,
3.
4.
5.
All batteries must be installed with the proper
polarity (see diagram on the rear of the unit).
Do not mix new with old or used batteries.
Only use batteries of the same type and
brand.
Remove the batteries when they are not to be
used for a long period time.
When the batteries have become discharged,
they must be disposed of in a safe manner
which complies with all applicable laws.
2
GENERAL OPERATION
...+ .,. ,
Adjusting the volume Headphones
Turn the VOLUME control.
Connect stereo headphones (not supplied) to the
PHONES socket for monitoring or for private
Bass expander button listening. The speakers are automatically discon-
Press the BASSXPANDER button to ON to en- nected when headphones are connected.
hance the bass sound.
Surround sound button
Press the SURROUND button to ON. A Wide”
effect is created.
4
