1. Speaker output jacks
2. HDMI 1/2/3 interface
To connect with those equipments with HDMI or DVI interface, for example, Set-top box or DVD player. (A
HDMI-to-DVI adapter cable is required when you are connecting a DVI-equipped device to this TV.)
3. D-SUB input
Connect to the D-SUB/AUDIO output jack on your computer.
4. COMPONENT 1/2 inputs
Connect to the audio and component output jacks of a DVD player or Set-Top Box.
5. Headphone jack
Connect to your headphones.
6. AV inputs (Video, Audio L, R)
Receive video/audio signal from external sources such as VCR or DVD player.
7. AV outputs(Video, Audio L, R)
Connect to your VCR to record programs.
8. RS232 interface
For service use . The user cannot operate the unit through this terminal.
9. Antenna input
Connect to your cable system or outdoor antenna.
10. S/PDIF digital audio out terminal(coaxial)
Connect to the digital audio input of a digital audio component.

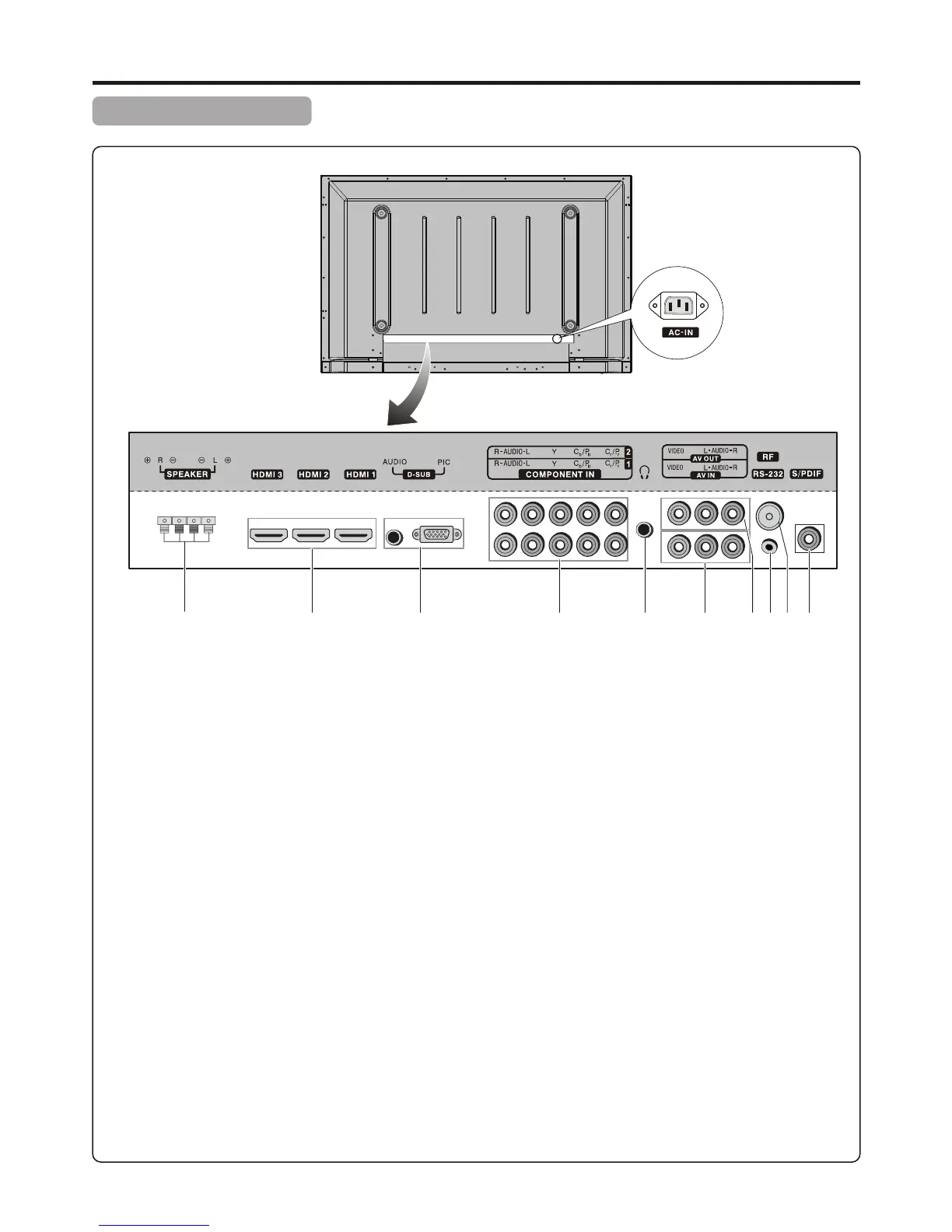

Main Unit (rear view)
Identification of Controls (Continued)
To Next Page
