3-97
Control of 3-WAY ECO-i SYSTEM
1
2
3
4
5
6
7
8

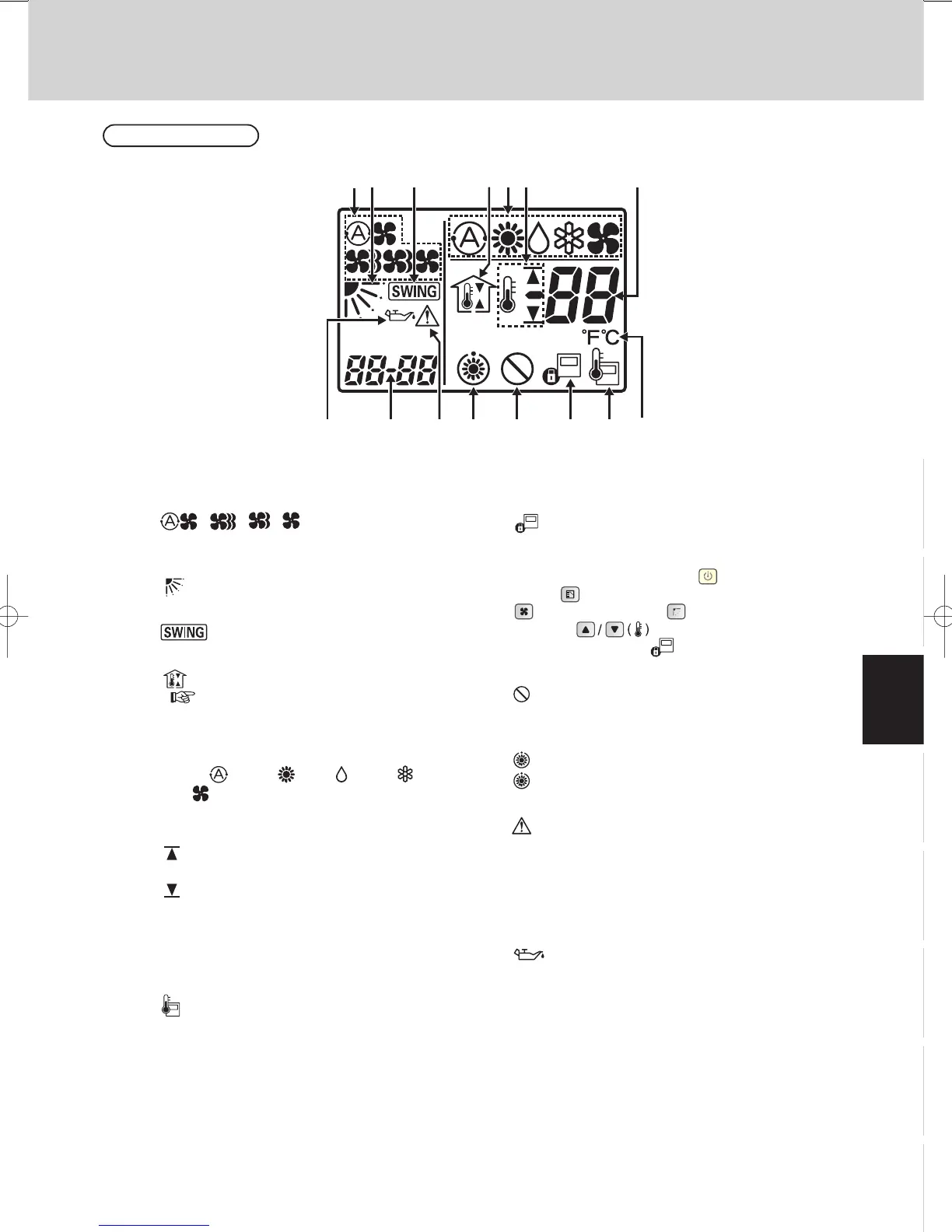

6. Simplifi ed Remote Controller
14 12
5
7
3
8
6
910
4
1113
1
15
2
Display Section
14. Alarm indication
This displays alarm messages when an error
occurs.
5. Operation Mode indication
Displays the selected operation mode.
(AUTO /HEAT /DRY /COOL /
FAN ).
7. Temperature indication
Indicates the set temperature.
8. ˚F / ˚C (Temperature unit) indication
1.
(Fan mode select)
indication
The selected fan mode is displayed.
/ / /
4. (Outing) indication
( Outing Function)
Appears when the outing function is set.
2. (Flap position) indication
Indicates the flap position.
6. Upper and lower limit indication of the
outing function
: Indicates the upper limit of the
temperature.
: Indicates the lower limit of the
temperature.
9. (Remote control sensor) indication
Appears when the remote control sensor is
used.
10. (Centralized control) indication
Appears when operated in centralized control.
If the remote control operation is not permitted
to the remote unit, when the (Start/Stop)
(Fan speed) button, (Swing/Air direction)
button or (Temperature setting)
buttons are pressed, flashes and
rejects the change.
11. (Disabled feature) indication
Displayed if the selected feature was disabled
during installation.
13. (Caution) indication
Appears when the protective device is
activated or when an abnormality occurs.
15. (Oil) indication
Appears when the engine oil needs to be
changed. (Appears when the gas heat pump
air conditioner is used.)
3. (Swing) indication
Appears while the flap swings.
12. (Heating standby mode) indication
appears when the fan of the indoor unit is
stopped or in low fan speed.
button, (Mode select) button,
TD831143-00W-3WAY.indb97TD831143-00W-3WAY.indb97 2008/12/0110:26:492008/12/0110:26:49
