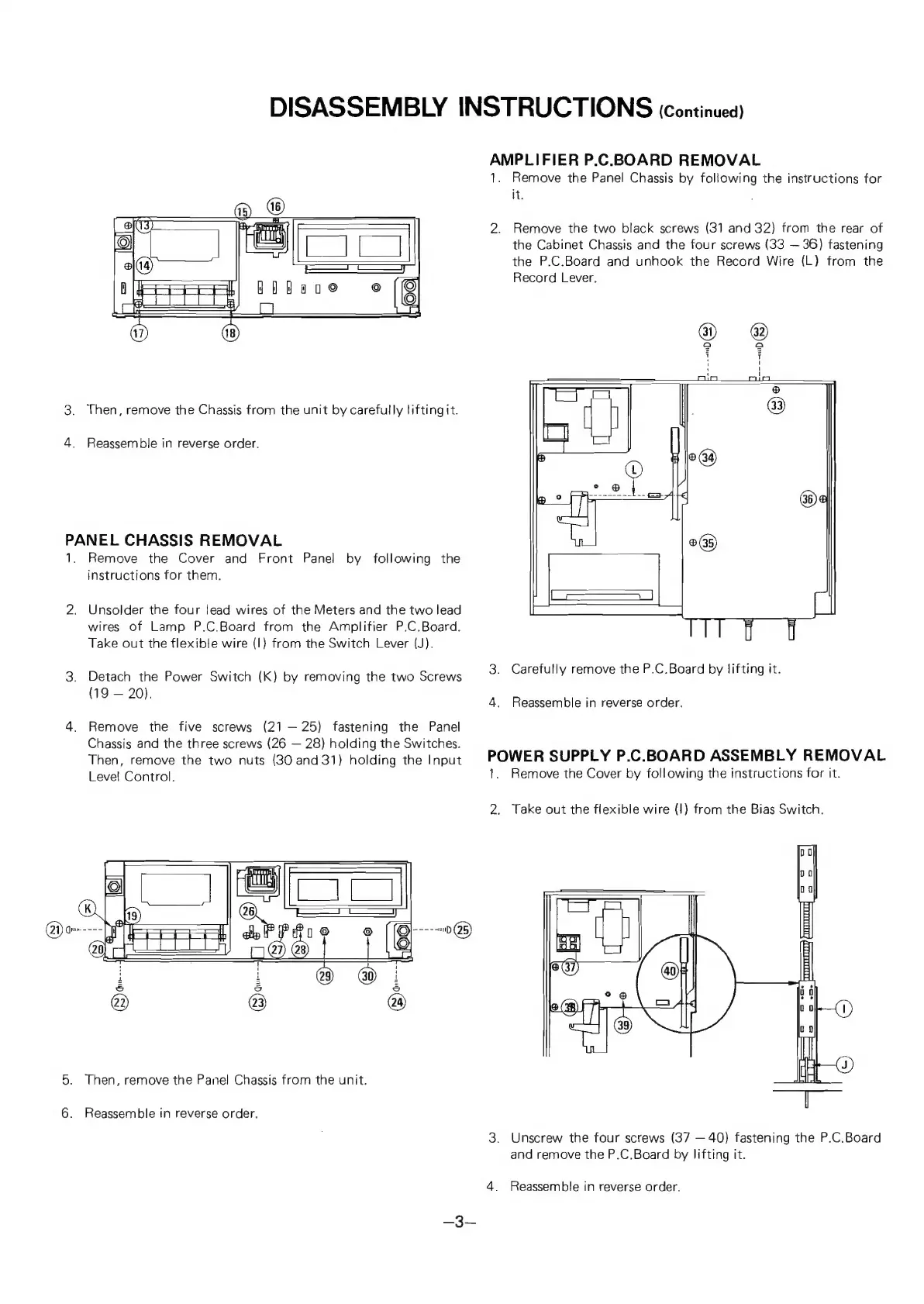

DISASSEM
BLY
INSTRUCTIONS
(Continued)
AMPLIFIER
P.C.BOARD
REMOVAL
1.
Remove
the
Panel
Chassis
by
following
the
instructions
for
it.
7
2.
Remove
the
two
black
screws
(31
and
32)
from
the
rear
of
5
: ;
es
.
[|
(eae
the
Cabinet
Chassis
and
the
four
screws
(33
36)
fastening
a4)
the
P.C.Board
and
unhook
the
Record
Wire
(L)
from
the
Record
Lever.
17
18
3.
Then,
remove
the
Chassis
from
the
unit
by
carefully
lifting
it.
4.
Reassemble
in
reverse
order.
PANEL
CHASSIS
REMOVAL
1.
Remove
the
Cover
and
Front
Pane!
by
following
the
instructions
for
them.
2.
Unsolder
the
four
lead
wires
of
the
Meters
and
the
two
lead
wires
of
Lamp
P.C.Board
from
the
Amplifier
P.C.Board.
Take
out
the
flexible
wire
(I)
from
the
Switch
Lever
(J).
3.
Detach
the
Power
Switch
(K)
by
removing
the
two
Screws
3.
Carefully
remove
tne
P.C.Board
by
lifting
it.
(19
—
20).
4.
Reassemble
in
reverse
order.
4.
Remove
the
five
screws
(21
—
25)
fastening
the
Panel
Chassis
and
the
three
screws
(26
—
28)
holding
the
Switches.
Then,
remove
the
two
nuts
(30
and31)
holding
the
Input
POWER
SUPPLY
P.C.BOARD
ASSEMBLY
REMOVAL
Level
Control.
1.
Remove
the
Cover
by
following
the
instructions
for
it.
2.
Take
out
the
flexible
wire
(1)
from
the
Bias
Switch.
5.
Then,
remove
the
Panel
Chassis
from
the
unit.
6.
Reassemble
in
reverse
order.
3.
Unscrew
the
four
screws
(37
—
40)
fastening
the
P.C.Board
and
remove
the
P.C.Board
by
lifting
it.
4.
Reassemble
in
reverse
order.
ee
