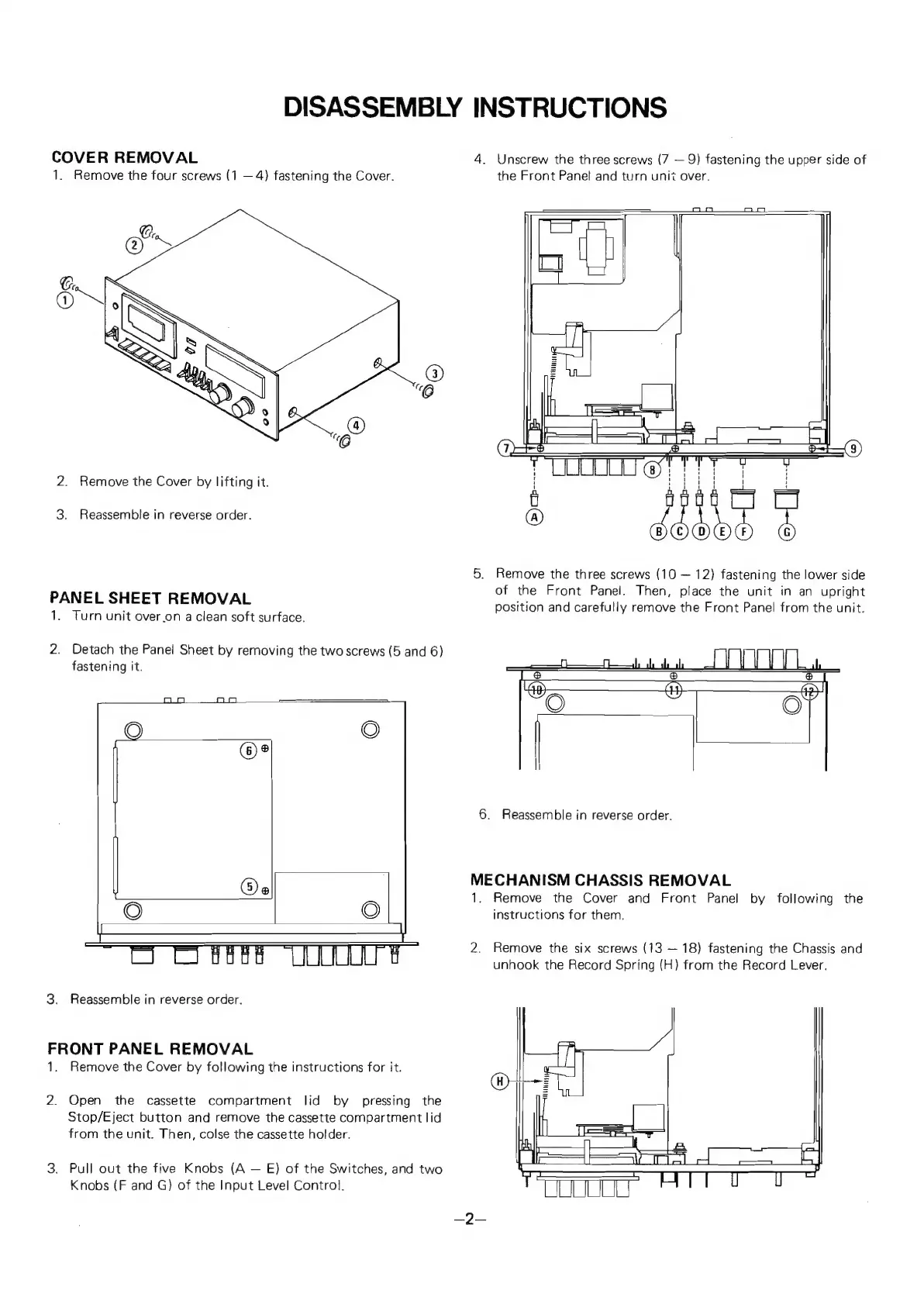

DISASSEMBLY INSTRUCTIONS
COVER REMOVAL 4. Unscrew the three screws (7 — 9) fastening the upper side of
1. Remove the four screws (1 — 4) fastening the Cover. the Front Panel and turn unit over.
2. Remove the Cover by lifting it.
3. Reassemble in reverse order.
5. Remove the three screws (10 — 12) fastening the lower side
of the Front Panel. Then, place the unit in an upright
position and carefully remove the Front Panel from the unit.
PANEL SHEET REMOVAL
1. Turn unit over.on aclean soft surface.
2.
Detach
the
Panel
Sheet
by
removing
the
two
screws
(5
and
6)
fastening
it.
O O
6. Reassemble in reverse order.
® MECHANISM CHASSIS REMOVAL
ae = 1. Remove the Cover and Front Panel by following the
© © instructions for them.
2. Remove the six screws (13 — 18) fastening the Chassis and
unhook the Record Spring (H) from the Record Lever.
3. Reassemble in reverse order.
FRONT PANEL REMOVAL
1. Remove the Cover by following the instructions for it.
2. Open the cassette compartment lid by pressing the
Stop/Eject button and remove the cassette compartment lid
from the unit. Then, colse the cassette holder.
3. Pull out the five Knobs (A — E) of the Switches, and two
Knobs (F and G) of the Input Level Control.
