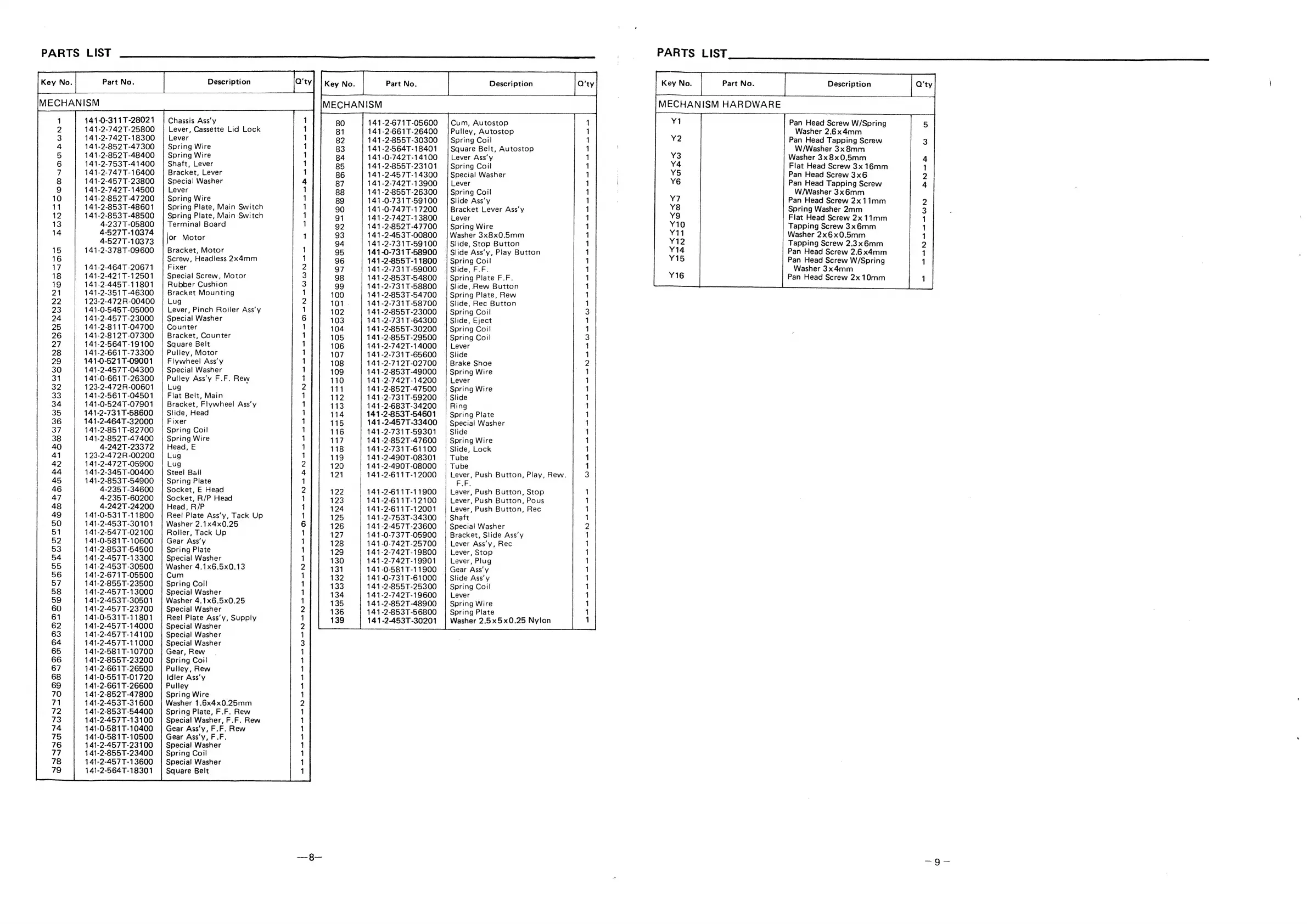

Sanyo RD5035 - Page 8

PARTS LIST
MECHANISM HARDWARE
PARTS LIST
MECHANISM
MECHANISM
1 141-0-311T-28021 | Chassis Ass’y 1 141-2-671T-05600 |Cum, Autostop 1 Pan Head Screw W/Spring 5
2 141-2-742T-25800 | Lever, Cassette Lid Lock 1 141-2-661T-26400 | Pulley, Autostop 1 Washer 2.6x4mm
3 141-2-742T-18300 | Lever _ 1 141-2-855T-30300 | Spring Coil 1 Pan Head Tapping Screw 3
4 141-2-852T-47300 Spring Wire 1 141-2-564T-18401 Square Belt, Autostop 1 W/Washer 3x 8mm
5 141-2-852T-48400 | Spring Wire 1 141-0-742T-14100 | Lever Ass’y 1 Washer 3x8x0.5mm 4
6 141-2-753T-41400 | Shaft, Lever ' 141-2-855T-23101 | Spring Coil 1 Flat Head Screw 3x 16mm 1
7 141-2-747T-16400 Bracket, Lever 1 141-2-457T-14300 |Special Washer 1 Pan Head Screw 3x6 2
8 141-2-457T-23800 | Special Washer 4 141-2-742T-13900 | Lever 1 Pan Head Tapping Screw 4
9 141-2-742T-14500 | Lever 1 141-2-855T-26300 | Spring Coil 1 W/Washer 3x6mm
10 141-2-852T-47200 | Spring Wire . . 1 141-0-731T-59100 {Slide Ass’y 1 Pan Head Screw 2x11mm 9
11 141-2-853T-48601 Spring Plate, Main Switch 1 141-0-747T-17200 | Bracket Lever Ass’y 1 Spring Washer 2mm 3
12 141-2-853T-48500 Spring Plate, Main Switch 1 141-2-742T-13800 | Lever 1 Flat Head Screw 2x 11mm 1
13 4-237T-05800 | Terminal Board 1 141-2-852T-47700 | Spring Wire 1 Tapping Screw 3x6mm 1
14
4-527T-10374
|
)0
aa
otor
1
141-2-453T-00800
|
Washer
3x8x0.5mm
1
Washer
2x6x0.5mm
1
4-527T-10373
141-2-731T-59100
|
Slide,
Stop
Button
1
Tapping
Screw
2.3x6mm
2
15 141-2-378T-09600 | Bracket, Motor 1 141-0-731T-58900 | Slide Assy, Play Button 1 Pan Head Screw 2.6x4mm 1
16 Screw, Headless 2x4mm 1 141-2-855T-11800 | Spring Coil 1 Pan Head Screw W/Spring 1
17 141-2-464T-20671 | Fixer 2 141-2-731T-59000 | Slide, F.F. 1 Washer 3x4mm
18 141-2-421T-12501 Special Screw, Motor 3 141-2-853T-54800 | Spring Plate F.F. 1 Pan Head Screw 2x 10mm 1
19 141-2-445T-11801 Rubber Cushion 3 141-2-731T-58800 | Slide, Rew Button 1
21 141-2-351T-46300 | Bracket Mounting 1 141-2-853T-54700 | Spring Plate, Rew 1
22 123-2-472R-00400 | Lug _ 2 141-2-731T-58700 | Slide, Rec Button 1
23 141-0-545T-05000 | Lever, Pinch Roller Ass’y 1 141-2-855T-23000 | Spring Coil 3
24 141-2-457T-23000 | Special Washer 6 141-2-731T-64300 | Slide, Eject 1
25 141-2-811T-04700 | Counter 1 141-2-855T-30200 | Spring Coil 1
26 141-2-812T-07300 | Bracket, Counter 1 141-2-855T-29500 | Spring Coil 3
27 141-2-564T-19100 | Square Belt 1 141-2-742T-14000 | Lever 1
28 141-2-661T-73300 | Pulley, Motor 1 141-2-731T-65600 | Slide 1
29 141-0-521T-09001 | Flywheel Ass‘y 1 141-2-712T-02700 | Brake Shoe 2
30 141-2-457T-04300 | Special Washer 1 141-2-853T-49000 | Spring Wire 1
31 141-0-661T-26300 | Pulley Ass’y F.F. Rew 1 141-2-742T-14200 | Lever 1
32 123-2-472R-00601 | Lug 2 141-2-852T-47500 | Spring Wire 1
33 141-2-561T-04501 Flat Belt, Main 1 141-2-731T-59200 | Slide 1
34 141-0-524T-07901 Bracket, Flywheel Ass’y 1 141-2-683T-34200 | Ring 1
35 141-2-731T-58600 | Slide, Head 1 141-2-853T-54601 | Spring Plate 1
36 141-2-464T-32000 | Fixer 1 141-2-457T-33400 | Special Washer 1
37 141-2-851T-82700 | Spring Coil 1 141-2-731T-59301 | Slide 1
38 141-2-852T-47400 | Spring Wire 1 141-2-852T-47600 | Spring Wire 1
40 4-242T-23372 | Head, E 1 141-2-731T-61100 | Slide, Lock 1
41 123-2-472R-00200 | Lug 1 141-2-490T-08301 | Tube 1
42 141-2-472T-05900 | Lug 2 141-2-490T-08000 | Tube 1
ae 141-2-345T-00400 | Steel Ball 4 141-2-611T-12000 | Lever, Push Button, Play, Rew. | 3
45 141-2-853T-54900 | Spring Plate 1 F.F.
46 4-235T-34600 | Socket, E Head 2 141-2-611T-11900 | Lever, Push Button, Stop 1
47 4-235T-60200 | Socket, R/P Head 1 141-2-611T-12100 | Lever, Push Button, Pous 1
48 4-242T-24200 | Head, R/P 1 141-2-611T-12001 | Lever, Push Button, Rec 1
49 141-0-531T-11800 | Reel Plate Ass’y, Tack Up 1 141-2-753T-34300 | Shaft 1
50 141-2-453T-30101 | Washer 2.1x4x0.25 6 141-2-457T-23600 | Special Washer 2
51
141-2-547T-02100
|
Roller,
Tack
Up
1
141-0-737T-05900
|
Bracket,
Slide
Ass’y
1
92 141-0-581T-10600 | Gear Ass’y 1 141-0-742T-25700 | Lever Ass’y, Rec 1
53 141-2-853T-54500 | Spring Plate 1 141-2-742T-19800 Lever, Stop 1
54 141-2-457T-13300 | Special Washer 1 141-2-742T-19901 ever, Plug 1
55 141-2-453T-30500 | Washer 4.1x6.5x0.13 2 141-0-581T-11900 | Gear Ass'y 1
o6 141-2-6717-05500 | Cum 1 141-0-731T-61000 | Slide Ass’y 1
57 141-2-855T-23500 | Spring Coil 1 141-2-855T-25300 | Spring Coil 1
58 141-2-457T-13000 | Special Washer 1 141-2-742T-19600 Lever 1
59 141-2-453T-30501 Washer 4.1x6.5x0.25 1 141-2-852T-48900 Spring Wire 1
>
Lapel
Special
Washer
2
141-2-853T-56800
|
Spring
Plate
1
141-0-531T-11801 Reel Plate Ass’y, Supply 1 ‘ 3
62 141-2-457T-14000 | Special Washer 5 141-2-453T-30201 | Washer 2.5x5x0.25 Nylon 1
63 141-2-457T-14100 | Special Washer 1
64 141-2-457T-11000 | Special Washer 3
65 141-2-581T-10700 | Gear, Rew 1
66 141-2-855T-23200 | Spring Coil 1
67 141-2-661T-26500 | Pulley, Rew 1
68 141-0-551T-01720 | Idler Ass’y 1
69 141-2-661T-26600 | Pulley 1
70 141-2-852T-47800 | Spring Wire . 1
71 141-2-453T-31600 | Washer 1.6x4x0.25mm 2
72 141-2-853T-54400 | Spring Plate, F.F. Rew 1
73 141-2-457T-13100 | Special Washer, F.F. Rew 1
74 141-0-581T-10400 | Gear Ass’y, F.F. Rew 1
75 141-0-581T-10500 | Gear Ass’y, F.F. 1
76 141-2-457T-23100 | Special Washer 1
77 141-2-855T-23400 | Spring Coil 1
78 141-2-457T-13600 | Special Washer 1
79 141-2-564T-18301 | Square Belt 1
