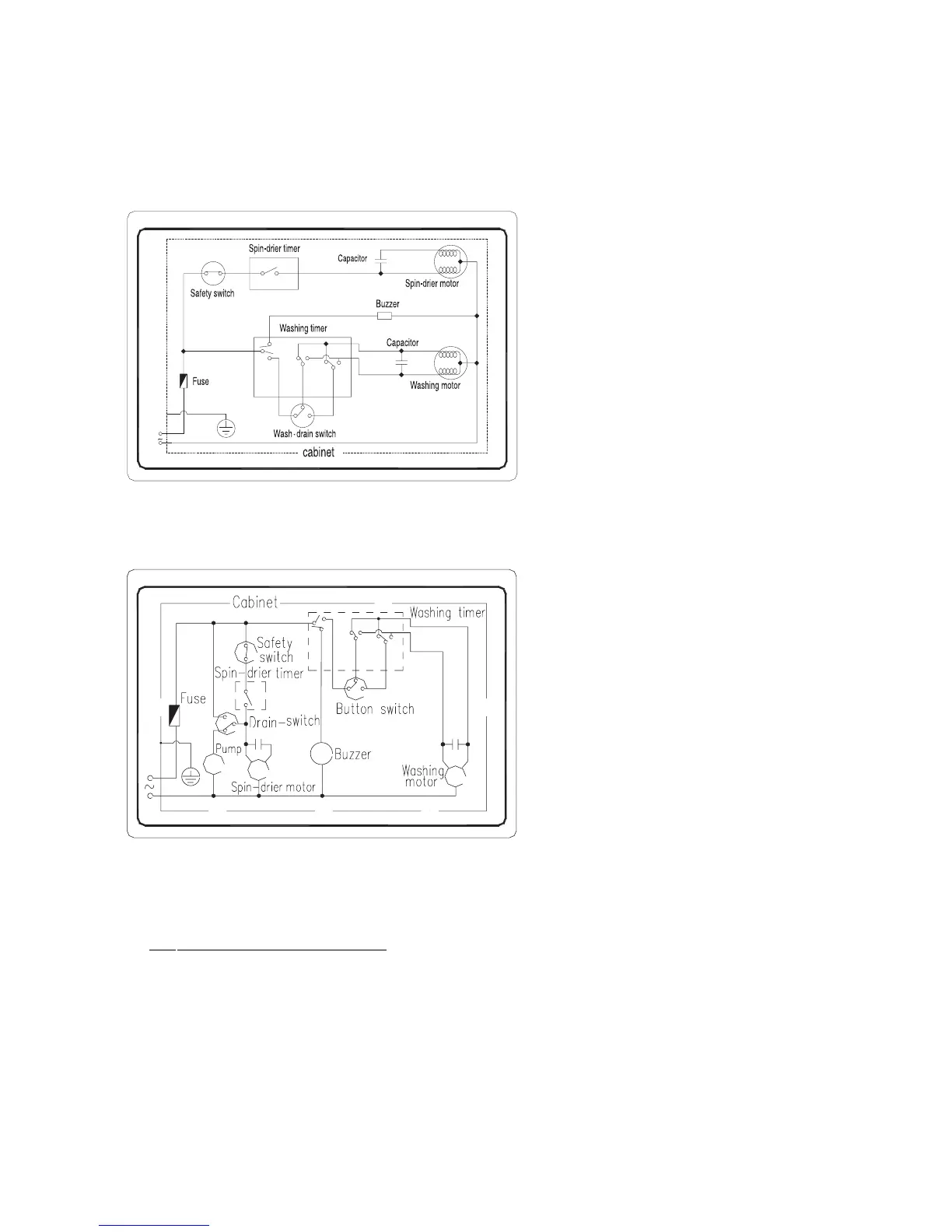

WIRING DIAGRAM
SW-7010T
SW-7010TP
CAUTIONS AT SERVICE
1) Plug out a wall socket to prevent possible electrical shock when the washer is repaired.
2) When a washing motor is rotating, a fan of the main body of a small pulley cannot be seen. When you
touch your hand to the fan by accident, you may get hurt.
3) Start to repair the washer after it stops completely.
