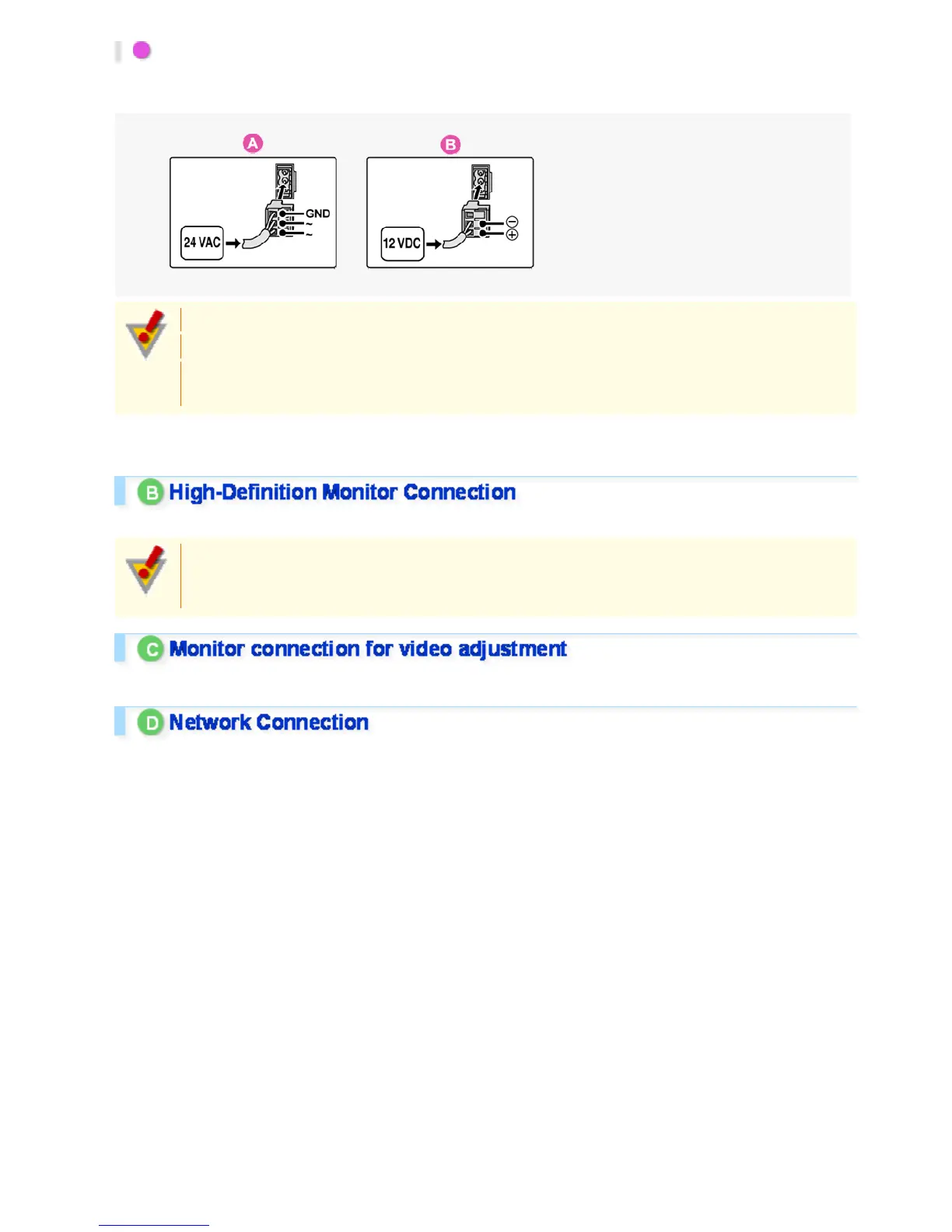

B Connection to 12 VDC power supply
Note the polarity (+/–) of the power terminals when connecting the camera to a 12 VDC power supply.
Incorrect polarity may cause damage to the camera.
To prevent a fire hazard use any UL listed wire rated VW-1.
Be sure to use an 18AWG or thicker wire power cable.
If you must use a long power cable, determine the cable type by ensuring that the voltage at the 24-
VAC/12-VDC terminal is within the operating range of the camera.
When the camera is powered on, the POWER indicator lights up and the live video is displayed on the connected
monitor.
Connect the HDMI cable to the HD video output terminal (HDMI).
You cannot output the video simultaneously from HD video output terminal (HDMI) and from monitor
output terminal (MONITOR OUT). When both terminals are used, the HD video output terminal takes
precedence.
Connect the coaxial cable to the SD video output terminal (MONITOR OUT).
This camera is designed so that you can use all of its functions via network operation.
By connecting the network (LAN) socket of the camera to your PC using a LAN cable, you can configure and
operate it from the Web browser installed on your PC.
