— 7 —

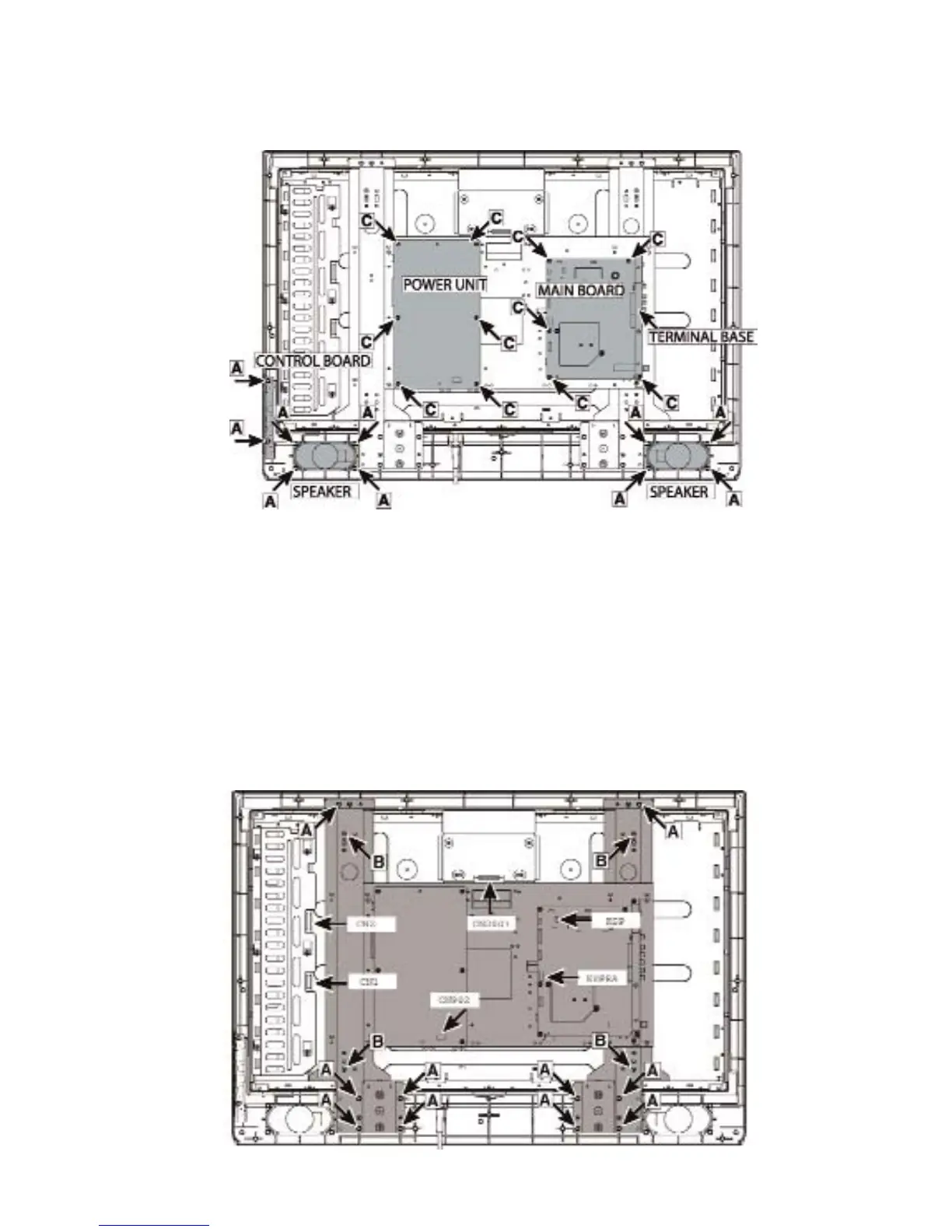

BOARD AND SPEAKER REMOVAL
1: Main Board Removal
Remove 5 screws (C:3X6) to take the main board
off.
2: Power Unit Removal
Remove 6 screws (C:3X6) to take the power unit off.
3: Control Board Removal
Remove 2 screws (A:4X14) to take the control board
off.
4: Speakers Removal
Remove 4 screws (A:4X14) to remove each speaker.
LCD panel removal Removal
1. Disonnect CN2001, CN1, CN2, KSP, and K8FRA
2. Remove 14 screws (A:4X14, 10pcs, B:4X8, 4pcs) to take the mounting
frames with chassis plate, power unit, and main board off.
3. Lift the LCD panel from the front cabinet.
