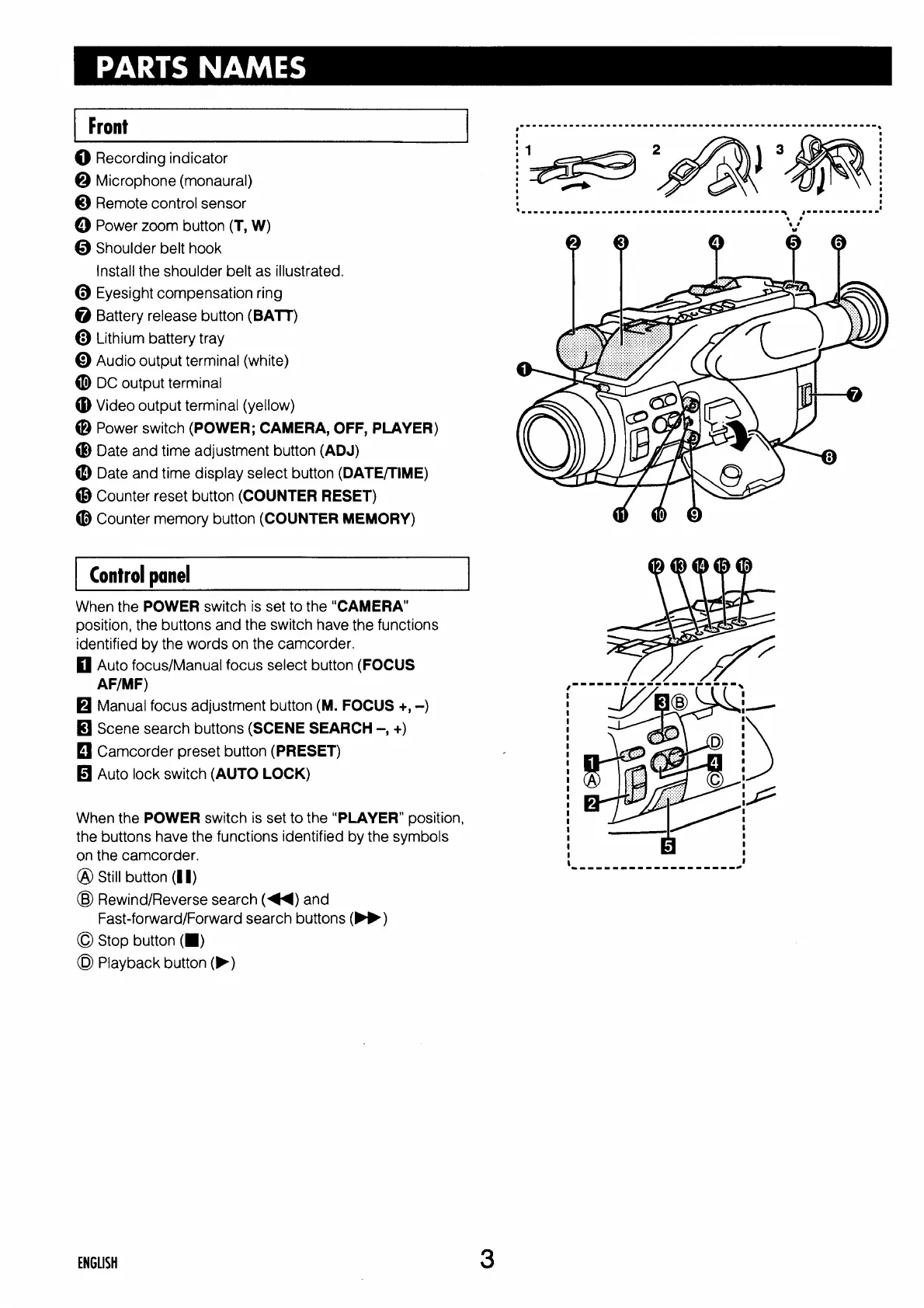

PARTS NAMES
Q Recording indicator : AED 2 JA ) 3
@ Microphone (monaural) ! E )
© Remote control sensor
© Power zoom button (T, W)
@ Shoulder belt hook
Install the shoulder belt as illustrated.
Q Eyesight compensation ring
@ Battery release button (BATT)
© Lithium battery tray
© Audio output terminal (white)
@ DC output terminal
@ Video output terminal (yellow)
@ Power switch (POWER; CAMERA, OFF, PLAYER)
@® Date and time adjustment button (ADJ)
@ Date and time display select button (DATE/TIME)
@® Counter reset button (COUNTER RESET)
@ Counter memory button (COUNTER MEMORY)
Control panel
When the POWER switch is set to the “CAMERA”
position, the buttons and the switch have the functions
identified by the words on the camcorder.
Auto focus/Manual focus select button (FOCUS
AF/MF)
Manual focus adjustment button (M. FOCUS +, -)
Scene search buttons (SCENE SEARCH -, +)
El Camcorder preset button (PRESET)
E Auto lock switch (AUTO LOCK)
s
L]
L]
a
i]
a
A
a
i]
'
t
L]
i
a
When the POWER switch is set to the “PLAYER” position,
the buttons have the functions identified by the symbols
on the camcorder.
@) Still button (FI)
Rewind/Reverse search (<4) and
Fast-forward/Forward search buttons (PP)
© Stop button (i)
©) Playback button (P)
