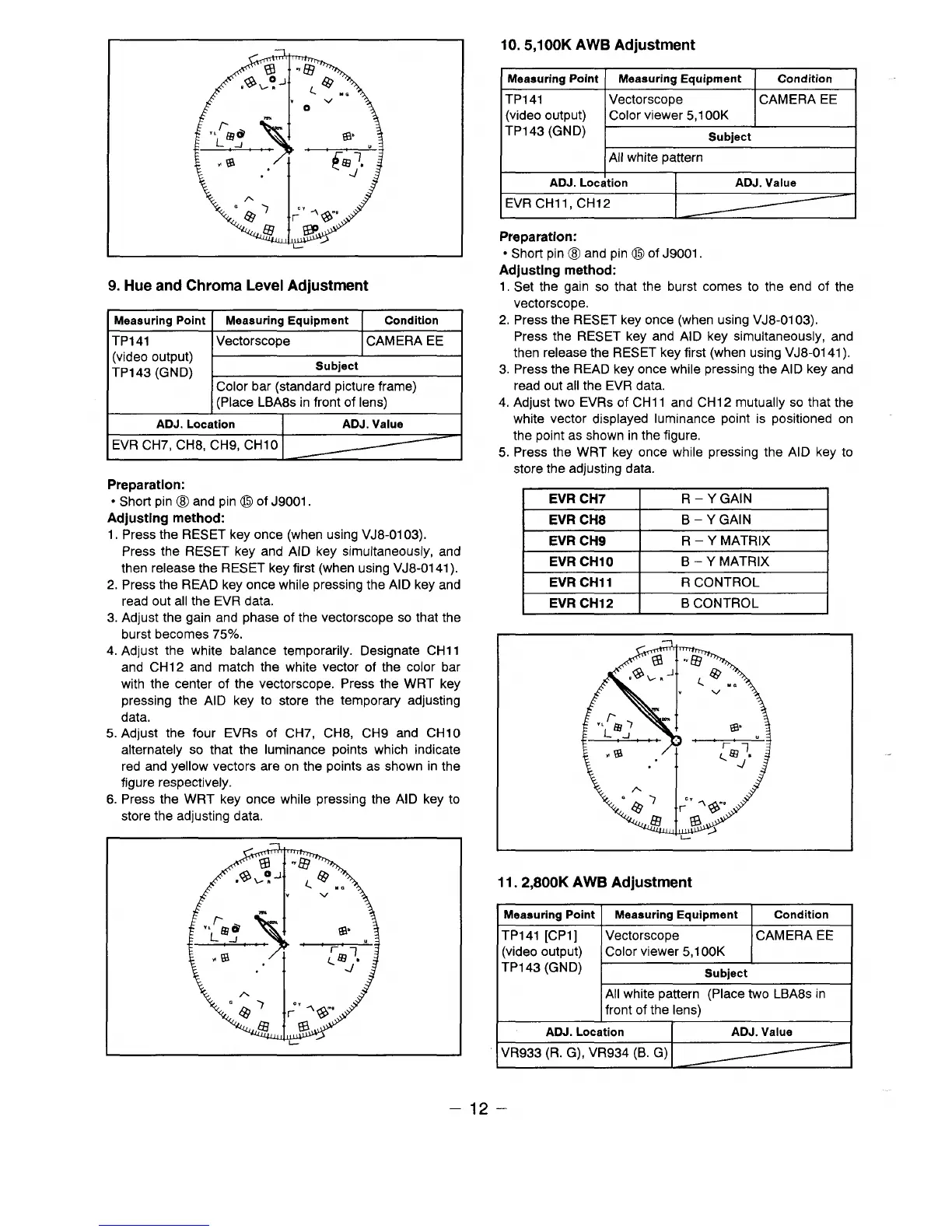

9. Hue and Chroma Level Adjustment
Measuring Point Measuring Equipment
I
Condition
TP141
Vectorscope
ICAMERA EE
(video output)
I
TP143 (GND)
1
Subject
I
I
Color bar (standard picture frame)
(Place LBA8s in front of lens)
I
ADJ. Location ADJ. Value
EVR CH7, CH8, CH9, CH1O
Preparation:
● Short pin @ and pin @ of J9001.
Adjusting method:
1. Press the RESET key once (when using VJ8-01 03).
Press the RESET key and AID key simultaneously, and
then release the RESET key first (when using VJ8-0141 ).
2. Press the READ key once while pressing the AID key and
read out all the EVR data.
3. Adjust the gain and phase of the vectorscope so that the
burst becomes 75’%..
4. Adjust the white balance temporarily. Designate CH11
and CH12 and match the white vector of the color bar
with the center of the vectorscope. Press the WRT key
pressing the AID key to store the temporary adjusting
data.
5. Adjust the four EVRS of CH7, CH8, CH9 and CH1O
alternately so that the luminance points which indicate
red and yellow vectors are on the points as shown in the
figure respectively.
6. Press the WRT key once while pressing the AID key to
store the adjusting data.
10. 5,1OOK AWB Adjustment
IAII white pattern
ADJ. Loc&ion ADJ. Value
EVR CH1l, CH12
Preparation:
● Short pin @ and pin @ of J9001.
Adjusting method:
1.Set the gain so that the burst comes to the end of the
vectorscope.
2. Press the RESET key once (when using VJ8-01 03).
Press the RESET key and AID key simultaneously, and
then release the RESET key first (when using VJ8-0141 ).
3. Press the READ key once while pressing the AID key and
read out all the EVR data.
4. Adjust two EVRS of CH11 and CH12 mutually so that the
white vector displayed luminance point is positioned on
the point as shown in the figure.
5. Press the WRT key once while pressing the AID key to
store the adjusting data,
I
EVR CH7 R – YGAIN
I
EVR CH8 B–YGAIN
EVR CH9 R – Y MATRIX
EVR CH1 O B – Y MATRIX
EVR CHI 1 R CONTROL
EVRCH12 B CONTROL
11.
2,800K AWB Adjustment
All white pattern (Place two LBA8s in
front of the lens)
I
ADJ. Location
ADJ. Value
VR933 (R. G), VR934 (B. G)
– 12
