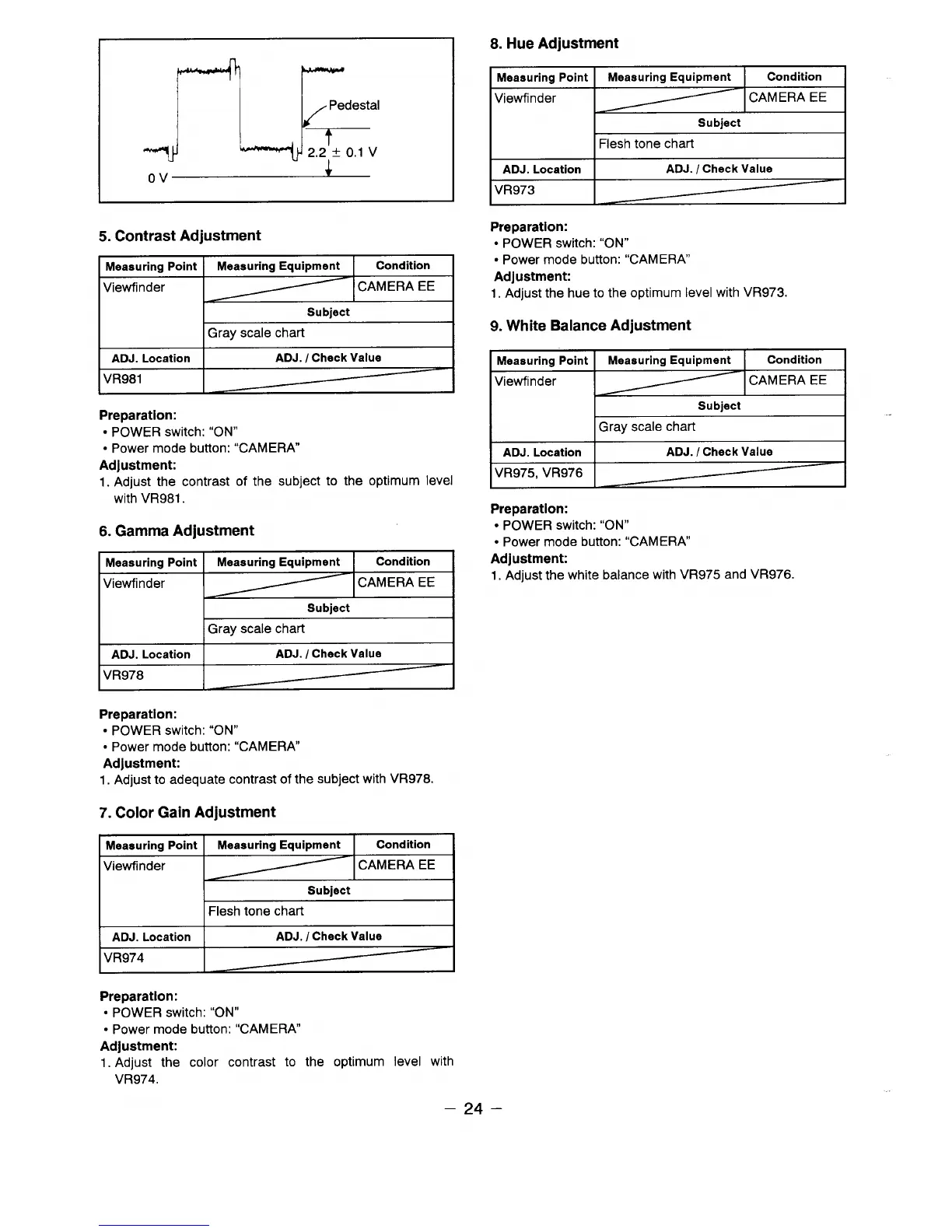

Sanyo VM-EX400P - Page 24

mJ
Pedestal
2.210.1 ~
5. Contrast Adjustment
Measuring Point
Measuring Equipment
Condition
Viewfinder
CAMERA EE
Subject
Gray scale chart
ADJ. Location ADJ. / Check Value
VR981
Preparation:
● POWER switch: “ON”
● Power mode button: “CAMERA
Adjustment:
1.
Adjust the contrast of the subject to the optimum level
with VR981.
6. Gamma Adjustment
Measuring Point Measuring Equipment
Condition
Viewfinder
CAMERA EE
Subject
Gray scale chart
ADJ. Location ADJ. / Check Value
VR978
Preparation:
● POWER switch: “ON”
● Power mode button: “CAMERA
Adjustment:
1. Adjust to adequate contrast of the subject with VR978.
7. Color Gain Adjustment
Measurina Point I
Measurinq Eauipment
Condition
I
-..
1
Viewfinder
CAMERA EE
Subject
Flesh tone chart
ADJ. Location ADJ. / Check Value
I
VR974
8. Hue Adjustment
Measuring point I Measuring Equipment
I
Condition I
Viewfinder
CAMERA EE
Subject
I
Flesh tone chart
1
I
ADJ. Location ADJ. / Check Value
Preparation:
● POWER switch: “ON”
● Power mode button: “CAMERA
Adjustment:
1, Adjust the hue to the optimum level with VR973
9. White Balance Adjustment
Measuring Point
Measuring Equipment Condition
Viewfinder
CAMERA EE
Subject
Gray scale chart
1
! ADJ. Location ADJ. / Check Value
I
Preparation:
● POWER switch: “ON”
● Power mode button: “CAMERA
Adjustment:
1.
Adjust the white balance with VR975 and VR976.
Preparation:
● POWER switch: “ON”
● Power mode button: “CAMERA
Adjustment:
1. Adjust the color contrast to the optimum level with
VR974.
–24–
