Installation and Starting Up 5
Installation of the presterilized When unpacking the components please check whether the packaging is intact
Single use Bag Loop and no damage to the individual components is visible. Also, make sure that during
the installation no parts are being damaged or contaminated.
Procedure 1. Installation of Self Contained Unit following the instructions listed below.
2. Hang the recirculation Bag on the Bag holder and mount pressure sensor
on Bag holder.
3. Install the Pump element in the peristaltic pump.
4. Mount the Feed pressure sensor.
5. Connect Feed line to filter element using OPTA.
6. Connect Retentate line to filter element using OPTA.
7. Mount the Retentate pressure sensor.
8. Mount the Retentate valve body.
9. Mount the Retentate flow sensor.
10. Connect Permeate line to filter element using OPTA.
11. Mount the Permeate pressure sensor.
12. Mount the Permeate valve body.
13. Mount the Permeate flow sensor.
Further instructions see below
Pressure sensor 1. Remove the membrane Protection element from the locator on the
pressure sensor.

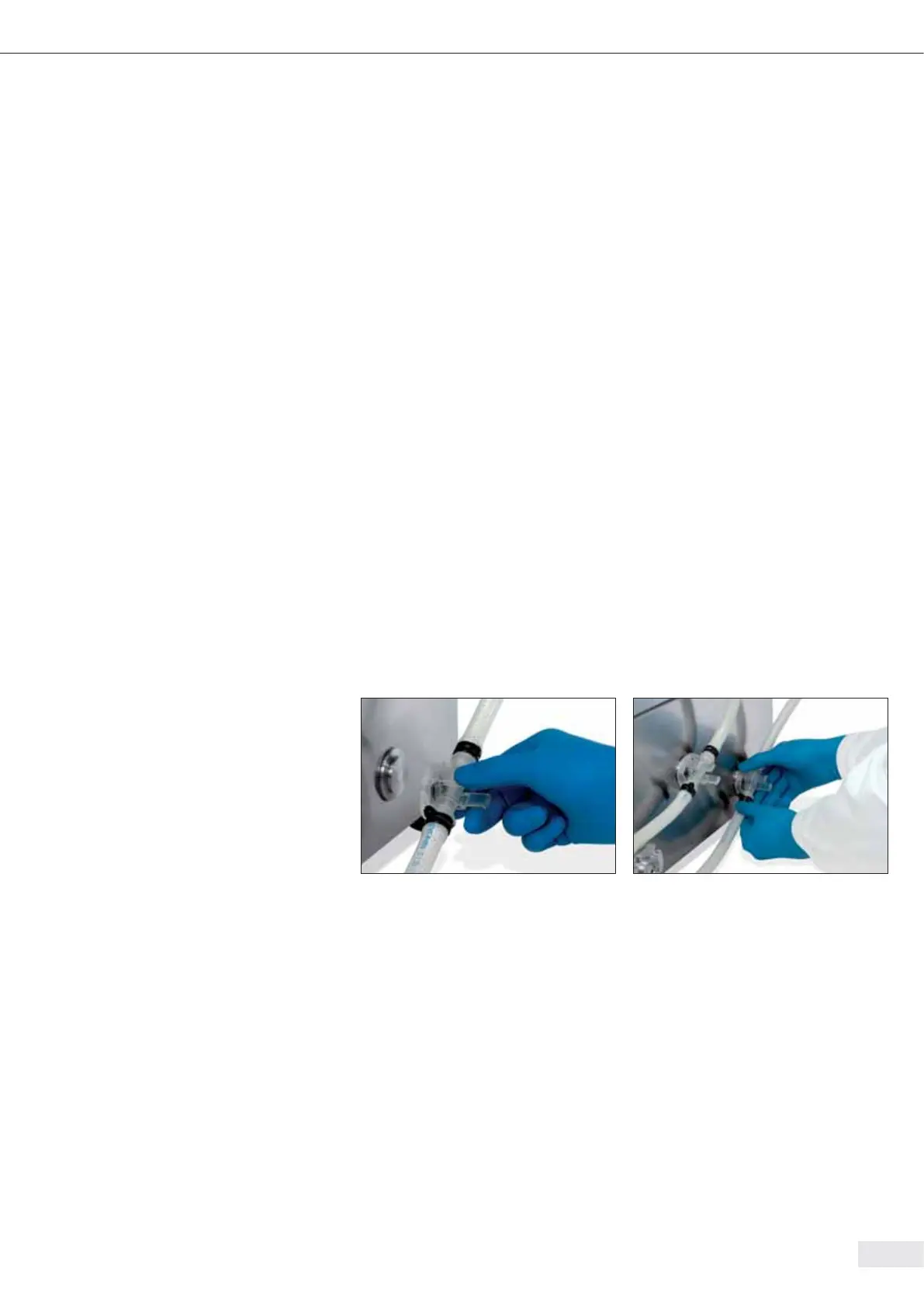

2. Mount the open locator together with the pressure dome on the pressure
transducer. It is important to ensure that the locator is aligned as shown
in Figure 1. By applying light pressure on the two bars the gap is expanded and
the pressure dome reaches into the groove of the transducer for fixation.
3. Turn the locator to 90 degrees – shown in Figure 2
Figure 1 Figure 2
