Display and keypad: Combics 3
5

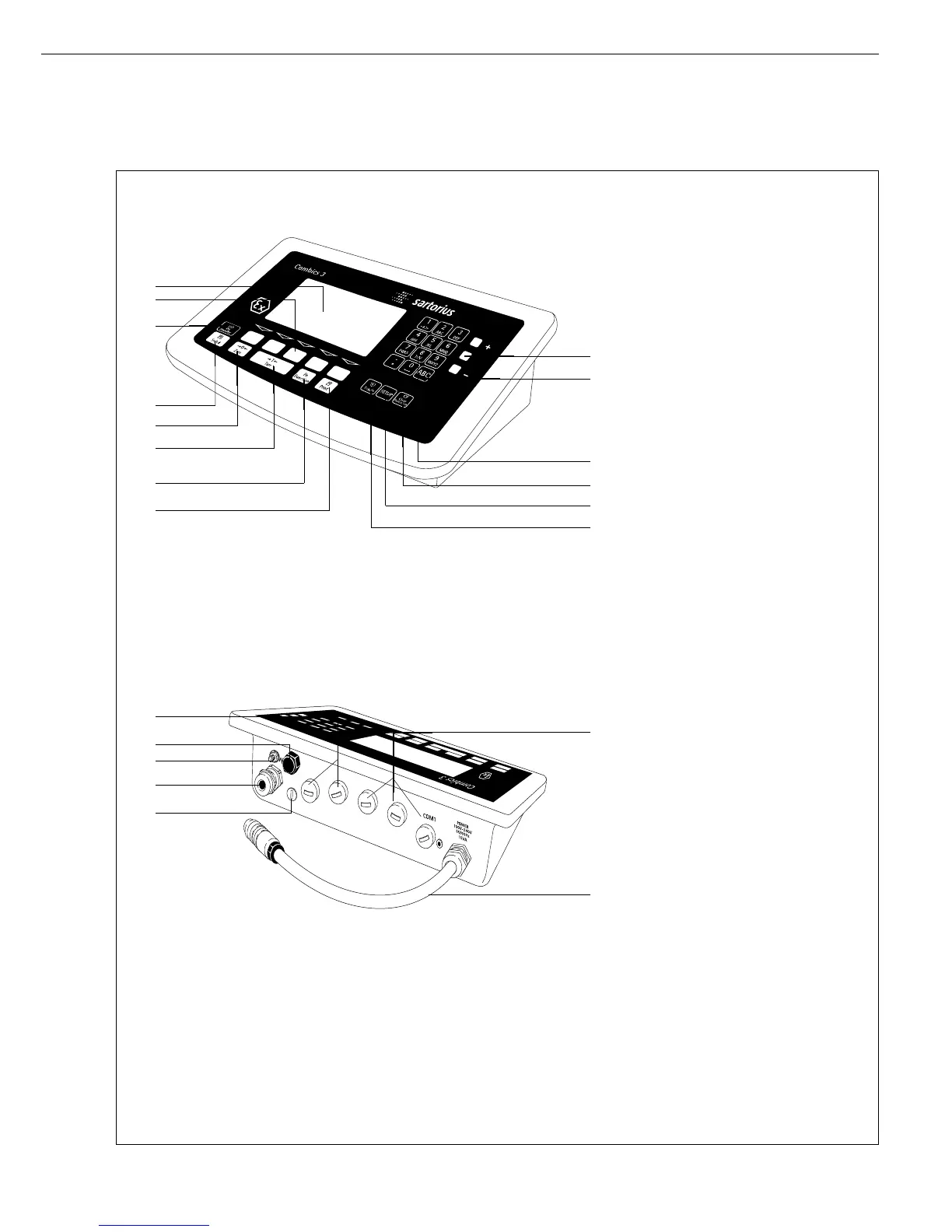

General View of the Equipment
1
2
3
4
5
6
15
16
14
13
12
11
10
9
8
7
21
20
19
18
17
Display and Keypad:
1 LEDs (for checkweighing and
classification)
2 Toggle to alphabetical input
3 Alphanumeric keypad
4 CF key (clear function)
5 Settings: Access Setup program
6 Toggle to the application
program | application-specific
information
7 Data output key
8 Gross/net, 2nd unit or 10+ higher
resolution (depending on the
settings)
9 Tare key
10 Zero key
11 Toggle to different weighing
platform
12 On/off key
14 Graphic-capable dot-matrix
display
Rear View
15 COM1: RS-232C interface
16 DC adapter cable
17 Menu access switch
(standard operating mode or
legal metrology mode)
18 Connector for weighing platform
19 Equipotential bonding conductor
(ground)
20 Vent valve; torque: 1.5 Nm
21 COM2 interface
Rear view:
