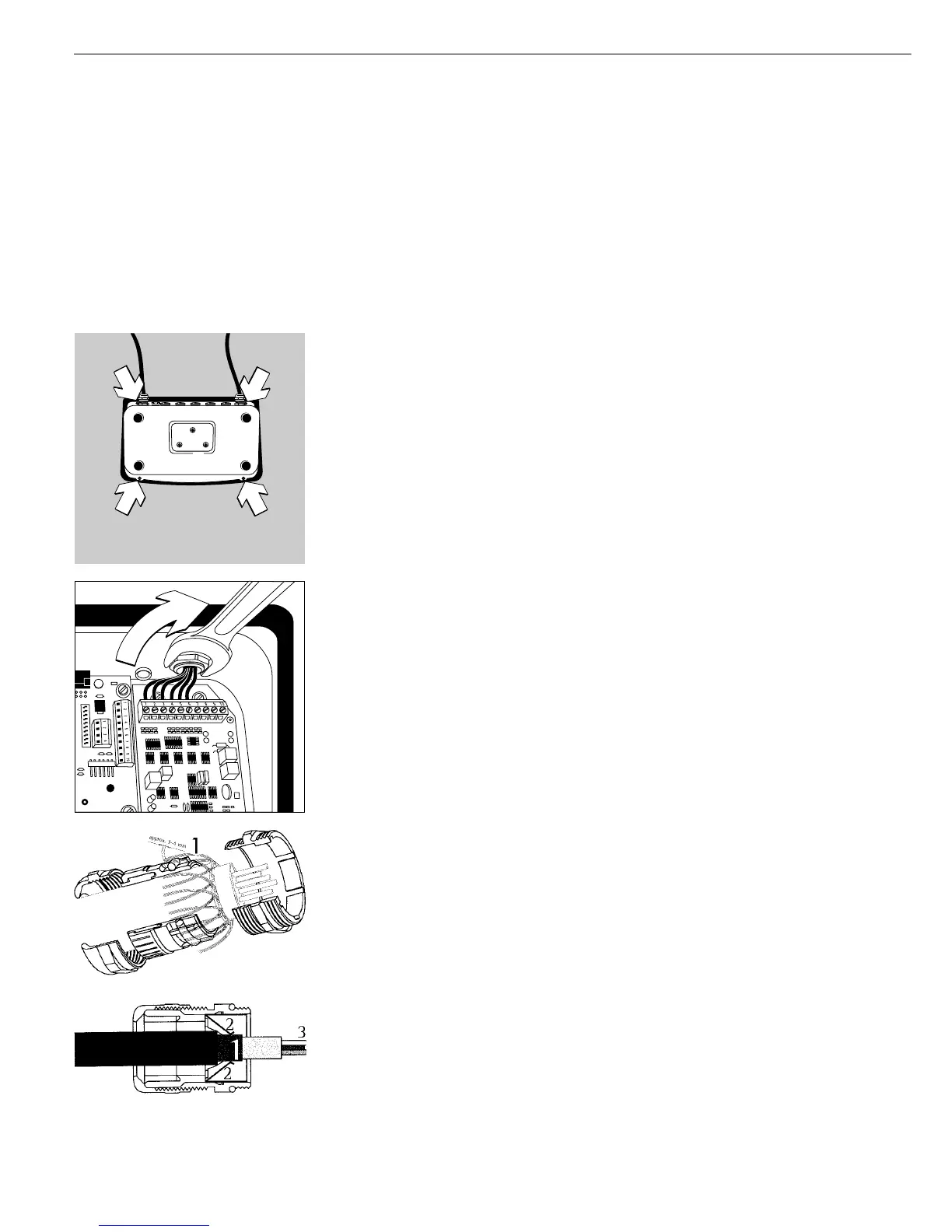

Installing the Weighing Platform
The connecting cable should be installed by a certified technician who has received spe-
cialized training from Sartorius.
! Installation work that affects the IP67 protection rating must be performed with extreme
care.
! Any installation work that does not conform to the instructions in this manual will result
in forfeiture of all claims under the manufacturer’s warranty.
! Always make sure the equipment is disconnected from power before performing any
installation, maintenance or repair work.
! An IP67-protected cable gland is installed on the indicator at the factory.
§ To open the indicator, remove the four screws from the front panel and remove the panel.
§ Use the connecting cable from the weighing platform to connect the indicator.
! The cable gland is installed at the factory. Please use extreme caution when performing
any work on the equipment that affects this cable gland. Use a torque wrench and
tighten the cable gland to 5 Nm.
§ Prepare and install the cable as follows:
Route the cable through the cable gland.
Close and tighten the cable gland in accordance with the applicable regulations.
Remove the insulation from a section of the cable end (see illustration). The shielding (1)
must have contact with the clamps (2).
Expose approx. 15 cm (6 inches) of the individually isolated wires (3) for installation.
Route the cable through the cable gland.
It is important to make sure that the shield is in contact with the clamps, because the
shield provides the ground connection for the cable.
