! YPS03-X... Flameproof AC Adapter (Power Supply):
– Install both cables so that they are stationary
– Flexible cables with threaded fasteners are
available on request
To operate the scale in a Zone 1 hazardous area or
a Class I, Division 1 hazardous (classified) location,
please comply with the following:
– Currently valid standards and regulations for
installation of explosion-protected equipment in
such areas
– Installation must be carried out by a certified
electrician
! Within the hazardous area/location, the following
equipment must be connected to a main grounding
(earthing) terminal:
– Scale
– YPS03-X.. AC adapter (power supply)
– Zener barrier
§ Plug the female connector of the intrinsically safe
AC adapter (power supply) cable into the male
socket on the scale. Secure this connection by
tightening the knurled collar.

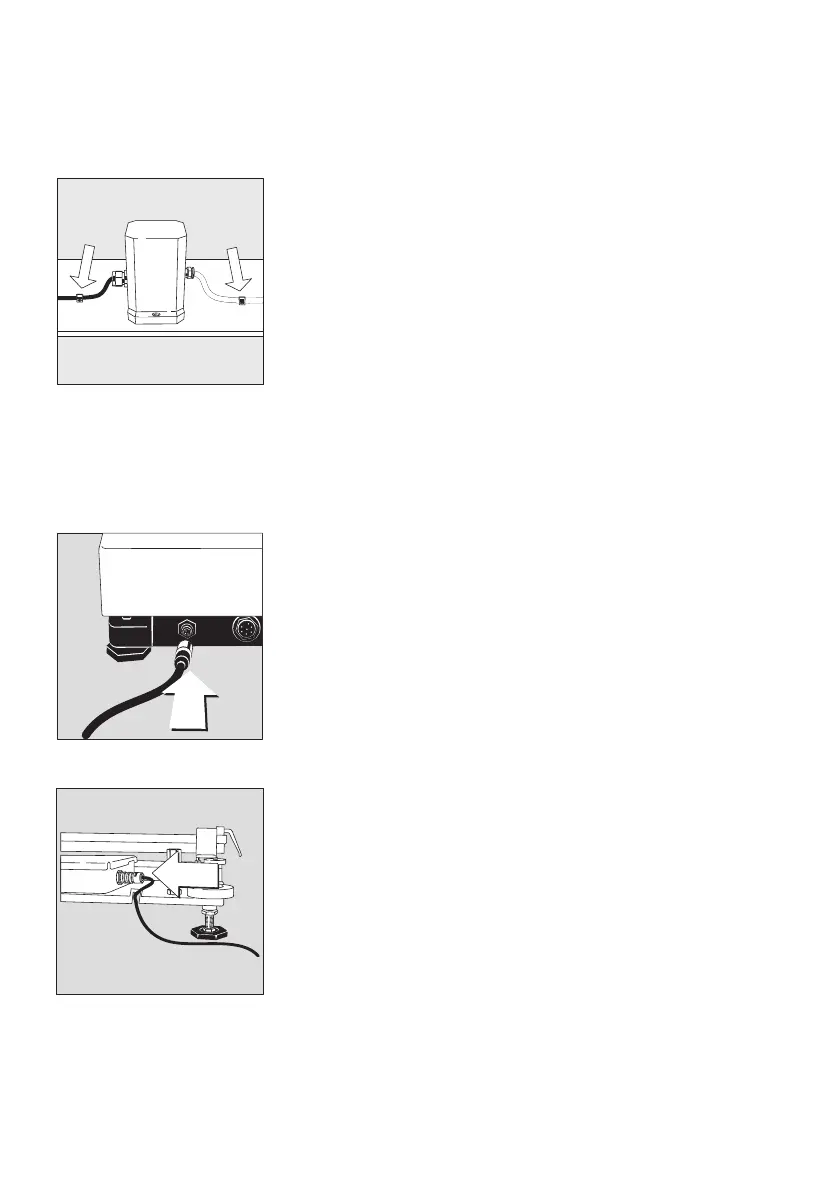

To connect the EB..FEG.. model:
Hold the scale so that the edge extends over the
edge of the table so you can tighten the knurled
collar from below
! Install the power cable so that it is protected from
damage.
$ The intrinsically safe connector for the power cable
of YPS03-X... AC adapters (power supplies) is not
part of the standard equipment supplied.
EB...DCE-IX, EB...EDE-IX:
EB...FEG-IX:
