23

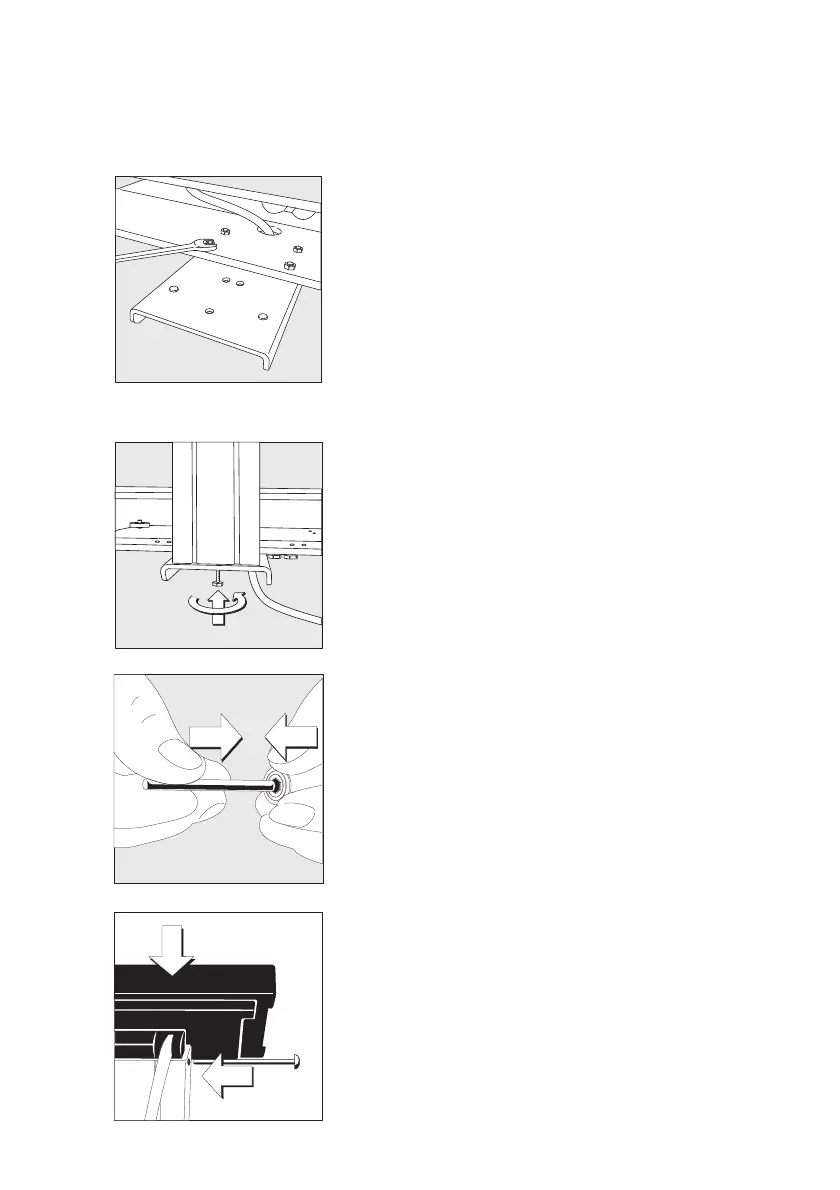

● Use a 7-mm open-end wrench to fasten the
4 hexagonal nuts that attach the column retainer
to the base plate of the scale.
● Gently turn the scale right side up.
● Use the Phillips screw supplied (4x20 mm) to
attach the column to the retainer. The two raised
metal buttons on the column retainer prevent the
column from turning while you tighten the screw.
● Attach one of the two cap-shaped lock washers
supplied to the bolt provided.
● Insert the fastener located on the rear panel of
the display and control unit into the upper end of
the column. The spring inside the column housing
must lock into place within the cylindrical notch.
Align the 4 bore holes of the display and control
unit with the 3 column bore holes so you can
insert the bolt.
