73
Wiring Diagram (for connecting a PC)
YCC01-03ISM5 adapter cable <– > round DB25-PC
for connecting a PC to the scale via a Zener barrier using the RS-232-C/
V24 protocol.

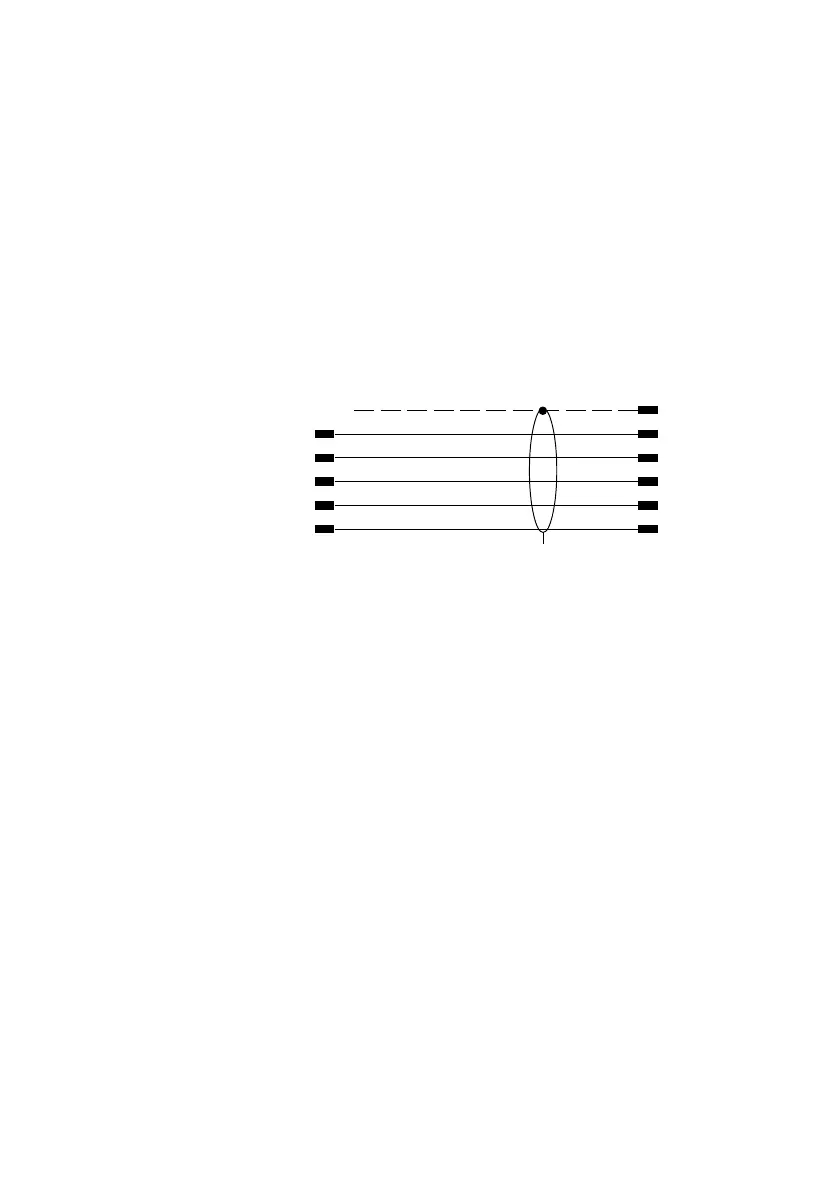

Wiring diagram:
Pin assignments for the cable from the Zener barrier to an RS-232 PC interface.
12-pin round connector 25-pin D-Sub female connector
Shield 1
Sgn GNDE 7
Barrier TxD B 3
side RxD C 2 PC side
DTR D 5
CTS H 20
(other pins not connected) Shield
both sides
