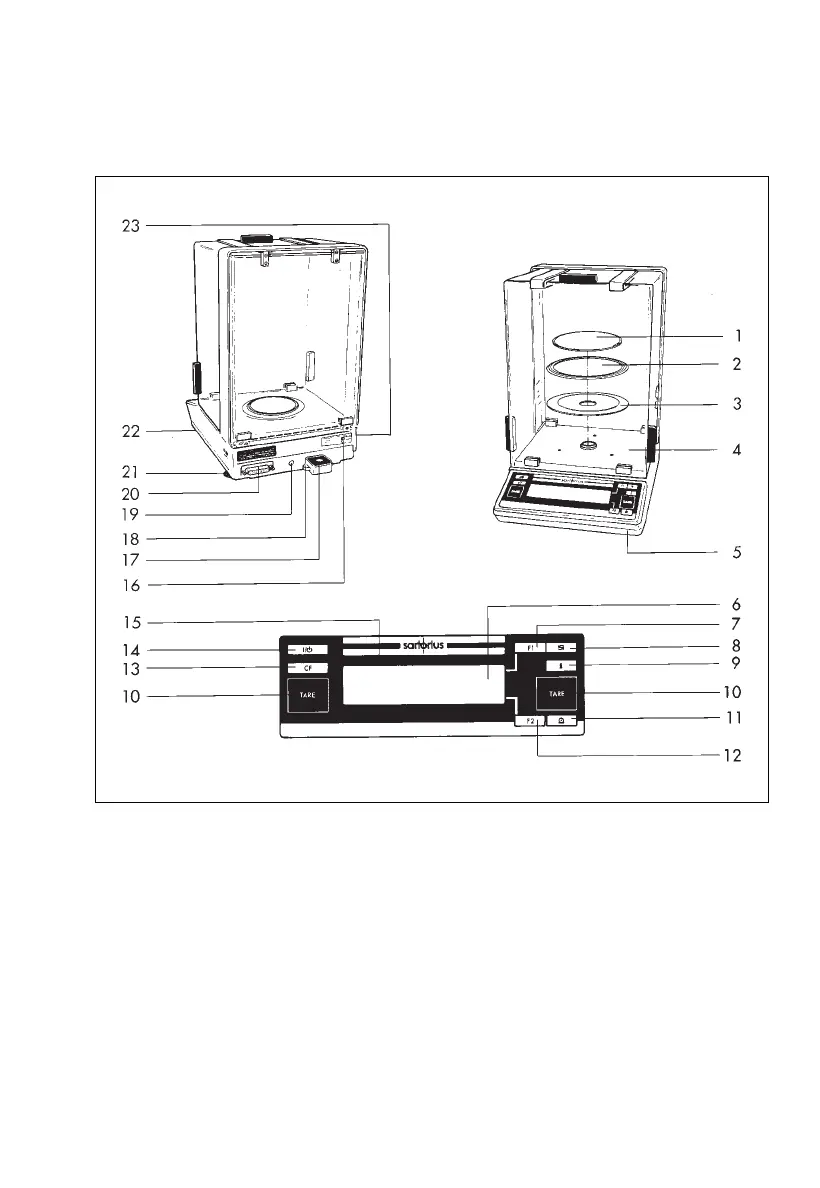

ACSeries Balances with an Analytical Draft Shield Chamber
1–1
1 Weighing pan
2 Protective ring
3 Shield plate
4 Draft shield base plate
5 Menu access switch
6 Weight display
7
f function key
8 w toggle key
9 Info key
10 Tare key
11 Print key p
12 F function key
13 c key
14 ON/OFF key e
15 Verification ID label with metrological
data for verified balances approved
for use as legal measuring instruments
16 Manufacturer’s label
17 Level indicator
18 Lug for attaching an antitheft locking device
19 AC jack/power receptacle
20 Data interface port
21 Leveling foot
22 Auxiliary foot
23 Metrological ID label
for verified balances approved
for use as legal measuring instruments
