SC12E
6 POINT LARGE MILLING CUTTERS

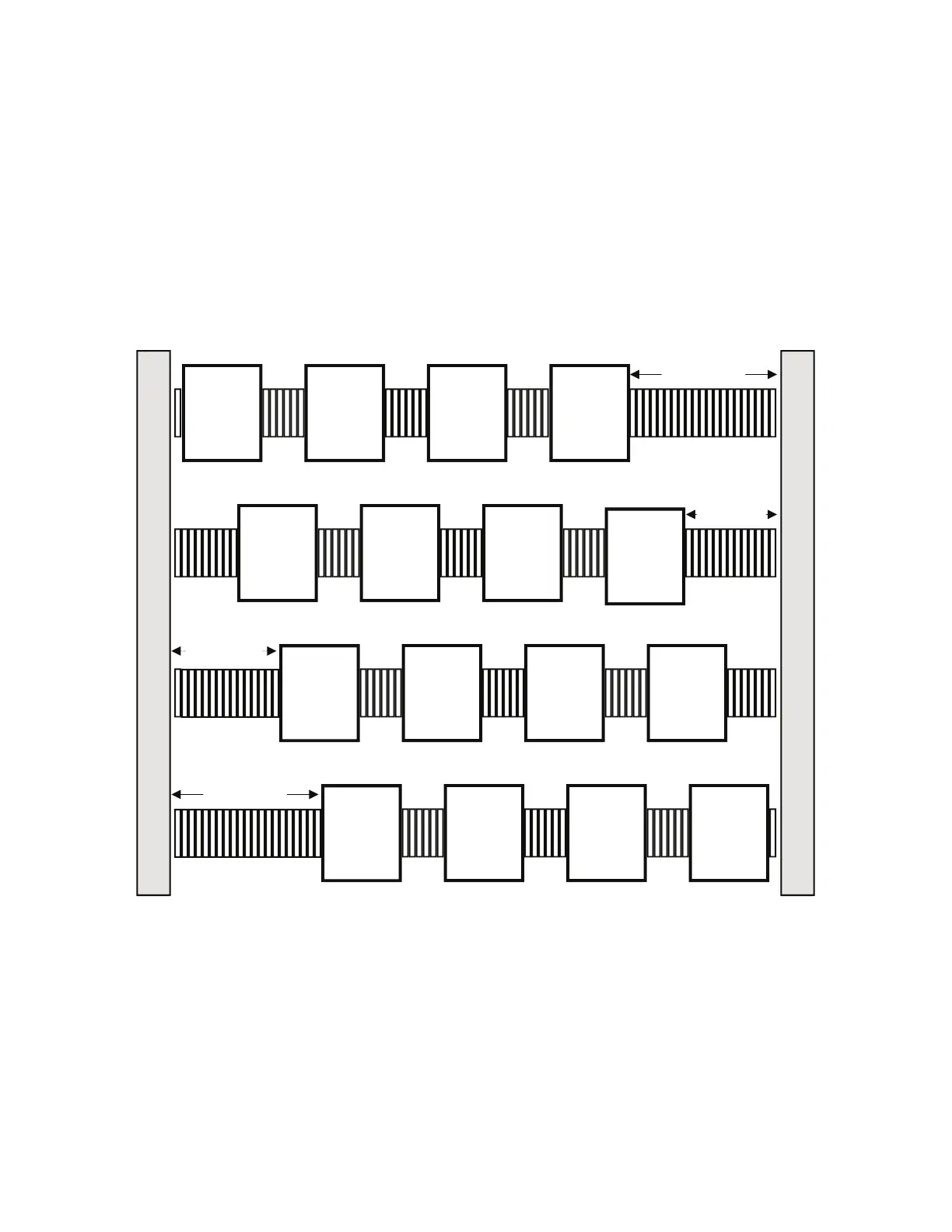

Theoretical Assembly
LRM VA30 S - 800.LRM.16/160
Components: 16 Cutters - 630.03.08
160 Spacers - 630.03.06
Attention: There can be a difference in number of spacers, but there must be a clearance of 1/8”
to 3/16” between the supporting segments.
21 SPACERS
15 SPACERS
21 SPACERS
13 SPACERS
