SC08E
5 POINT SMALL MILLING CUTTERS

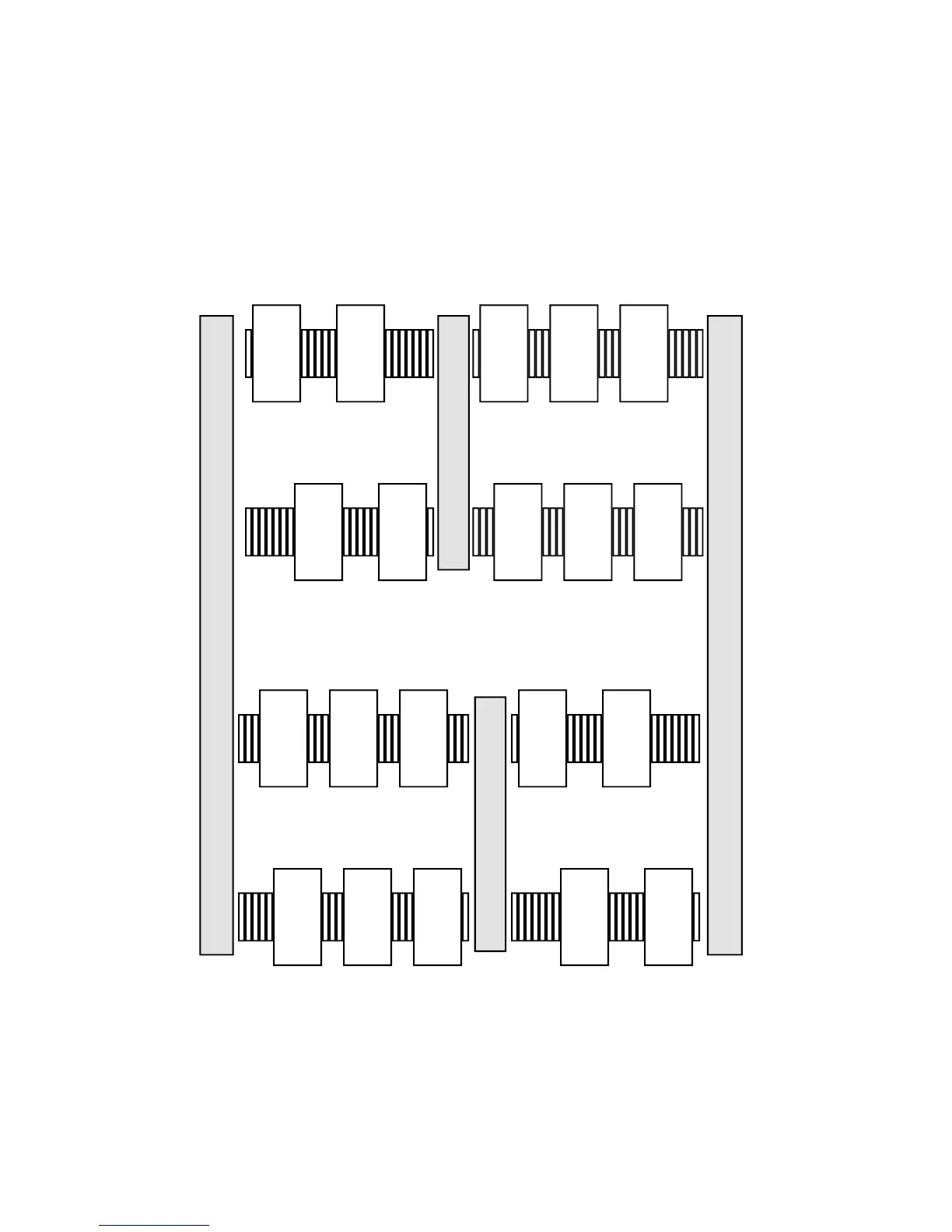

Theoretical Assembly
SRM FR 200 Cutter Set - 800.SRM.20/100
Components: 20 Cutters - 615.01.11
100 Spacers - 625.06.09A
Attention: There can be a difference in number of cutters, but there must be a clearance of 1/8”
to 3/16” between the supporting segments.
