battery life can be increased as much as fourfold. The option is only available in the ABAX 2
system. The device with ECO option enabled meets requirements of the EN50131-2-6
standard for Grade 2.
Test mode
The test mode makes the device testing easier, because the LED indicator is enabled.
How to start and end the test mode is described in the ABAX 2 / ABAX controller manual /
the INTEGRA 128-WRL control panel manual.
LED indicator
The LED indicator is flashing rapidly for about 10 seconds after the battery is inserted to
indicate that the process of selecting the device type can be initiated (see “Selecting device
type”).
The LED indicator also works in the test mode, in which it indicates:
• periodical communication – short flash (80 milliseconds),
• alarm – ON for 2 seconds.
Battery status control
When the battery voltage is below 2.75 V, information about low battery is sent during each
transmission.
Electronics board
Do not remove the electronics board from the enclosure to avoid damage to the
components on the board.

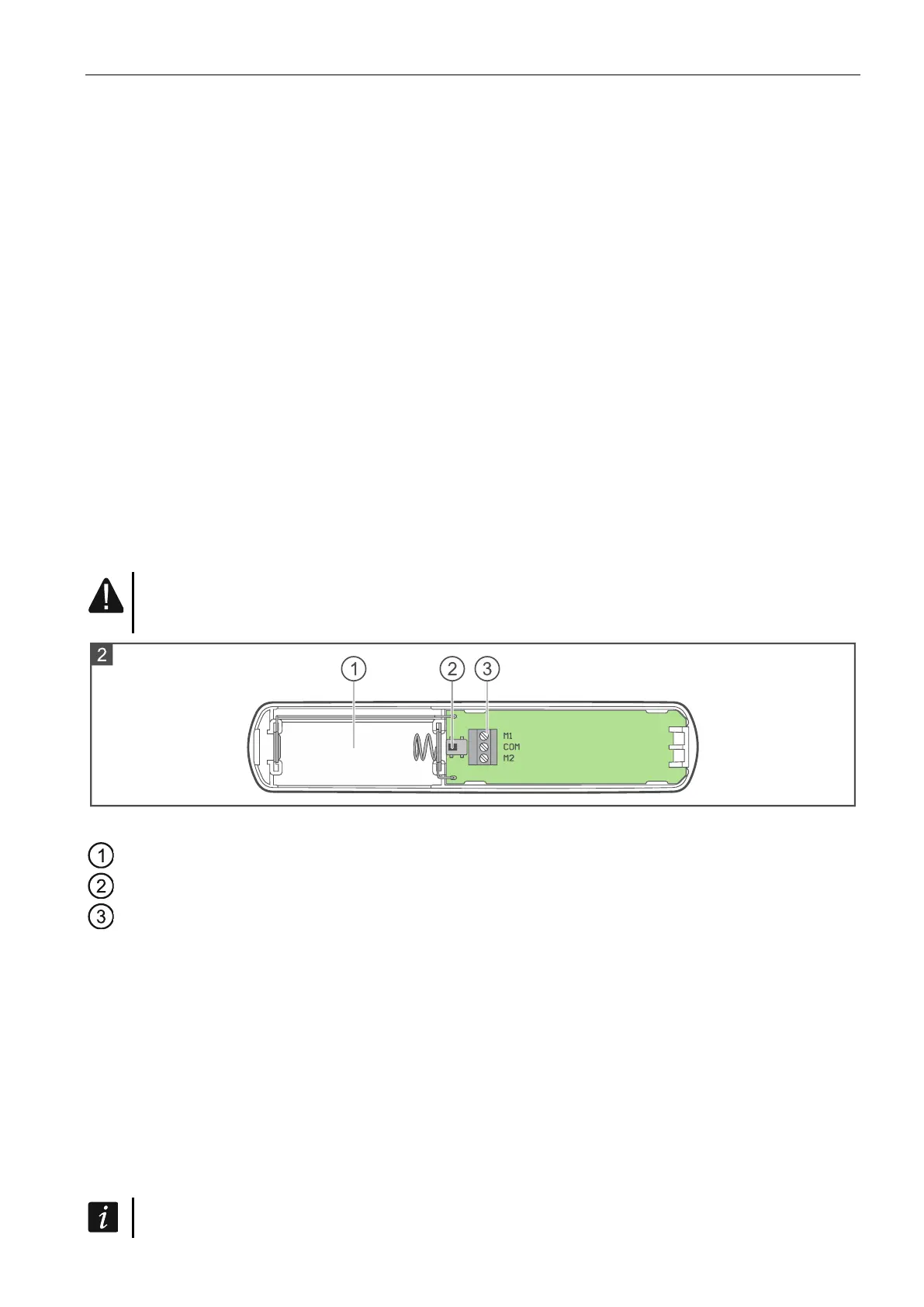

Fig. 2 shows the detector inside after opening the enclosure.
battery holder.
tamper contact.
terminal block:
COM - common ground.
M1 - input supported in the case of the AMD-200, AMD-201, AMD-202, AFD-200,
AVD-200 detectors and the ATX-220, ATX-230 zone expanders. It allows
connection of an NC type detector (AMD-200 / AMD-201 / AMD-202 /
ATX-220 / ATX-230 / AVD-200) or the flood probe (AFD-200).
M2 - input supported in the case of the AMD-202 detector and the ATX-220,
ATX-230 zone expanders. It allows connection of:
– AMD-202 detector / ATX-230 expander – roller shutter detector,
– ATX-220 expander – NC type detector.
To make the connection, use wires with a cross-section of 0.5-0.75 mm
2
. If no detector or
flood probe is connected to the input, the terminal must be connected to common ground.
The length of wires must not exceed 3 m.
