Satelec Cocoon Spray - 1.3 Installation and Use

b) Rear panel (Fig. 2)
• Pedal power socket (Fig. 2-1).
• Mains socket (Fig. 2-2).
• Fuses housing (Fig. 2-3).
• Flexible hose for connection to a water source
(Fig. 2-4).
c) Technical Data
Power supply : 230 VAC, 50/60 Hz
Class I equipment, BF Type
Fuses : 2 x 0.5 AT
Vibration frequency : 27 to 32 KHz
Water pressure : 1 to 5 bar (14.5 to 72.5 PSI)
Water filter : about 60 µm
Motor : 40000 rpm
Overall dimensions :
Depth : 180 mm Width : 230 mm
Height : 100 mm Weight : 3 Kg
Manufactured in accordance with Directive
89/336/EEC on electromagnetic compatibility.
1. 3 INSTALLATION AND USE
a) Recommendations
Before the unit is used for the first time, connect
the accessories and operate the spray for a few
minutes to rinse the water circuits inside the
instrument.
b) Connections
Rear panel of C
OCOON / COCOON SPRAY
:
Connect :
• The green water inlet tube (Fig. 2-4) to the
water supply source or to the pump (depending
on option).
• The mains power cable must be plugged into its
socket (Fig. 2.2) and to a socket connected to
earth (according to country).
c) Commissioning and use
Motor support installation
Observe correct direction of assembly of the
micromotor support; if reversed, there is a risk of
breakage (Fig. 3).
Suprasson handpiece connection
Connect the handpiece by plugging it into the
cable socket.
Do not rotate.

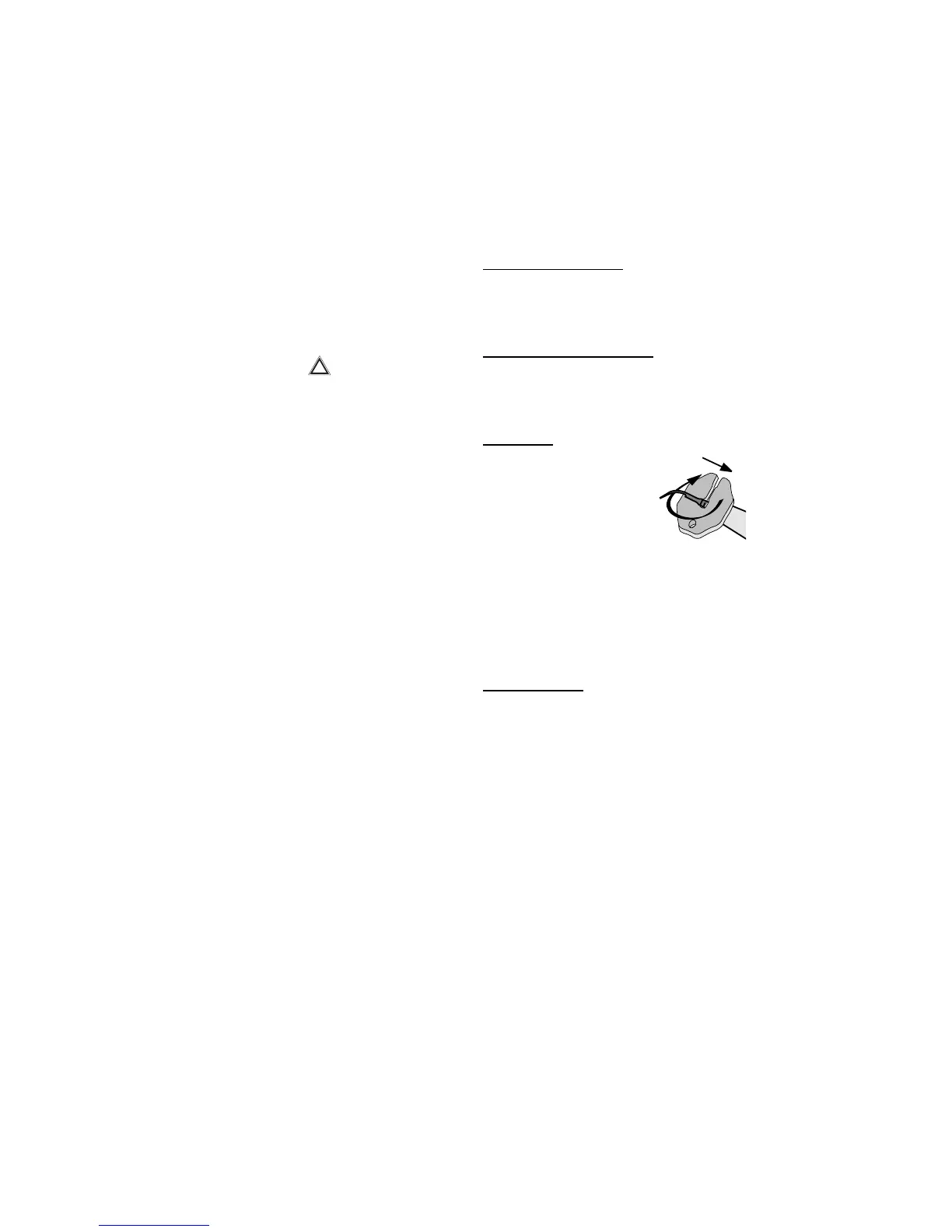

Tip mounting
The Suprasson handpiece is a
high technology instrument
requiring precautions for use.
The tip must be screwed and
moderately tightened by
means of the corresponding
wrench.
CAUTION : Correct tip vibration requires
perfect tightening without overtorquing beyond
the thrust point. Remove the tip after each
procedure to avoid self-jamming.
Scaling with Tip #1
Interdentium treatment (Fig. 4A)
Tooth neck and subgingival treatment (Fig. 4B)
Tangential application
- Do not apply the tip extremity directly onto the
tooth.
- Apply the tip firmly without pressure.
- The Suprasson handpiece reciprocates slowly
and evenly.
Suprasson COCOON / COCOON SPRAY adjustment
Average values for indication only
Tip #1 Min. power : 1
Max. power : 10
