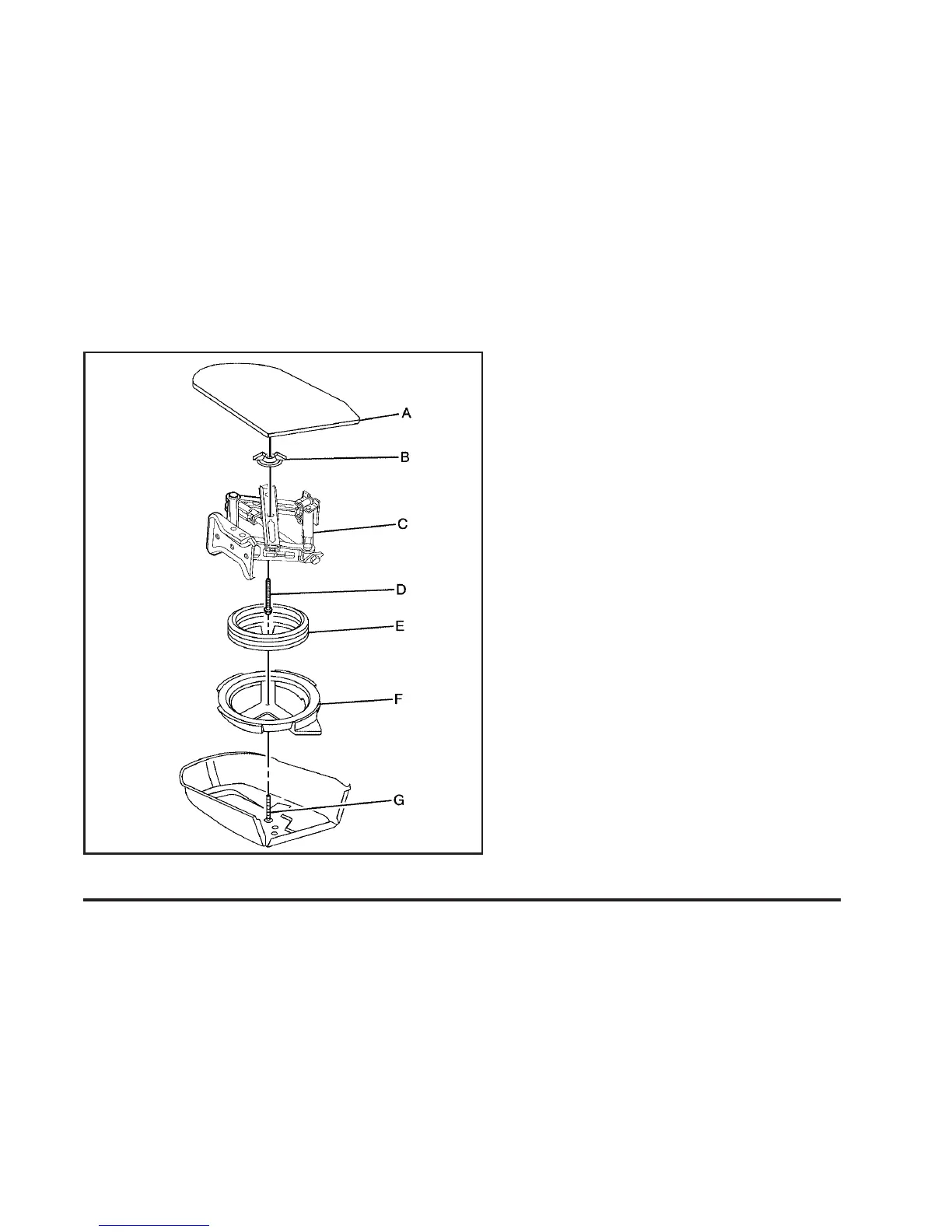

A. Cover
B. Retainer
C. Jack and Wheel Wrench
D. Stow Bolt Extension
E. Spare Tire
F. Foam Support
G. Bolt
To store a flat or spare tire and tools, do the following:
1. Remove the stow bolt extension rod and sleeve
from the jack.
2. Re-attach the wheel wrench to the jack.
3. Place the flat tire face down into the spare tire hub.
Avoid scraping the aluminum wheel, if equipped, on
the hold-down bolt.
4. Screw the stow bolt extension rod and the sleeve
into the existing spare tire hold-down bolt.
5. Place the jack into the center of the flat tire, being
careful not to scratch the inside of the wheel.
6. Place the smaller jack hold-down nut in a safe
place for use when you put the compact spare
tire back into the trunk.
7. Remove the plastic sleeve from the stow bolt
extension rod. Secure the jack and road wheel
using the larger plastic retainer.
