Relay Usage
ALC/PARK
RELAY
OnStar
®
, Radio, Instrument Panel
Cluster, Body Control Module (Entry
Control), Cigar Lighter, Headlamp
Switch, License Lamp
FUEL PUMP
RELAY
Fuel Pump
ACC RELAY
Power Windows, Sunroof, Radio,
Wiper/Washer Switch, Accessory
Power Outlet
RUN RELAY
Climate Control (HVAC Blower,
Control Heads)

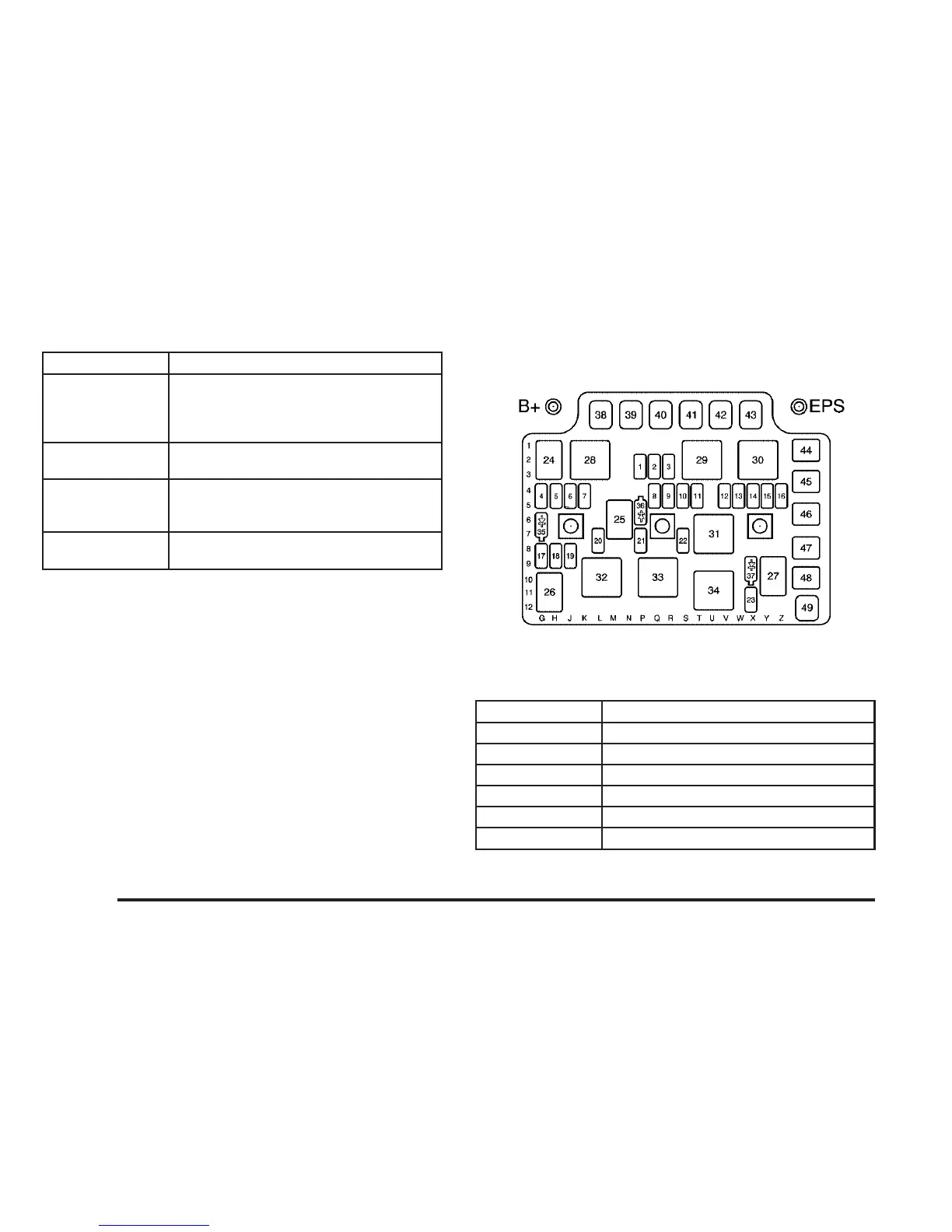

Engine Compartment Fuse Block
The engine compartment fuse block is located in
the engine compartment on the driver’s side of the
vehicle. See Engine Compartment Overview on
page 5-12 for more information on location.
2.2L L4 Engine
The Engine Control Module (ECM) Inline fuse is located
on the battery cable, near the battery.
Fuses Usage
1 Transaxle Control Module
2 Not Used
3 Not Used
4 Passenger’s Side Headlamp
5 Air Conditioning
6 Not Used
5-102
To Next Page
