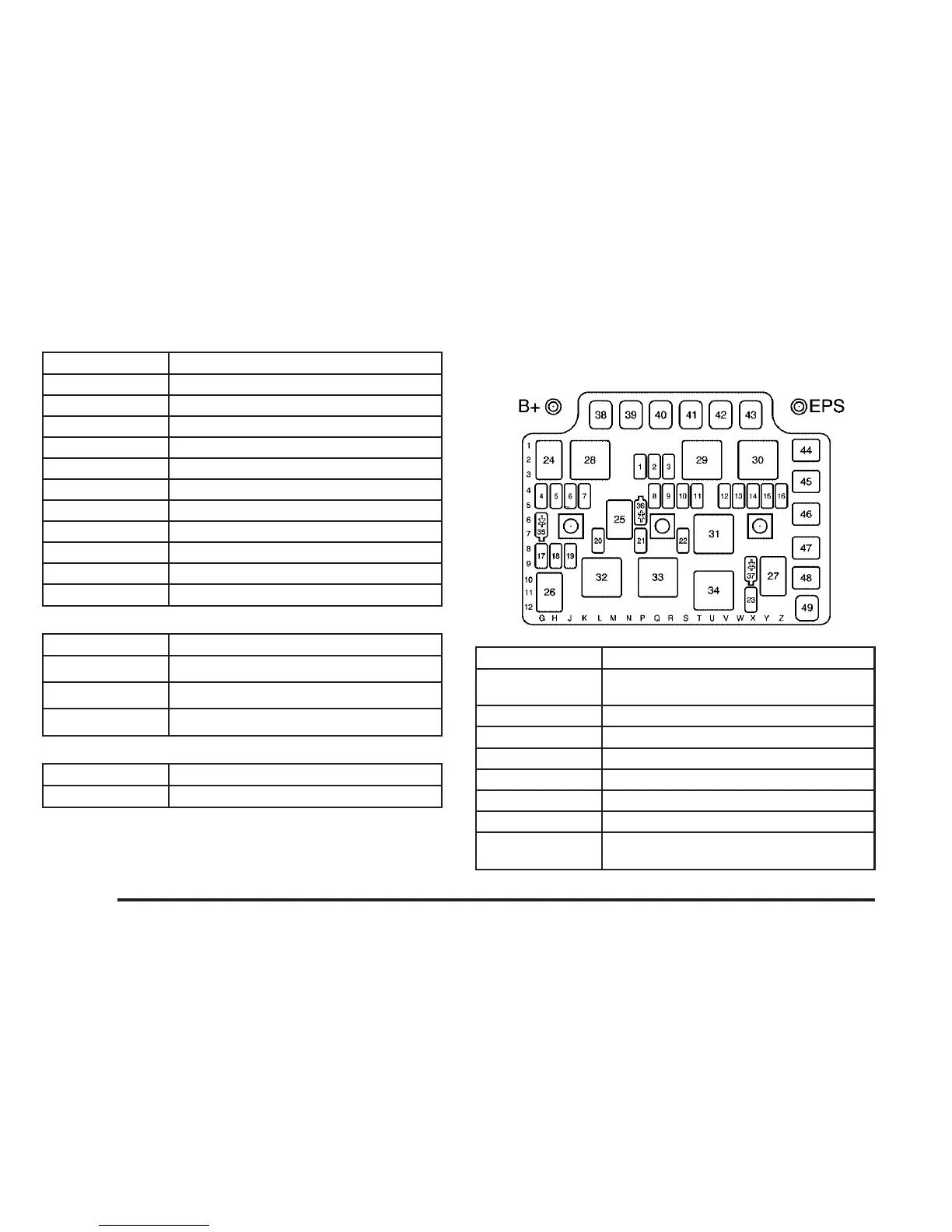

Saturn 2006 Ion - Page 342

Relays Usage
24 Air Conditioning Clutch
25 Horn
26 Fog Lamps
27 After Cooler Pump
28 Starter/Crank
29 Powertrain
30 Engine Cooling Fan 1
31 Engine Control Module
32 Wiper System 1
33 Wiper System 2
34 Rear Window Defogger
Diodes Usage
35
§
Air Conditioning Diode
36
§
Not Used
37
§
Wiper Diode
Miscellaneous Usage
49 Fuse Puller
2.4L LE5 Engine
Fuses Usage
1
Engine Control Module, Transaxle
Control Module
2 Not Used
3 Not Used
4 Passenger’s Side Headlamp
5 Air Conditioning
6 Not Used
7 Not Used
8
Anti-lock Brake System, Traction
Control Module
5-106
