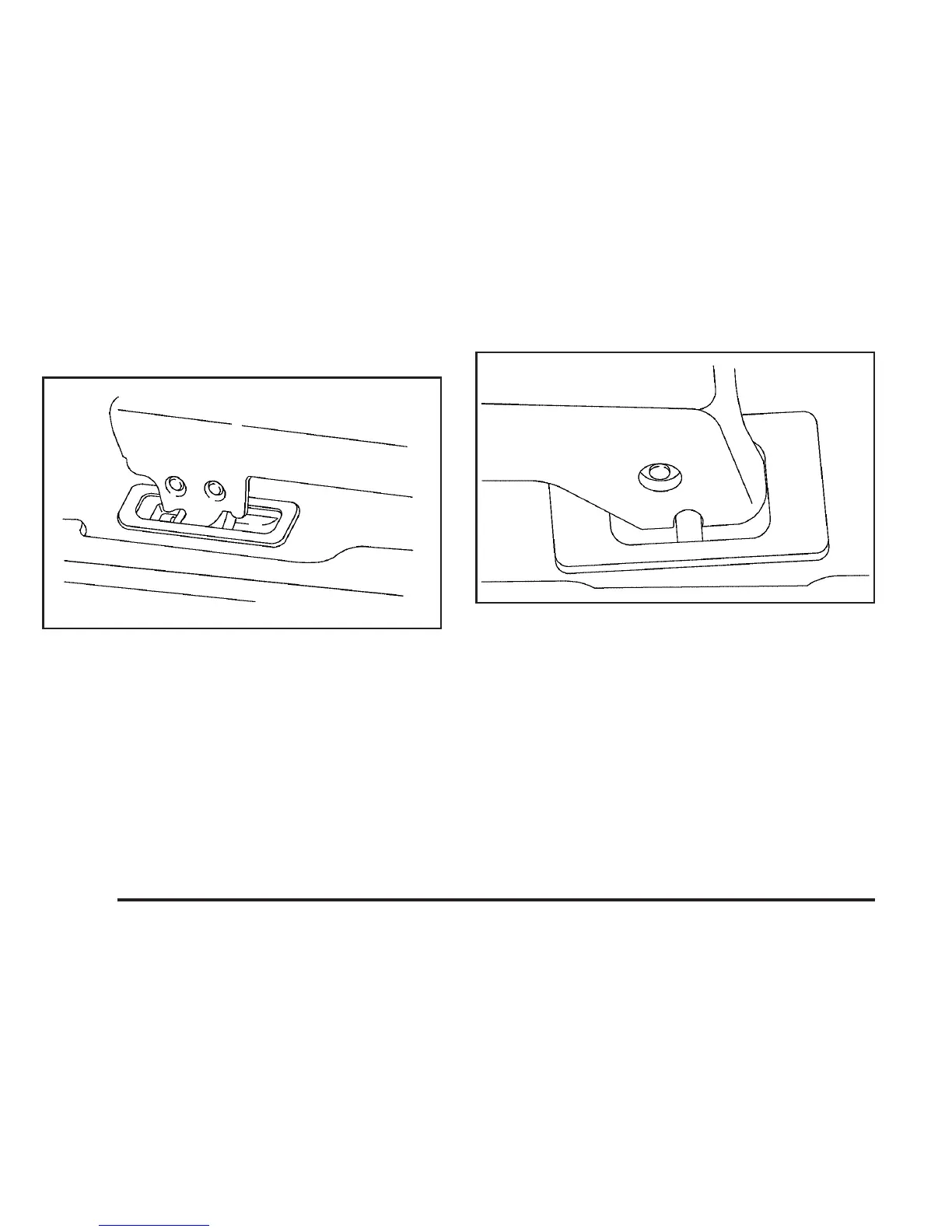

To
install
a
captain
chair,
do
the
following:
1.
Hook
the
front
latches
over
the
front
floor
pins.
2.
Push
the
rear
of
the
seat
down
to
lock
the
rear
latches
onto
the
rear
set
of
floor
pins.
3.
Push
and
pull
on
the
seat
to
be
sure
it
is
properly
attached.
