Front Turn Signal, Parking and
Daytime Running Lamps (DRL)

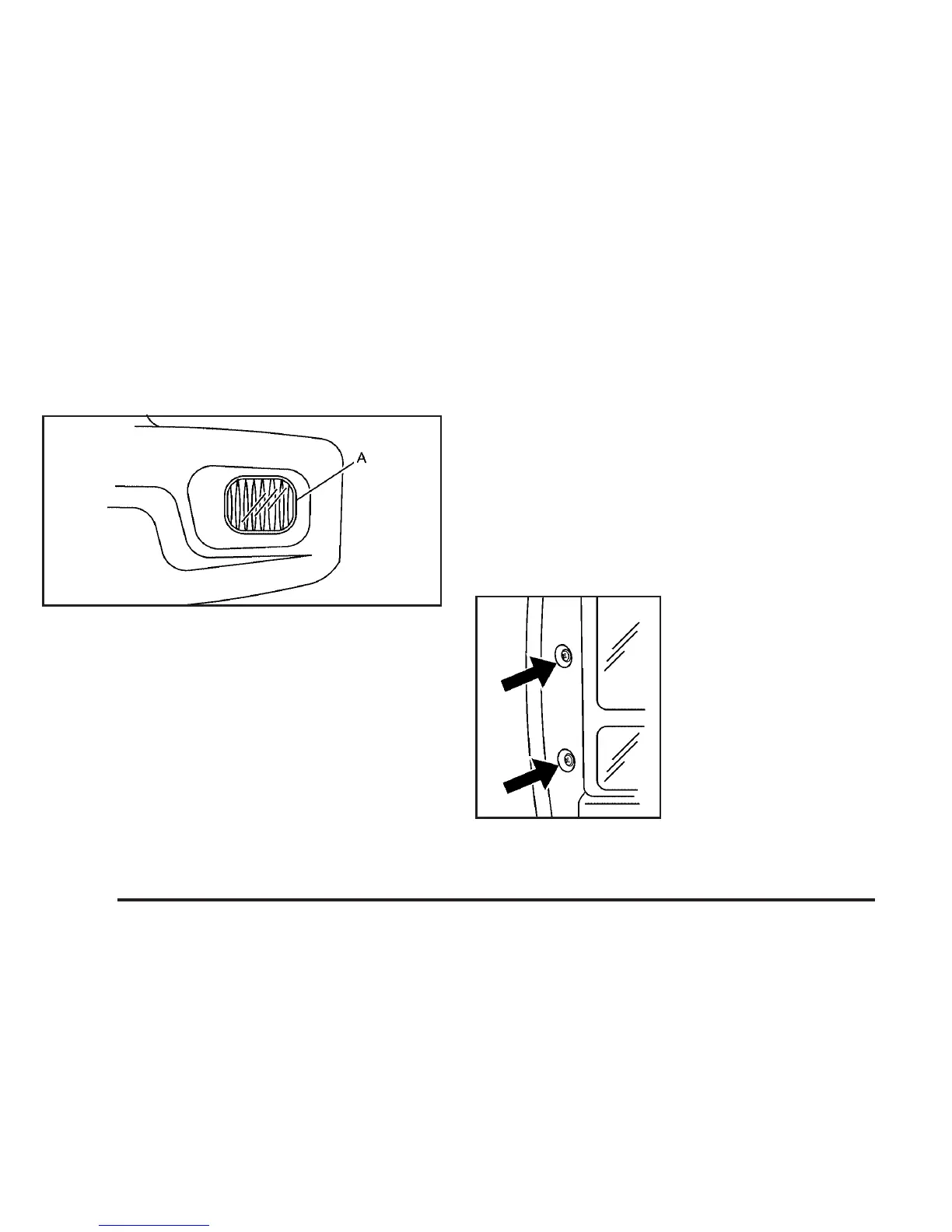

To replace one of these bulbs (A), do the following:
1. Follow the Steps 1 through 4 to remove the
headlamp assembly. See Headlamps and
Sidemarker Lamps on page 5-48 for more
information.
2. Turn the bulb socket counterclockwise to remove
from the assembly.
3. Pull the old bulb out from the bulb socket.
4. Replace with a new bulb.
5. Reinstall the bulb socket by inserting into the bulb
assembly and turning it clockwise to secure.
6. Reverse the steps to reinstall the headlamp
assembly.
Taillamps, Turn Signal, Stoplamps
and Back-up Lamps
To change a stoplamp/taillamp, turn signal or back-up
lamp bulb, do the following:
1. Open the liftgate. See Liftgate on page 2-24 for
more information.
2. Remove the
two screws from
the taillamp housing
on the inboard side.
3. Pull out the taillamp housing.
5-50
