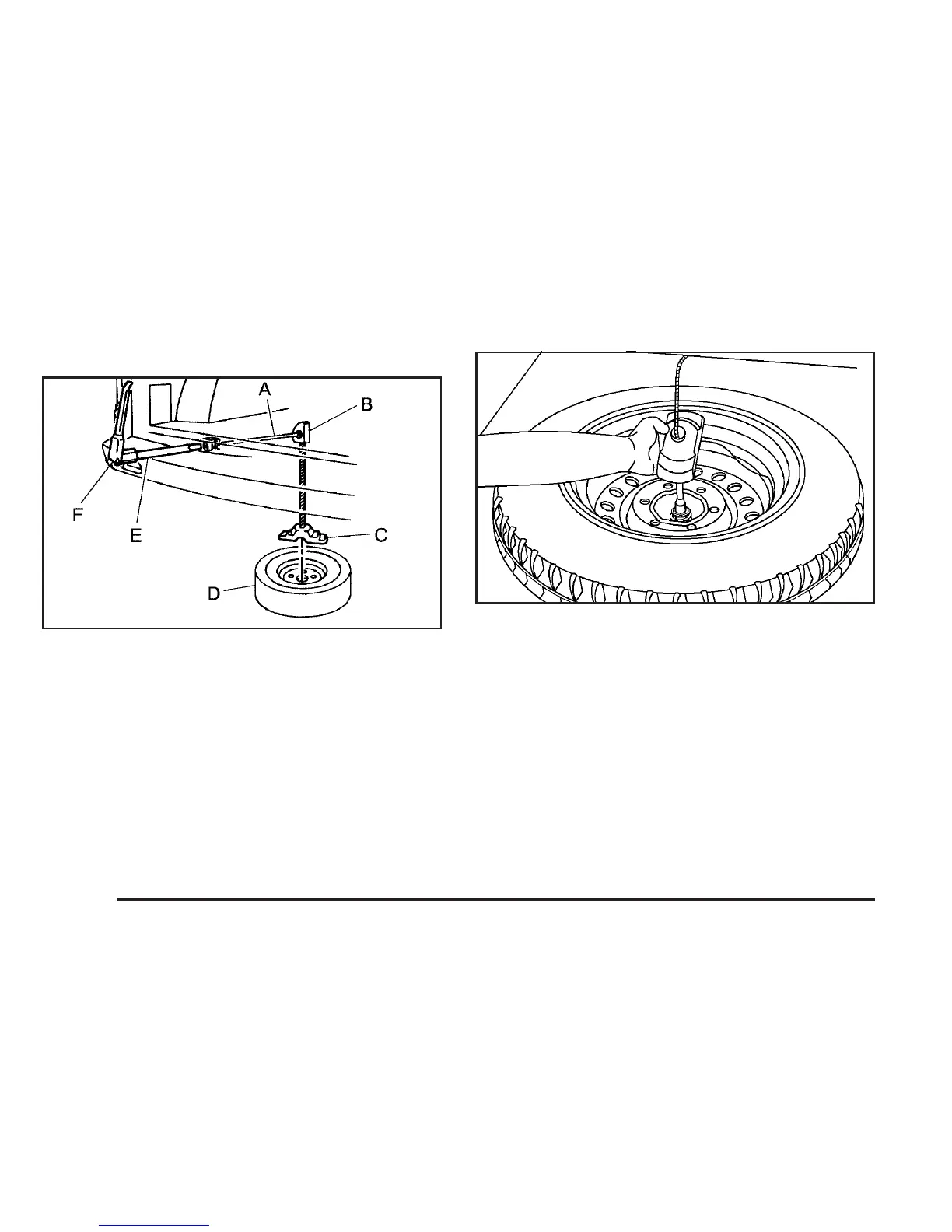

To remove the compact spare tire, do the following:
A. Hoist Shaft
B. Hoist Assembly
C. Retainer
D. Compact
Spare Tire
E. Extension
(Chisel End)
F. Folding Wrench
1. Attach the folding wrench (F) to the extension (E)
and insert the chisel end on an angle through the
hole in the rear bumper and into the hoist shaft (A).
2. Turn the folding wrench counterclockwise to lower
the compact spare tire (D) to the ground. Continue
to turn the wrench so the compact spare tire
can be pulled out from under the vehicle.
3. Tilt the retainer at the end of the cable to remove
the compact spare tire, so it can be pulled up
through the wheel opening.
If your vehicle is an AWD vehicle, after removing
the compact spare tire, turn the wrench clockwise to
raise the cable back up. On an AWD vehicle, you
can not store a full-size tire under the vehicle.
It should be stowed inside the vehicle by the cable
provided. See “Storing the Flat Tire on an
All-Wheel-Drive Vehicle” under Storing a Flat or
Spare Tire and Tools on page 5-83 for more
information.
5-74
