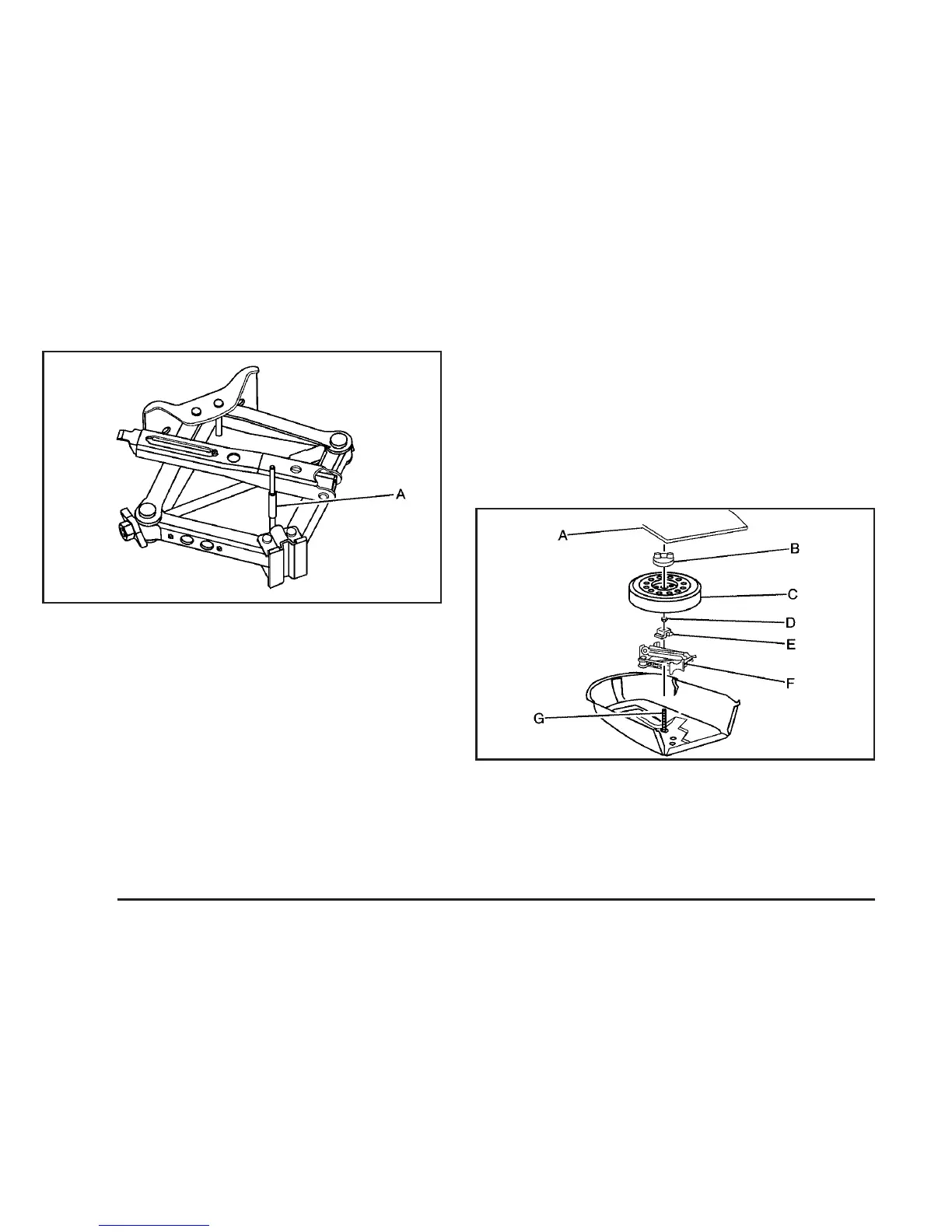

3. Place the jack over the bolt (A) on the floor,
making sure it contacts the bolt as shown,
and thread the jack retainer nut until it
contacts the jack.
4. With the valve stem up, place the tire on the
compartment floor with the rear of the tire
beneath the trim panel (tire may not lay
completely flat).
5. Line up the center hole of the wheel with
the bolt.
6. With the yellow cap in place to prevent the
wheel from being scratched, screw the bolt
extension onto the bolt through the wheel
nut hole.
7. Remove the yellow cap from the bolt extension.
8. Secure the tire and wheel with the larger
wing nut.
A. Cover
B. Retainer
C. Spare Tire
D. Wing Nut
E. Bracket
F. Jack, Wheel
Wrench, and Bolt
Extension
G. Bolt
380
