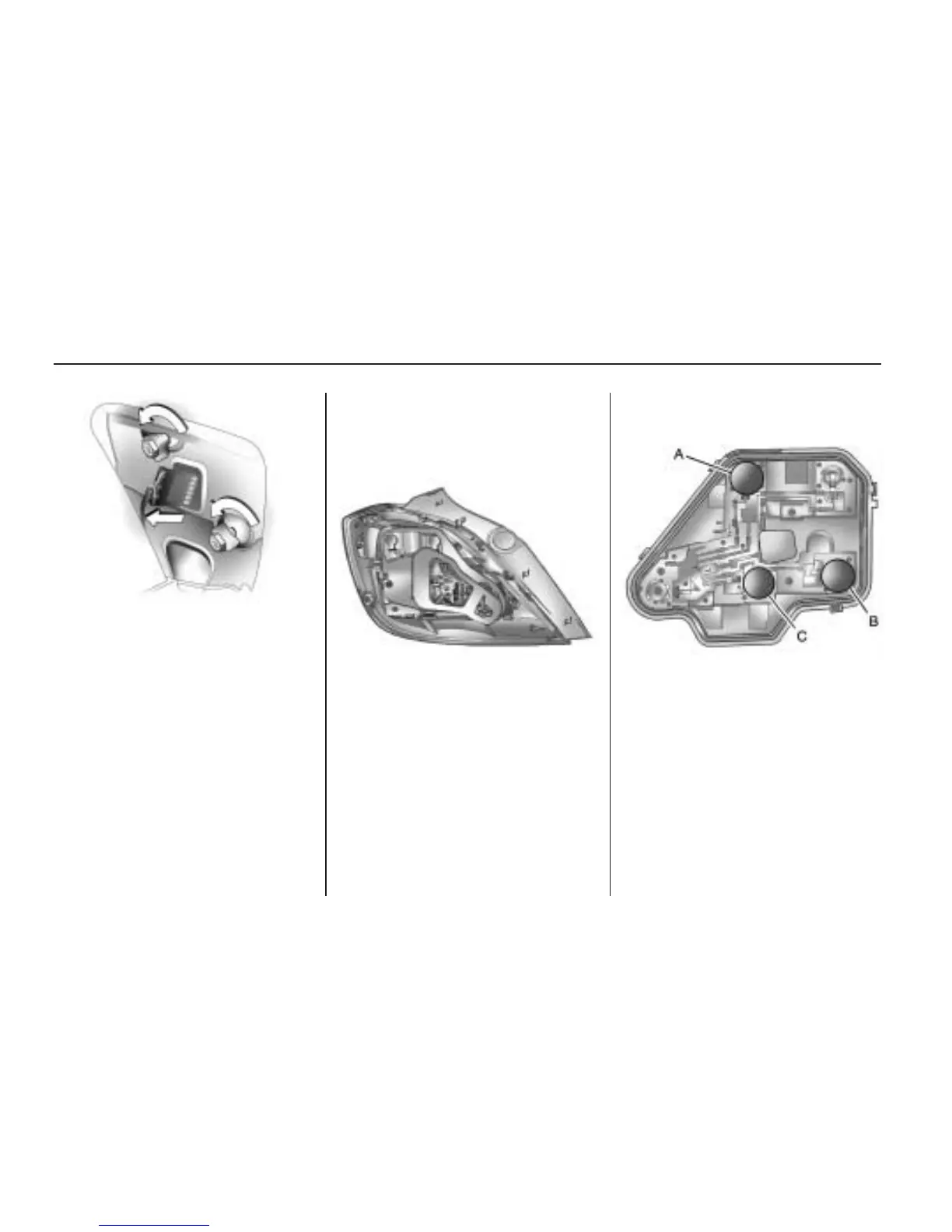

4. Turn the nuts counterclockwise
and hold the outside of taillamp
assembly.
5. Pull the taillamp assembly
straight out.
6. Remove the three nuts.
7. Press on the tabs on the outside
of bulb assembly and remove the
bulb assembly.
8. Remove the bulb from the bulb
assembly.
9. Install a new bulb without
touching the glass.
10. Reinstall the bulb assembly in
taillamp assembly.
11. Make sure the seals are applied
to the taillamp assembly and
screws.
12. Insert the taillamp assembly
into the body.
13. Reinstall the three nuts.
14. Attach the plug connector to the
bulb assembly.
Taillamps
(Three-Door Hatchback)
A. Backup Lamp
B. Taillamp
C. Taillamp/Stoplamp/Turn
Signal Lamp
9-30 Vehicle Service and Care
