Removing the Spare Tire and Tools
The tools needed to remove the spare tire are located
in the storage compartment on the driver side, at
the rear of the vehicle.
1. Open the jack storage compartment by squeezing
down on the latch tab and pulling the cover off.

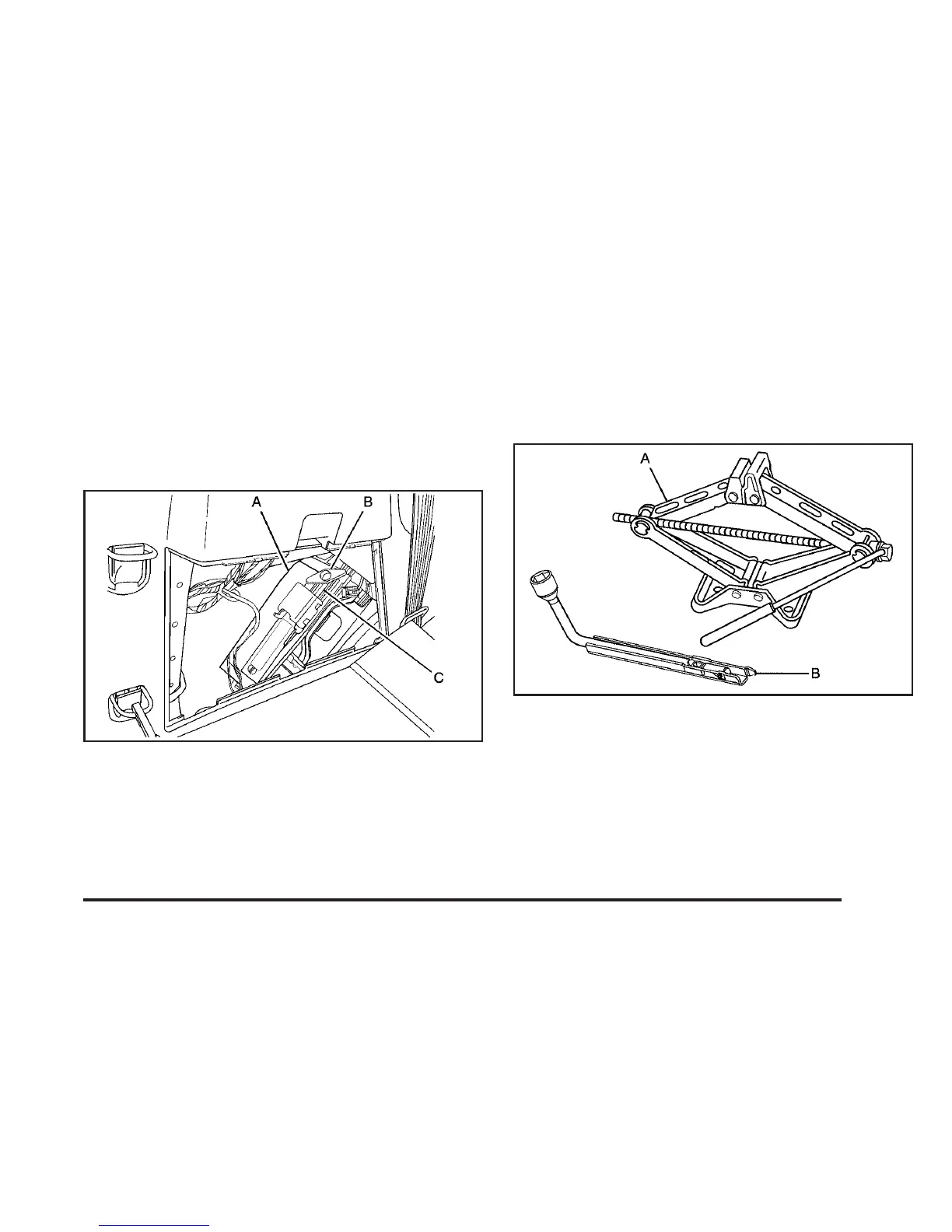

A. Tool Bag
B. Wing Bolt
C. Jack
2. Remove the wing bolt (B) by turning it
counterclockwise
3. Push the jack (C) up out of the holding bracket.
4. Turn the jack on its side, with the bottom facing
toward you.
5. Pull the jack straight out, bottom first.
The tools you will be using include the jack (A) and lug
wrench (B).
5-85
