Step 10
402375www.sauder.com/services
Page 15
B
M
XX
XX
RR
+
SS
å

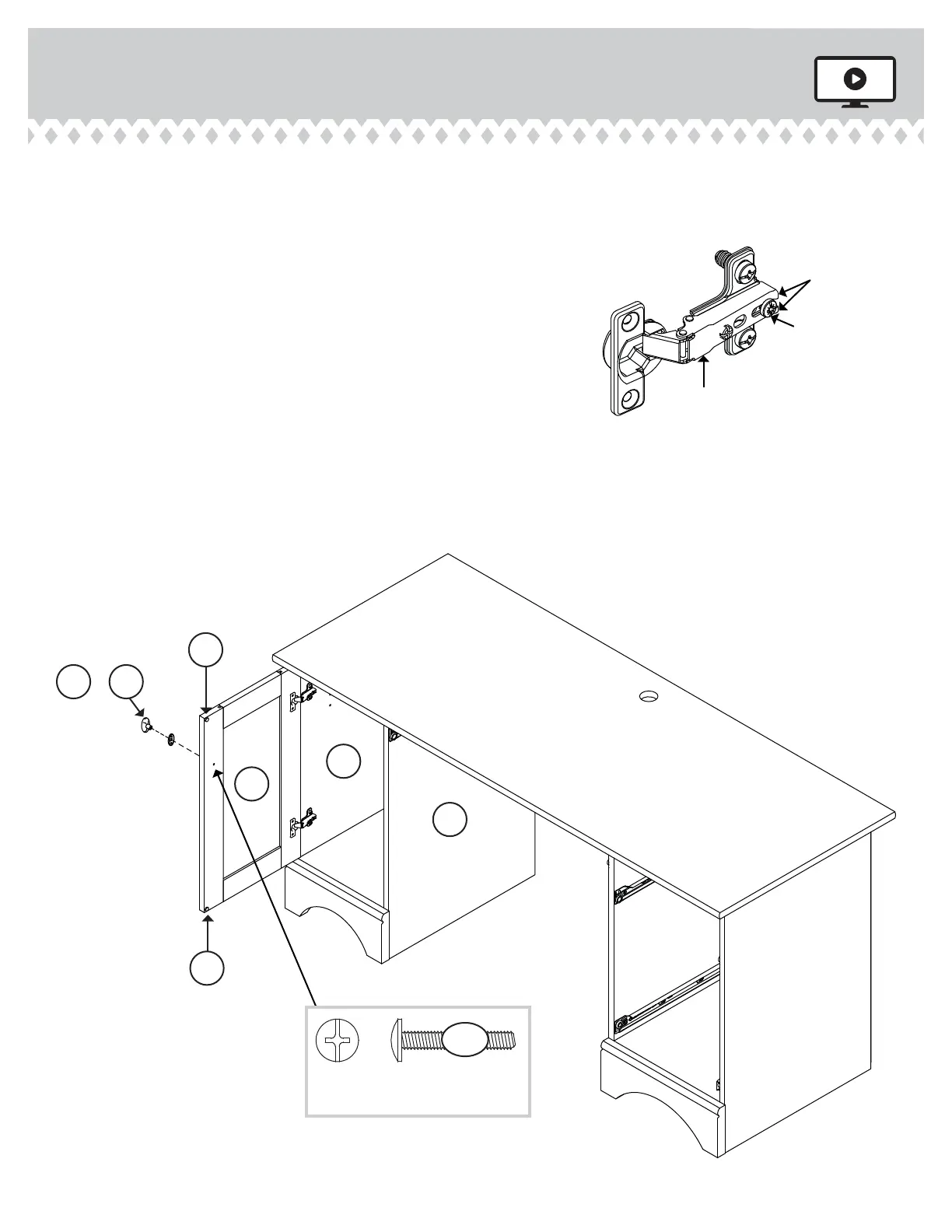

Before fastening the DOOR to your unit, be sure the
mounting screw is against the stops as shown in the right
diagram. If it isn't, loosen the mounting screw to slide it
against the stops. Then tighten the mounting screw.
å
Fasten the DOOR (M) to the LEFT END (B) as shown in the
lower diagram. Use the screws in the HINGES. You should
start each SCREW a few turns before completely tightening
any of them.
å
Fasten a BACKPLATE (RR) and PULL (SS) to the DOOR (M).
Use a GOLD 1" MACHINE SCREW (III).
å
Peel the FELT DISC from the FELT DISC CARD (XX). Stick a
FELT DISC on the DOOR where it comes in contact with
the UPRIGHT (D2).
å
See the next step for DOOR adjustments.
Mounting
screw
Stop
Hinge
GOLD 1" MACHINE SCREW
(1 used in this step)
III
D2
