Step 12
402375www.sauder.com/services
Page 17
N
D707
BLACK 9/16" LARGE HEAD SCREW
(8 used for the DRAWER FRONTS)
DDD
D78
D260
D263
D260
D263
VIEW THE T-SLOT BOX VIDEO
1
2
3
UNFINISHED
å

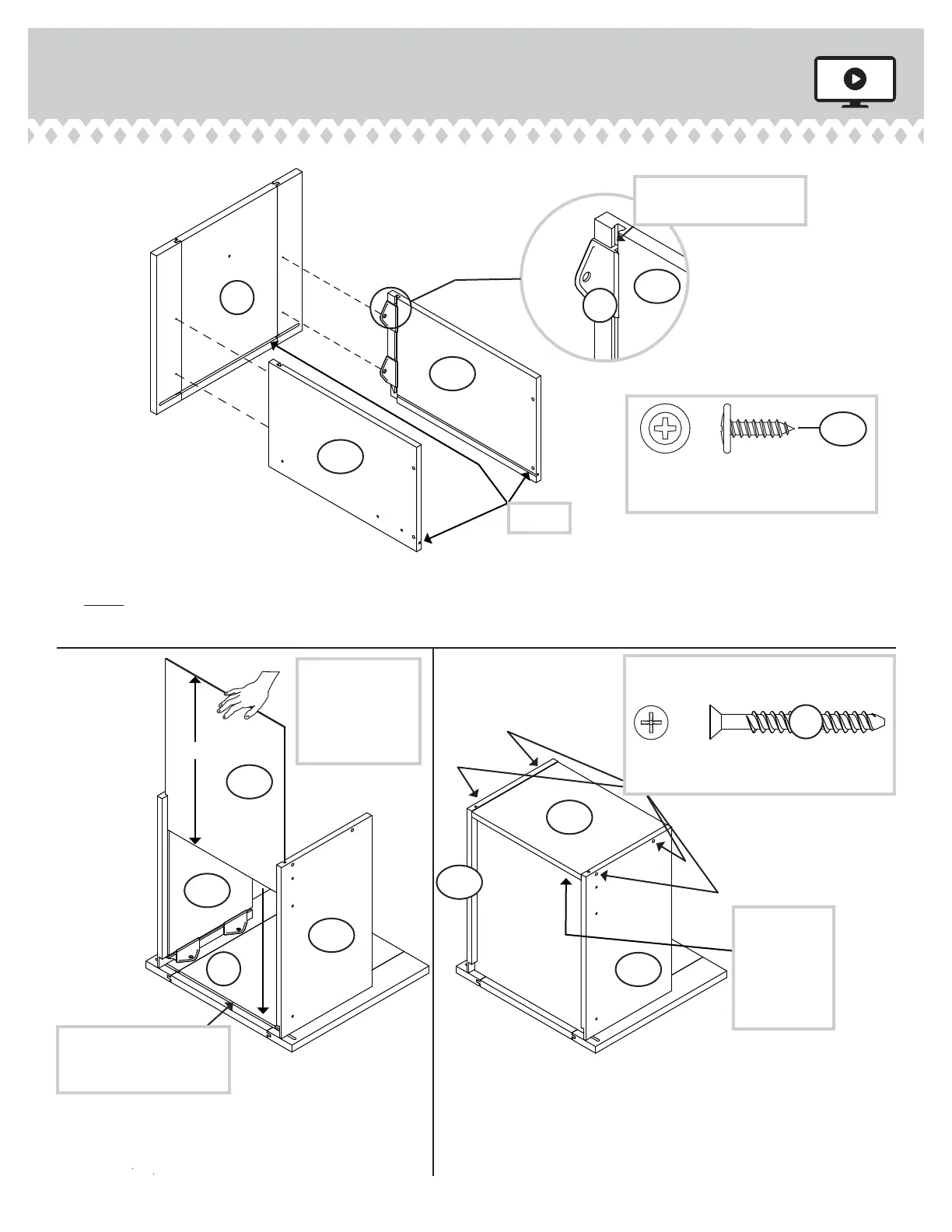

Pull the DRAWER FRONT BRACKETS (TT) apart and slide them into the grooves in the LARGE DRAWER SIDES (D260 and D263).
å
NOTE: The DRAWER FRONT BRACKETS are marked "RH" and "LH" for easy identifi cation.
å
Fasten the LARGE DRAWER FRONT (N) to the DRAWER FRONT BRACKETS (TT). Use four BLACK 9/16" LARGE HEAD SCREWS (DDD).
å
Slide the LARGE DRAWER BOTTOM (D707) into
the grooves in the LARGE DRAWER SIDES (D260
and D263) and LARGE DRAWER FRONT (N).
å
Fasten the LARGE DRAWER BACK (D78) to the LARGE DRAWER SIDES (D260
and D263). Use four BLACK 1-9/16" FLAT HEAD SCREWS (30S).
å
Repeat this step for the small drawer using the SMALL DRAWER
FRONT (R), SMALL DRAWER BACK (D86), SMALL DRAWER
SIDES (D44 and D45), SMALL DRAWER BOTTOM (D716), and
SMALL DRAWER FRONT BRACKETS (UU).
Be sure the DRAWER
BOTTOM inserts into the
DRAWER FRONT groove.
Be sure the
DRAWER
BOTTOM
inserts into
the DRAWER
BACK groove.
With the palm of
your hand, tap
the DRAWER
BOTTOM down
into the groove.
30S
Start each screw a few turns before
completely tightening any of them.
BLACK 1-9/16" FLAT HEAD SCREW
(8 used in this step)
D263
TT
Tap down with your
screwdriver and hammer.
15-1/2"
N
Groove
D260
D263
To Next Page
