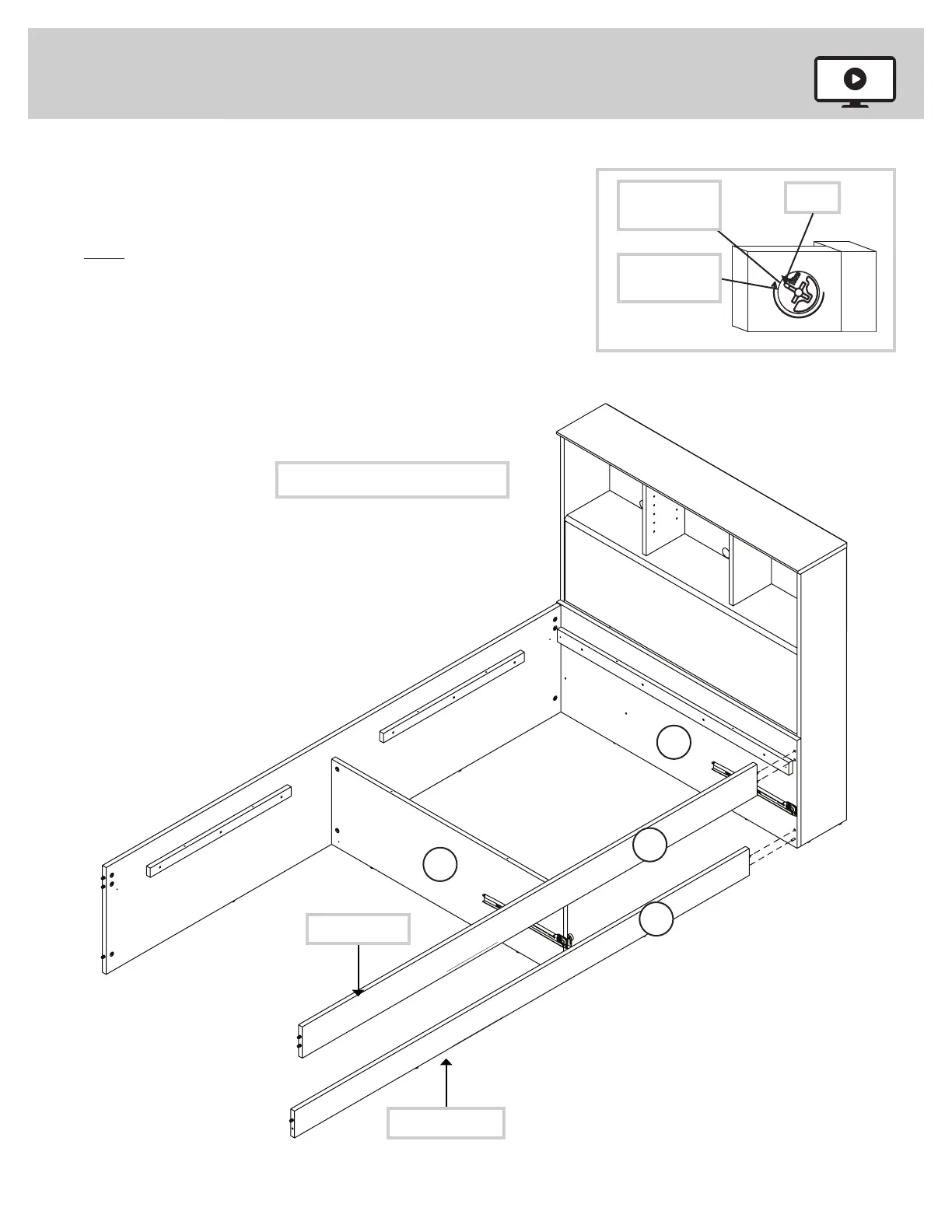

Step 14
å
Fasten the LOWER FRONT PANEL (H2) to the
HEADBOARD (E) and LOWER UPRIGHT (C3). Tighten
two HIDDEN CAMS.
å
NOTE: Be sure the METAL PIN in HEADBOARD inserts
into the hole in the LOWER FRONT PANEL.
å
Fasten the UPPER FRONT PANEL (G2) to the
HEADBOARD (E) and LOWER UPRIGHT (C3). Tighten
three HIDDEN CAMS.
410794 www.sauder.com/servicePage 18
Arrow
Minimum
190 degrees
Maximum
210 degrees
Finished edge
Surface without HIDDEN CAMS
C3
Unfi nished edge
G2
E
Surface without HIDDEN CAMS
H2
Headboard on the RIGHT
To Next Page
