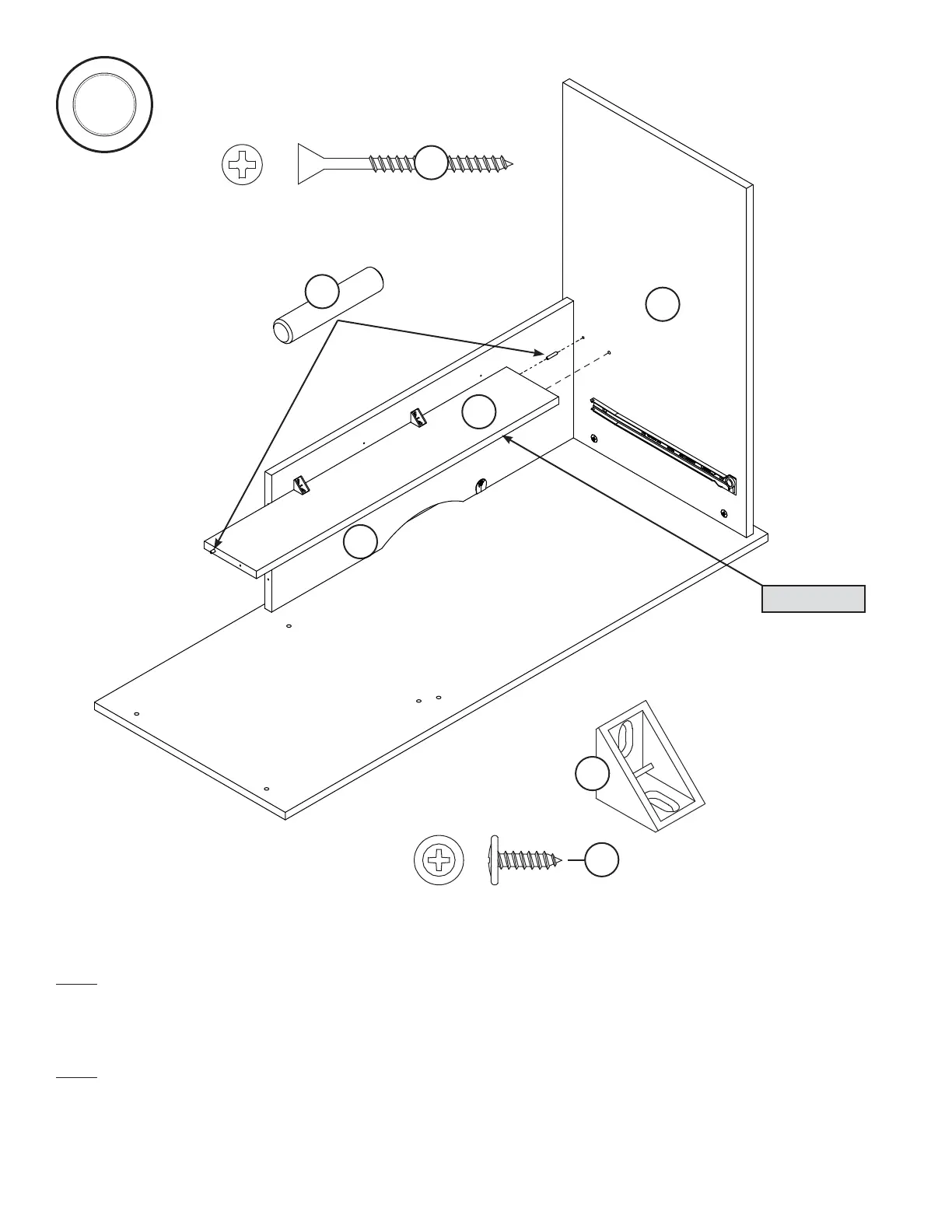

Fasten two ANGLE BRACKETS (HH) to the SHELF (G). Use two BLACK 9/16" LARGE HEAD SCREWS (VV).
NOTE: Be sure the edges of the ANGLE BRACKETS are even with the edge of the SHELF.
Insert two METAL PINS (MM) into the SHELF (G).
Fasten the SHELF (G) to the LEFT END (B). Use a BLACK 1-7/8" FLAT HEAD SCREW (OO).
NOTE: Be sure the METAL PIN (MM) in the SHELF (G) inserts into the hole in the LEFT END (B).
Fasten the SHELF (G) to the MODESTY PANEL (F). Use two BLACK 9/16" LARGE HEAD SCREWS (VV) through the ANGLE
BRACKETS on the SHELF and into the MODESTY PANEL.
BLACK 9/16" LARGE HEAD SCREW
(4 used for the ANGLE BRACKETS)
VV
F
HH
G
MM
Surface with holes
(2 used)
Finished edge
BLACK 1-7/8" FLAT HEAD SCREW
(1 used in this step)
OO
B
