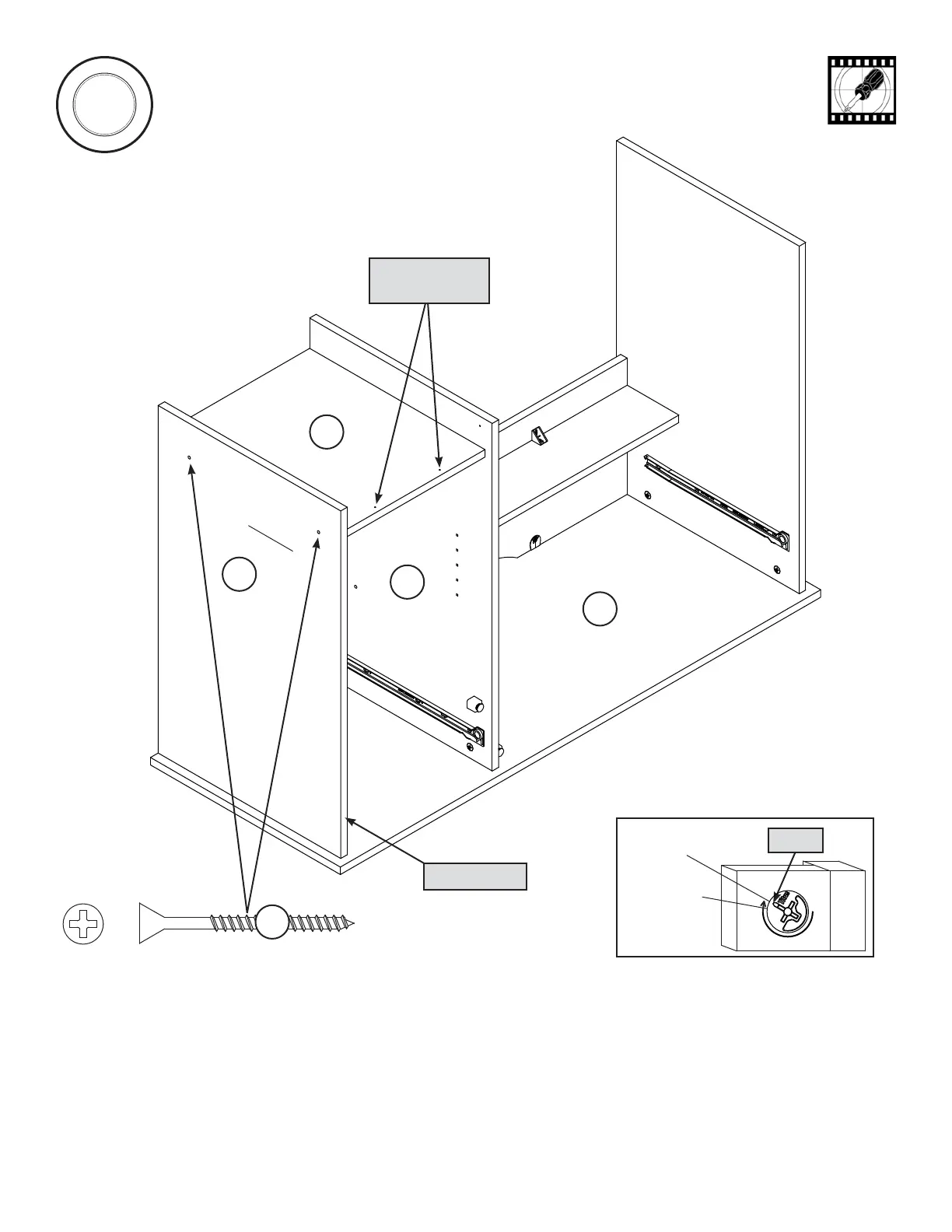

Fasten the BOTTOM (E) to the UPRIGHT (C). Use two BLACK 1-7/8" FLAT HEAD SCREWS (OO).
Fasten the RIGHT END (A) to the TOP (D). Tighten two HIDDEN CAMS.
Fasten the RIGHT END (A) to the BOTTOM (E). Use two BLACK 1-7/8" FLAT HEAD SCREWS (OO).
Surface without
HIDDEN CAMS
Finished edge
Surface with
holes
BLACK 1-7/8" FLAT HEAD SCREW
(4 used in this step)
OO
These holes
must be here.
D
Maximum
210 degrees
Minimum
190 degrees
Arrow
